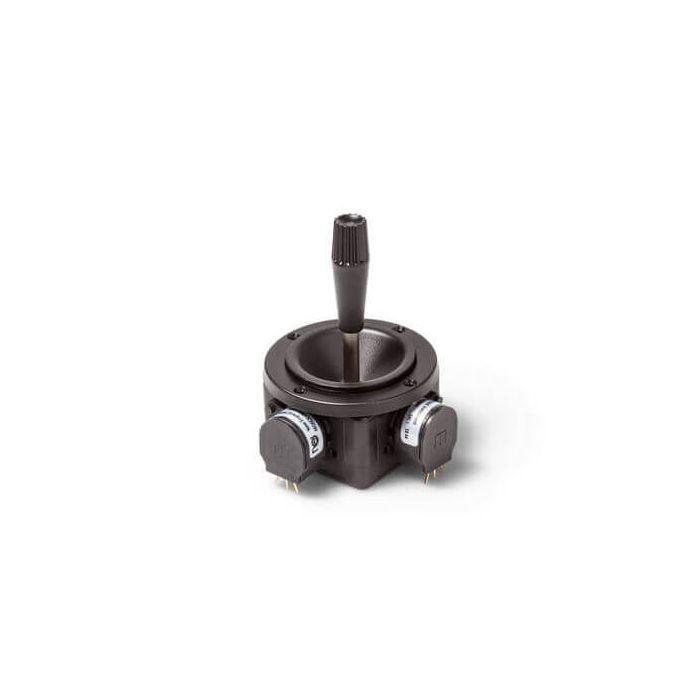

812 Megatron Finger Joystick
Versatile joystick with contactless Hall Sensors or classical potentiometers
812 Features
- Several Handle Options
- Small Size At Low Installation Depth
The 812 series is avialable with severeal different handle options. These small joysticks are recommended for tasks with one to three axes, and where space is limited.
| Manufacturer or Brand | Megatron |
|---|---|
| Mounting Format | OEM, Panel Mount |
| Interface | Analog |
| Housing Colour | Black |
| Certifications | CE, RoHS compliant, Declaration of Conformity |
| Temperature Rating | Operating Temp (-25C to +70C) |
| Warranty | 1 Year Limited Warranty |
| Lifetime | 5 million cycles |
| Angle of Movement X-,Y-Axis | 56ﾰ (+/-28ﾰ from center) |
| Angle of Movement Z-Axis | 90ﾰ (+/-45ﾰ from center) |
| Axes | 1 to 3 |
| Expected Lifetime | 5 million cycles |
| Installation Depth | Small size at low installation depth |
| Interface / Connection | Analog |
| Operating Temperature | (-25ﾰC to +70ﾰC) |
| Output Voltages | 0..5 V / 0,5..4,5 V / 0,25..4,75 V |
| Resolution | Infinite |
| Return Mechanism | Spring Return |
| Return to Center Accuracy | +/-2% |
| Sensor | Potentiometers or Hall |
| Storage Temperature | -40ﾰC..+70ﾰC |
| Supply Voltage | 5 VDC ﾱ10% |
| Technology | Hall-Effect or Potentiometric |
| Torque | 0,049 Nm |
- Several Handle Options
- Small Size At Low Installation Depth
The Megatron 812
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the Megatron 812 Finger Joystick are listed below:-
These are just some of the applications for the Megatron 812 Finger Joystick The potential applications extend further than those shown above. For further information about the Megatron 812 Finger Joystick
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Broadcast Consoles
- Computer Consoles
- Industrial Automation
- Marine Consoles
- Medical Equipment
- Smart Factory
- Sound Editing Desks
- Video Editing Desks
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the Megatron 812 Finger Joystick to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the Megatron 812 Finger Joystick, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Interface
- Processor
- Memory
- Storage
- Connections
- Operating System
The Megatron 812 Finger Joystick has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, Megatron 812 Finger Joystick, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
