CSB100-895 FANLESS CSB100-895 CUSTOMISABLE

ASB200-915 iBASE Industrial Computer

ASB200-915 iBASE Industrial Computer

CSB110-902 iBASE Industrial Computer

CSB110-902 iBASE Industrial Computer

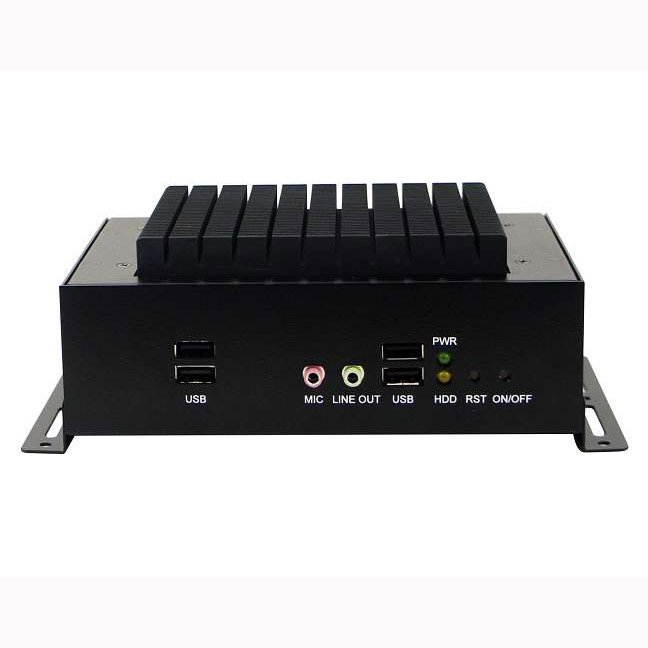

CSB100-895 iBASE Industrial Computer

CSB100 895 IBASE Single Board Computer

CSB100-895 Features

  • Fanless System Supports Ibase Ib895 3.5" Disk-Size Sbc
  • On Board Intel Atom Processor D2550, 1.86GHz
  • ISMART- For Auto-Scheduler and Power Resume
  • 6X USB2.0 Ports
  • Supports 2X Mini PCI-E (1X Full-Size & 1X Half Size )


The CMI211-250-956 is a Mini-ITX system designed for IBASE's own MI956F motherboard than runs 3rd Generation Intel Core mobile processors. This platform is suitable for applications requiring advanced performance in both computing and graphics quality such as those in the gaming, POS, digital signage and server market.

Specification
Manufacturer or Brand iBASE
Mounting Format Desktop, Free Standing, Wall Mount
Form Factor Fanless System
Certifications CE / LVD / FCC Class B / CCC
Operating Temperature 0C~45C (32CF~113CF)
Storage Temperature Rating: -20C ~ 80C (-4CF~176CF)
Humidity 5%-90% @ 45C, (non-condensing)
Dimensions 113.6mm (W) x 172.4mm (D) x 52.4mm (H)
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info CSB100-895 Steel Chassis with IB895 3.5-inch Disk Size SBC, Intel Atom D2550(1.86GHz), 1x 2GB DDR3 memory, 320GB 2.5タン HDD, desktop stand & mounting brackets, 60W power adaptor (RoHS)
Chassis Color Black
Construction Aluminum & Steel
Form Factor FILTER Fanless System
Front Panel External I/O 4x USB 2.0 ports 1x Line-out 1x Mic-in 1x Power LED 1x HDD LED 1x Power on/off button 1x Reset button
Mounting Desktop or wall mount (wall mount kit included)
Power Supply Optional 60W power adaptor
Rear Panel External I/O 2x USB2.0 ports 1x DVI-I connectors 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 2x RJ45 GbE connectors 1x DC jack
Shock Operating : 20G / 11ms Non-operating : 40G / 11ms
Storage 1x 2.5" HDD or SSD
System MainBoard IB895
System Memory 1x 2GB DDR3-1333 SO-DIMM, Max. 4GB (Intel Atom D2550)
System Speed 1.86GHz
Vibration Operating : 0.25Grms / 5~500Hz Non-operating : 1Grms / 5~500Hz
  • Fanless System Supports Ibase Ib895 3.5" Disk-Size Sbc
  • On Board Intel Atom Processor D2550, 1.86GHz
  • ISMART- For Auto-Scheduler and Power Resume
  • 6X USB2.0 Ports
  • Supports 2X Mini PCI-E (1X Full-Size & 1X Half Size )
  • Supports 1X 2.5" SATA HDD Device
  • Wall Mount Kit Included
  • 12V~24V DC Wide Range Power Input
  • 12V~24V DC Wide-Range Power Input
The iBASE CSB100-895 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE CSB100-895 Industrial Computer are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE CSB100-895 Industrial Computer The potential applications extend further than those shown above. For further information about the iBASE CSB100-895 Industrial Computer or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE CSB100-895 Industrial Computer on our website.

If your application requires unusual or individual modifications for the iBASE CSB100-895 Industrial Computer, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE CSB100-895 Industrial Computer has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE CSB100-895 Industrial Computer, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
