CSB200-897 iBASE Industrial Computer
The Fanless CSB200-897 system comes with the IB897 3.5-inch SBC and integrates the Intel Atom E3845 processor that featuring 22nm microarchitecture and 3-D Tri-Gate transistors. With unparallel reliability, the 1.91GHz processor allows the CSB200-897 to operate in wide temperatures at -30 °C to +60 °C in harsh industrial environments for 24/7 operation. The CSB200-897 is ideal for IOT (Internet of Things), factory automation, In-vehicle and other rugged applications that could utilize its 12V to 24V DC wide-range power input.
CSB200-897 Features
- Fanless System Supports Ibase Ib897 3.5" Disk-Size Sbc
- Onboard Intel Atom Processor E3845 Soc, 1.91GHz
- ISMART- For Auto-Scheduler and Power Resume
- 1X USB 3.0 and 3X USB 2.0
- Wide Temperature Operating -30C~60C
- Supports 2X Mini PCI-E (1X Full-Size & 1X Half Size )
- Supports 1X 2.5" SATA HDD Device Or Ssd
- Wall Mount Kit Included
- 12V~24V DC Wide-Range Power Input
Request for Quote (RFQ)
Product Type
Format
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE / LVD / FCC Class B / CCC
Dimensions
172mm (W) x 111.6mm (D) x 52mm (H)
Auto Control and Monitoring
256 segments, 0, 1, 2...255 (sec/min)
Build-In Graphic Controller
Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color
Black
Construction
Aluminum & Steel
CPU Package
rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Expansion Slots
1x Mini PCI-E(x1) slot for Wi-Fi, Bluetooth options
Form Factor FILTER
Fanless System

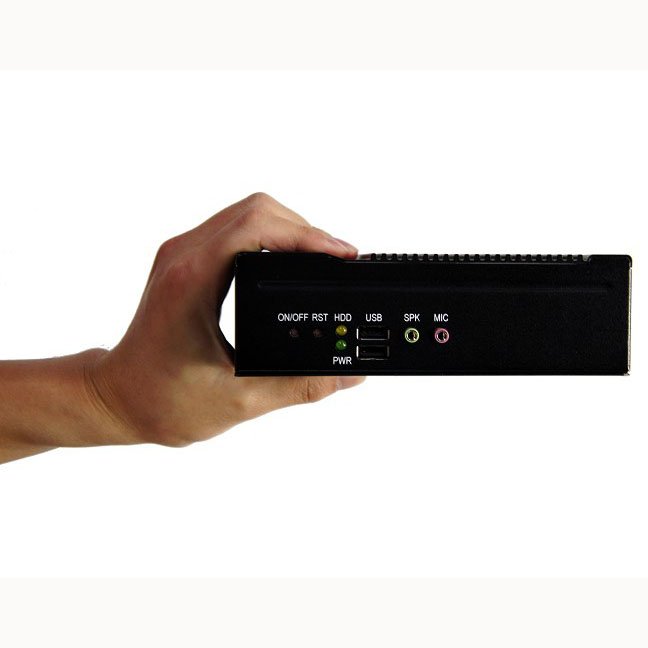

Front Panel External I/O
1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB2.0 ports 1x Line-out 1x Mic-in
Mounting
Desktop or wall mount (wall mount kit included)
Power Supply
Optional 60W power adaptor

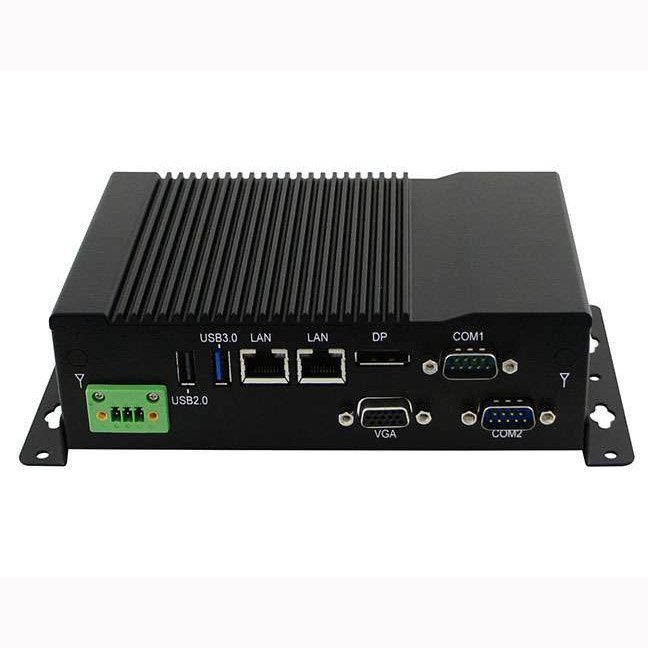

Rear Panel External I/O
1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 2x RJ45 GbE connector 1x DC jack with lock or terminal block (12V~24V DC)
Shock
Operating : 20G / 11ms Non-operating : 40G / 11ms
Storage
1x 2.5" HDD or SSD
System MainBoard
IB897-I45P
System Memory
2x 2GB DDR3L-1333 SO-DIMM, Max. 8GB
System Speed
1.91GHz
Vibration
Operating : 0.25Grms / 5~500Hz Non-operating : 1Grms / 5~500Hz
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
-10C~ 50C (14CF~122CF) (With HDD) -30C~60C (22CF~140CF) (With SSD)
Ordering Info
CSB200-897 Fanless chassis with IB897-I45P, Intel Atom E3845 SoC (1.91GHz), 2x COM, 2x 2GB DDR3L memory, 2.5" 320GB SATA HDD (w/o 60W power adaptor) CSB200-897-IT Fanless chassis with IB897-I45P, Intel Atom E3845 SoC (1.91GHz), 2x COM, 2x 2GB DDR3L memory, 2.5" 64GB industrial-grade SSD (w/o 60W power adaptor)
Power Input
Wide Range
Processor
Intel
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
The CSB200-897 iBASE Industrial Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the CSB200-897 is commonly used:
These examples highlight the versatility of the CSB200-897 iBASE Industrial Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Industrial Computer fits your specific needs, please contact us.
The CSB200-897 iBASE Industrial Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, CSB200-897 iBASE Industrial Computer, must be presented to RUGGED in the United Kingdom.
For more information about the CSB200-897 iBASE Industrial Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the CSB200-897 iBASE Industrial Computer?
If you have any questions about the iBASE CSB200-897 please get in touch today, our team of technical experts are ready to assist you.
