Digi Connect Sensor XRT-M with NEMA Enclosure
Digi Connect Sensor XRT-M M210 (CSENSE-M210) is built for deployments where access is limited, conditions are brutal, and failure is not acceptable.
Housed in an IP68 and NEMA 6P-rated enclosure, this battery-powered remote monitor is designed for long-term operation in harsh outdoor and industrial environments. It delivers dual-mode LTE-M and NB-IoT connectivity across global networks, keeping critical data flowing from even the most remote sites.
With four configurable analog inputs supporting 4–20 mA and 0–10 VDC, plus a digital and pulse counter input up to 2 kHz, it captures accurate field data without compromise. Six configurable power outputs provide 3.3V to 24V DC, allowing you to power sensors directly and simplify installations. Modbus RTU and ASCII support connect up to four devices, while native MQTT integration pushes data straight to Digi Axess or your broker.
Powered by dual lithium batteries, it delivers up to five years of operation with ultra-low energy consumption.
This is fully sealed, mission-critical monitoring for environments that destroy standard equipment.
CSENSE-M210 Features
- IP68 NEMA 6P Waterproof Enclosure
- ~5 Year Battery Life (Dual 12Ah)
- Dual-Mode LTE-M/NB-IoT Cellular
- 4 Configurable Analog Inputs (4-20mA Or 0-10VDC)
- Native MQTT And Modbus Support
- Class 1 Division 2 Certified
- Managed Via Digi Axess Platform
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Country Of Manufacture
United States
Cellular Mode
Dual-mode LTE-M/NB-IoT
4G Bands
B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85
2G Bands
B2, B3, B5, B8
SIM Slots
1x standard size (2FF)
Antenna
Internal antenna
MQTT Support
Direct-to-broker or Digi Axess and direct-to-broker
External Power Input
9 VDC to 30 VDC
Battery
Dual 7.2V, 12Ah lithium thionyl chloride, non-rechargeable, replaceable
Battery Life
~5 years at 2 reads/transmits per day
Sleeping Power Draw
115 microwatts
Peak Transmit Power
14.4 watts
Modbus Support
Modbus RTU and ASCII, up to 4 sensors
Analog Inputs
4x configurable as 4-20mA or 0-10 VDC
Input Voltage Range
0 to 10.5 V
Input Current Range
4 to 22 mA
ADC Resolution
12-bit
Digital Input
1x digital input or pulse counter input
Output Power Ports
6
Output Voltage Options
3.3, 5, 15, 24 VDC
Max Current Output
200 mA
Operating Temperature
−35°C to 70°C (−31°F to 158°F)
Storage Temperature
−40°C to 85°C (−40°F to 185°F)
Relative Humidity
90%

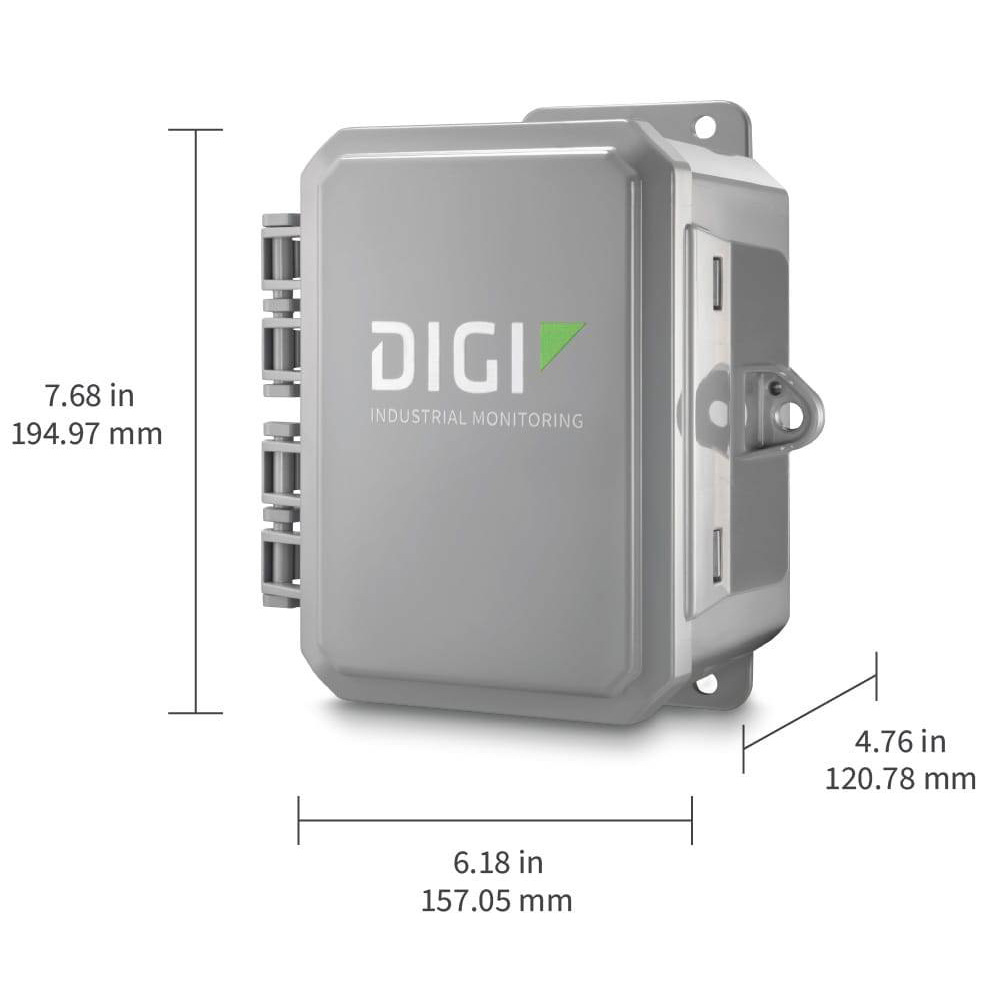

Dimensions (L x W x H)
194.97 mm x 157.05 mm x 120.78 mm (7.68 in x 6.18 in x 4.76 in) excluding glands
Weight
1.36 kg (3 lb)
Safety Approvals
UL 60950-22, UL/IEC/EN 62368-1, UL 121201 C1D2, CSA C22.2 No. 213-17
Warranty
3-year
The Digi Connect Sensor XRT-M with NEMA Enclosure is designed and engineered for use in demanding environments where reliability, durability are essential. The CSENSE-M210 supports a wide range of industries and operational applications.
Common deployment industries include: Agriculture, Construction, Energy and Utilities, Industrial Manufacturing, Natural Resources and Mining, Oil and Gas.
Across these sectors, the CSENSE-M210 is typically used in applications such as Asset Tracking And Management, ATEX And Hazardous-Area Data Capture, Field Data Capture And Reporting, Predictive Maintenance And Condition Monitoring, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the CSENSE-M210 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the CSENSE-M210 is appropriate for your specific application, please contact us.
The Digi Connect Sensor XRT-M with NEMA Enclosure comes with a 3-Year Product Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Digi Connect Sensor XRT-M with NEMA Enclosure, must be presented to RUGGED in the United Kingdom.
For more information about the Digi Connect Sensor XRT-M with NEMA Enclosure or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Digi Connect Sensor XRT-M with NEMA Enclosure, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Digi International CSENSE-M210 or need a custom Industrial Sensor solution designed specifically for you, our team of technical experts are ready to assist you.
