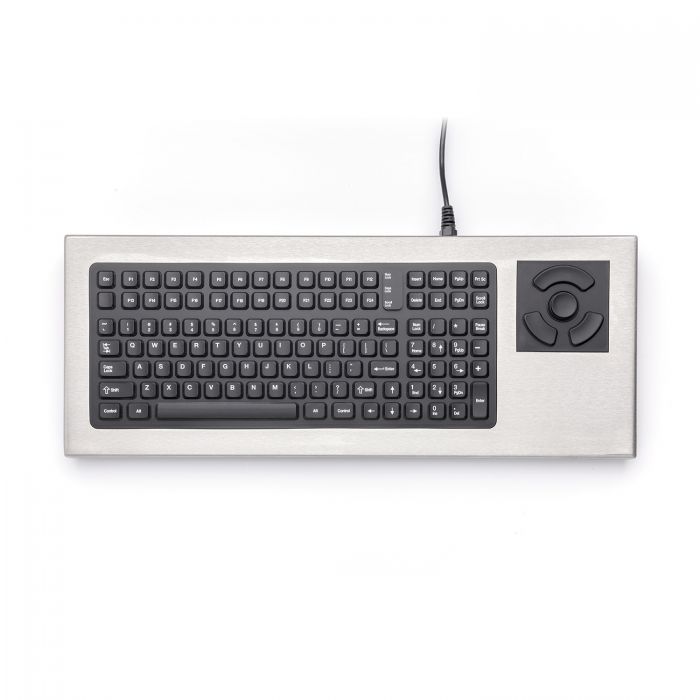

iKey DT-2000-FSR Desktop Rugged Keyboard With FSR

The iKey DT-2000-FSR is a desktop rugged keyboard designed for industrial environments requiring durable, sealed input solutions. Constructed with a stainless steel housing and industrial silicone rubber keypad, it provides robust resistance to dust, moisture, and contamination. Its integrated Force Sensing Resistor offers precise cursor control without separate pointing devices, enhancing operational efficiency.

Supporting USB and PS/2 interfaces and multiple layouts, the keyboard adapts easily across systems. Certified to IP65, NEMA 4X and EN60079 for hazardous locations, it withstands vibration and shock pulses in line with MIL-STD-810G standards. Operating from -20°C to 60°C, it suits continuous-duty applications in harsh industrial conditions. With a 114-key layout including dual function key rows, the DT-2000-FSR enables rapid command input for field-ready workflows.

DT-2000-FSR Features

  • Highly-Rugged Stainless Steel Case
  • 114-Key Functionality
  • Integrated Force Sensing Resistor FSR
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

Stainless Steel

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface,Backlight Colour,Custom Logo,PU Coating,Matt Silicone Coating,Anti-Bacterial Coating,Mounting Options

Dimensions

20.25" x 7.88" x 1.80" (w-h-d) 514.4mm x 200.2mm x 45.7mm

Housing Colour

Stainless Steel

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Certified European Standards

EN60079-0:2009, EN60079-11:2007 and EN60529:1991 + A1:2000

Compatibility

All Windows and Macintosh Operating Systems

Entity Parameters

Ui = 6.51V, Ii = 730mA, Pi = 1.01W, Ci = 63.23, Li = 2.41uf

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Hazardous Location Ratings

II 3 G Ex ic IIB T4 Ta = 60, IP65

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 6.35 oz +/- 1.06 oz (180g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

114

Pointing Device

Force Sensing Resistor

Power

KEYBOARD: 50mA@5V (from Keyboard port) HULAPOINT POINTER: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port)

Product Weight

6.75 lbs +/- 0.10 lbs (3.06 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

135g (+/- 5g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

The iKey DT-2000-FSR Desktop Rugged Keyboard With FSR is designed and engineered for use in demanding environments where reliability, durability are essential. The DT-2000-FSR supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Offshore Operations, Oil and Gas.

Across these sectors, the DT-2000-FSR is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the DT-2000-FSR across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the DT-2000-FSR is appropriate for your specific application, please contact us.

The iKey DT-2000-FSR Desktop Rugged Keyboard With FSR comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey DT-2000-FSR Desktop Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey DT-2000-FSR Desktop Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey DT-2000-FSR Desktop Rugged Keyboard With FSR, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey DT-2000-FSR or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
