IB898 iBASE Single Board Computer

IB898 IBASE Single Board Computer

IB898 Features

  • Onboard Intel Atom E3825 DC /E3815 Sc Soc, 1.33/1.46GHz
  • 1X DDR3L-1066 So-Dimm, Max. 4Gb
  • Supports VGA, Displayport and 24-Bit Dual Channel Lvds
  • 1X Intel I210It PCI-E Gigabit Lan
  • Watchdog Timer, Digital I/O, Msata, ISMART 3.1

Manufacturer: iBASE

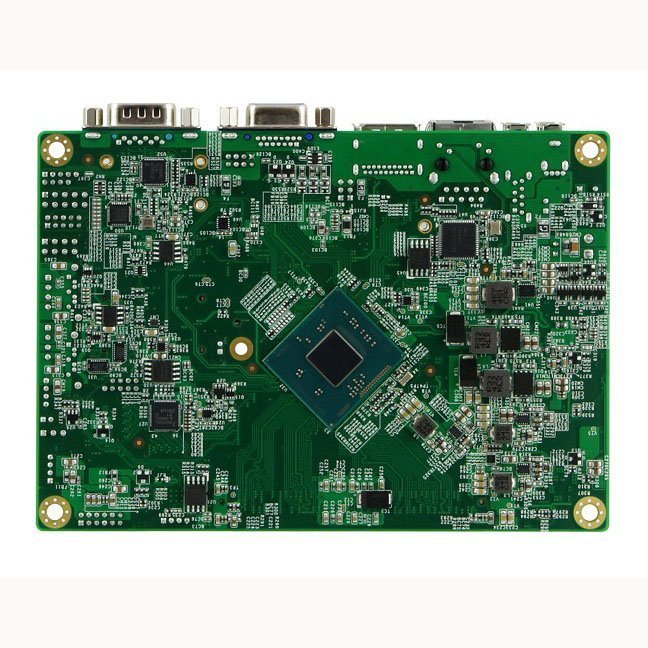

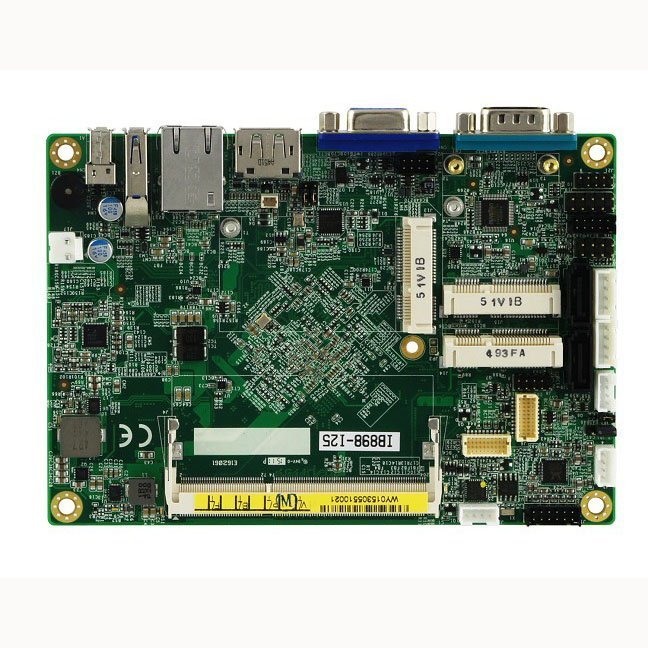

The IB898 Intel Atom E3825/E3815 SoC 3.5-inch Disk Size SBC
Specification
Manufacturer or Brand iBASE
Mounting Format OEM
Form Factor CPU Card
Processor Intel
Certifications RoHS Compliant, CE
Operating Temperature -40C~85C (-40CF~185CF)
Storage Temperature -40C~90C (-40CF~194CF)
Humidity 90% Humidity Resistant (non-condensing @ 60C)
Dimensions 102mm x 147mm (4タワ x 5.8タワ)
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info IB898-I25 3.5タン, Intel Atom E3825 (1.33GHz), PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART, wide temperature support IB898-I15 3.5タン, Intel Atom E3815 (1.46GHz), PCI-E GbE LAN, CRT, DisplayPort & LVDS (24-bit LVDS dual channel), mSATA, iSMART 3.1, wide temperature support HSIB898-BGA-A Heatsink for IB898 HSIB898-BGA-1 Heat spreader for IB898
Audio Intel Atom SoC built-in HD Audio controller + Realtek ALC269QHD codec w/ class-D speaker amplifier
BIOS AMI
Display Interface Supports CRT, DisplayPort, and 24-bit dual channel LVDS
Expansion Slots 3x Mini PCI-E (2x full-sized, 1x half-sized)
Form Factor FILTER 3.5" SBC
H/W Monitor Yes
I/O Chipset Nuvoton NCT5523D 1x RS-232/422/485(Jumperless selection) 1x RS232, 2x SATA II
LAN Connector 1x RJ-45 on board
LAN Controller 1x Intel I210IT PCI-E Gigabit LAN
Others Digital I/O, +12V DC-In. iSMART 3.1 Wide temperature support
SSD 1x mSATA
System Memory 1x DDR3L-1066 SO-DIMM, Max 4GB (Non-ECC)
System Speed 1.33GHz

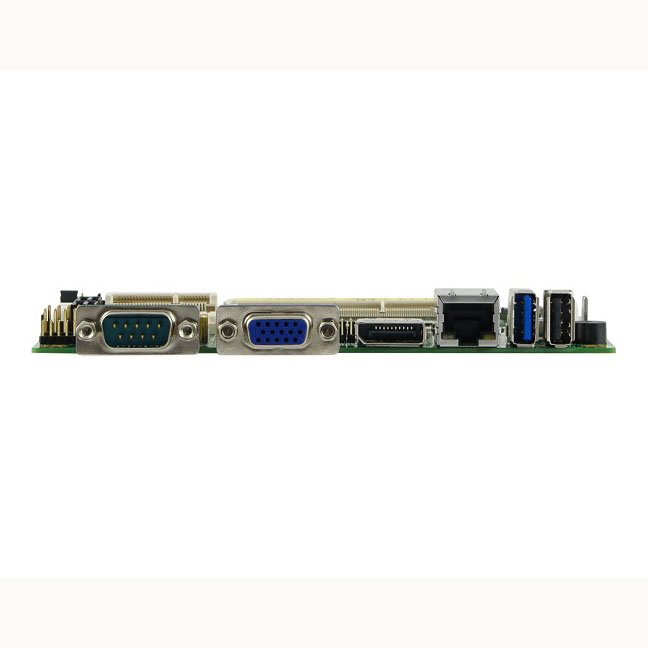

USB 1 port on board (USB 3.0) 1 port on board 2 ports via pin header (USB 2.0)
VGA Controller Intel Atom SoC integrated Gen7 4EUs graphics
VGA Memory Shared memory
Watchdog Timer 256 levels
  • Onboard Intel Atom E3825 DC /E3815 Sc Soc, 1.33/1.46GHz
  • 1X DDR3L-1066 So-Dimm, Max. 4Gb
  • Supports VGA, Displayport and 24-Bit Dual Channel Lvds
  • 1X Intel I210It PCI-E Gigabit Lan
  • Watchdog Timer, Digital I/O, Msata, ISMART 3.1
  • 4X USB 2.0, 1X USB 3.0, 2X Com, 2X SATA Ii,
  • 3X Mini PCI-E Slots (2X Full-Size, 1X Half Size)
  • Wide Operating Temperature Support
The iBASE IB898 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE IB898 Single Board Computer are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE IB898 Single Board Computer The potential applications extend further than those shown above. For further information about the iBASE IB898 Single Board Computer or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE IB898 Single Board Computer on our website.

If your application requires unusual or individual modifications for the iBASE IB898 Single Board Computer, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE IB898 Single Board Computer has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE IB898 Single Board Computer, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
