IB903 iBASE Single Board Computer

IB903 IBASE Single Board Computer

IB903 Features

  • Original OEM Module
  • Rohs Compliant, CE
  • Supports VGA, Displayport and 24-Bit Dual Channel Lvds
  • 1X Intel I210It PCI-E Gigabit Lan
  • Watchdog Timer, Digital I/O, Msata, ISMART 3.1

Manufacturer: iBASE

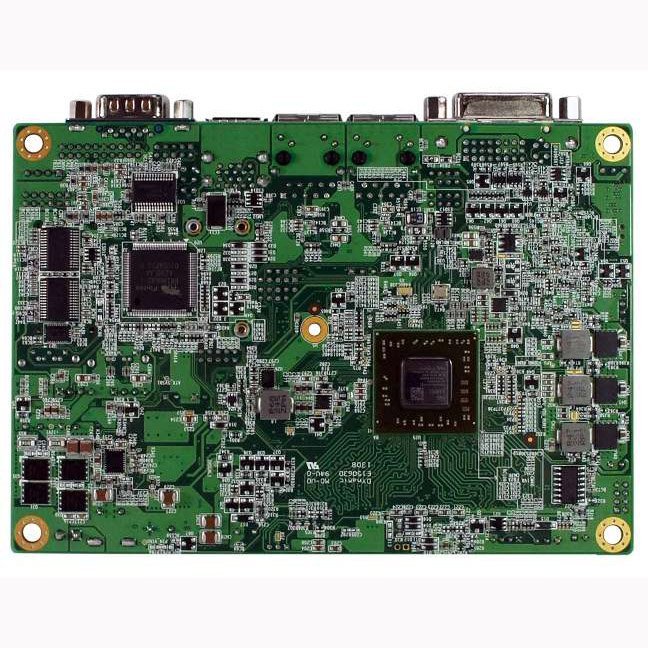

The IB903 is a 3.5-inch SBC utilizing the Embedded G-series system-on-chip (SoC) that is based on the new-generation x86 “Jaguar” CPU architecture and Radeon HD 8000-series graphics. The IB903 single board computer is designed for embedded applications, such as factory automation and industrial control, digital signage players, network appliances and gaming systems.
Specification
Manufacturer or Brand iBASE
Mounting Format OEM
Form Factor CPU Card
Processor Intel
Certifications RoHS Compliant, CE
Operating Temperature 0C~60C (32CF~140CF)
Storage Temperature -20C~80C (-4CF~176CF)
Humidity 90% Humidity Resistant (non-condensing @ 60C)
Dimensions 102mm x 147mm (4" x 5.8")
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info IB903F-Q2G AMD Embedded G-series GX-420CA SoC (2.0GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB903F-Q15 AMD Embedded G-series GX-415GA SoC (1.5GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB903F-16 AMD Embedded G-series GX-217GA SoC (1.65GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB68A Cable kit for IB903F series, w/ SATA + power cable, COM, USB, power cable HSIB903-BGA Heatsink w/ fan for IB903F series HSIB903-BGA-1 Heat spreader for IB903F series
Audio AMD Embedded G-series SoC built-in audio controller w/ Realtek ALC269Q-VC2-GR HD codec w/class-D speaker amplifier
BIOS AMI
Display Interface Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots 2x Mini PCI-E
Form Factor FILTER 3.5" SBC
H/W Monitor Yes
I/O Chipset Fintek F81846AD-I 1x RS232/422/485 (Jumperless selection), 3x RS232, 2x SATAIII
LAN Connector 2x RJ-45 on board
LAN Controller 2x Realtek RTL8111G-CG PCI-E Gigabit LAN
Others Digital I/O, +9V~+24V DC In, iSMART
SSD 1x mSATA (Thru Mini PCI-E)
System Memory 1x DDR3/ DDR3L SO-DIMM, Max. 8GB (Non-ECC)
System Speed 1.33GHz
USB 2 ports USB 3.0 onboard 4 ports USB 2.0 via pin header
VGA Controller AMD Embedded G-series SoC built-in GPU (AMD Radeon HD8000 series)
VGA Memory Shared memory
Watchdog Timer 256 levels
  • Original OEM Module
  • Rohs Compliant, CE
  • Supports VGA, Displayport and 24-Bit Dual Channel Lvds
  • 1X Intel I210It PCI-E Gigabit Lan
  • Watchdog Timer, Digital I/O, Msata, ISMART 3.1
  • 4X USB 2.0, 1X USB 3.0, 2X Com, 2X SATA Ii,
  • 3X Mini PCI-E Slots (2X Full-Size, 1X Half Size)
  • Wide Operating Temperature Support
The iBASE IB903 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE IB903 Single Board Computer are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE IB903 Single Board Computer The potential applications extend further than those shown above. For further information about the iBASE IB903 Single Board Computer or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE IB903 Single Board Computer on our website.

If your application requires unusual or individual modifications for the iBASE IB903 Single Board Computer, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE IB903 Single Board Computer has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE IB903 Single Board Computer, must be presented to us here in the UK.
