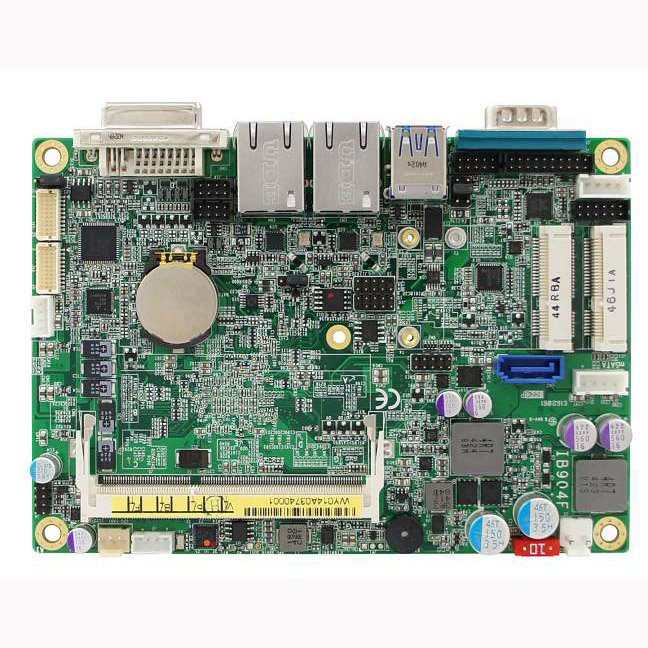

IB904 iBASE Single Board Computer
The IB904 AMD Embedded G-series SoC 3.5″ Disk-Size SBC
IB904 Features
- Onboard Amd Embedded G-Series Soc
- 1X DDR3/ DDR3L So-Dimm, Max. 8Gb
- Supports DVI-I and 24-Bit Dual Channel Lvds
- 2X Realtek Rtl8111G-Cg PCI-E Gigabit Lan
- Watchdog Timer, Digital I/O, Msata, ISMART
- 2X USB3.0, 4X USB 2.0, 4X Com, 2X SATA Iii
Request for Quote (RFQ)
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
AMD Embedded G-series SoC built-in audio controller w/ Realtek ALC269Q-VC2-GR HD codec w/class-D speaker amplifier
BIOS
AMI
Display Interface
Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 1x RS232/422/485 (Jumperless selection), 3x RS232, 2x SATAIII
LAN Connector
2x RJ-45 on board
LAN Controller
2x Realtek RTL8111G-CG PCI-E Gigabit LAN
Others
Digital I/O, +9V~+24V DC In, iSMART
SSD
1x mSATA (Thru Mini PCI-E)
System Memory
1x DDR3/ DDR3L SO-DIMM, Max. 8GB (Non-ECC)
USB
2 ports USB 3.0 onboard 4 ports USB 2.0 via pin header
VGA Controller
AMD Embedded G-series SoC built-in GPU (AMD Radeon HD8000 series)
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB904F-Q2G AMD Embedded G-series GX-420CA SoC (2.0GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB904F-Q15 AMD Embedded G-series GX-415GA SoC (1.5GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB904F-16 AMD Embedded G-series GX-217GA SoC (1.65GHz) 3.5-inch Disk Size SBC w/ DVI-I & LVDS (24-bit dual channel), dual PCI-E Gigabit LAN, mSATA, iSMART IB68A Cable kit for IB903F series, w/ SATA + power cable, COM, USB, power cable HSIB904-BGA Heatsink w/ fan for IB904F series HSIB904-BGA-1 Heat spreader for IB904F series
Processor
AMD
Storage Temperature
-40C~80C (-40CF~176CF)
The IB904 iBASE Single Board Computer is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the IB904 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the IB904 iBASE Single Board Computer across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Single Board Computer fits your specific needs, please contact us.
The IB904 iBASE Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, IB904 iBASE Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the IB904 iBASE Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the IB904 iBASE Single Board Computer?
If you have any questions about the iBASE IB904 please get in touch today, our team of technical experts are ready to assist you.
