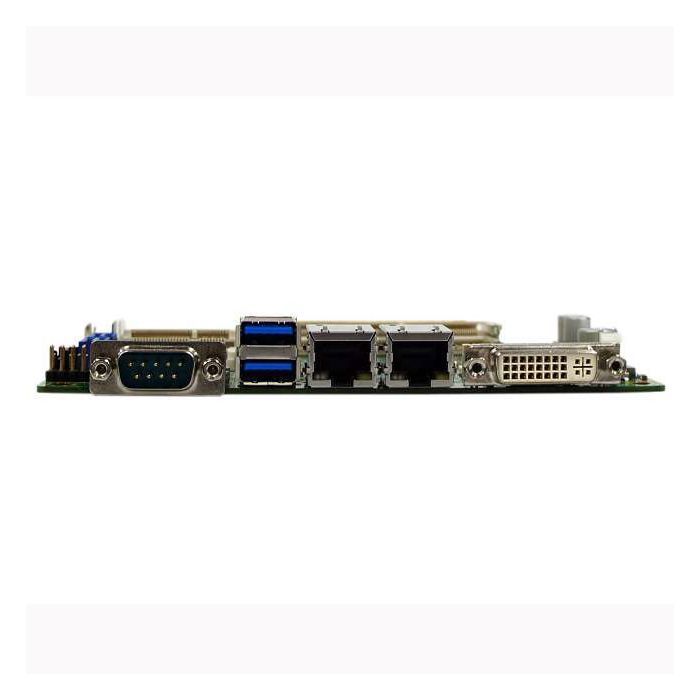

iBASE IB908 Industrial Single Board Computer
For teams working across industrial environments requiring compact and dependable computing, the iBASE IB908 Industrial Single Board Computer offers a robust 3.5-inch platform built around a 4th Generation Intel Core U-series processor. This small form factor SBC is dust-sealed and engineered for continuous-duty use, supporting dual DDR3L memory slots up to 16GB and dual mSATA storage interfaces for flexible expansion. Networking is supported by dual PCI-E Gigabit LAN ports, suitable for demanding industrial automation or monitoring deployments. The system provides versatile display options including DVI-I and 24-bit dual channel LVDS, enhancing usability in control panel setups. Certified to CE and RoHS standards, the IB908 operates reliably between 0°C and 60°C with 90% non-condensing humidity resistance, ensuring performance in varied industrial conditions.
Its shock and vibration resistance further underline its suitability for manufacturing and other heavy-duty uses. Hardware monitoring combined with AMI BIOS support helps maintain system longevity and reliability, presenting a field-ready solution for industrial-grade computational tasks requiring a balance of power and form factor efficiency.
IB908 Features
- Original OEM Module
- Rohs Compliant, CE
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- Supports DVI-I and Lvds( 24-Bit Dual Channel)
- Dual Gigabit Lan
- Watchdog Timer
- 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Processor
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
4th Generation Intel Core i U-series processor built-in HD audio controller w/ Realtek ALC269Q-VC2-GR Codec w/ class-D speaker amplifier
BIOS
AMI BIOS
Display Interface
Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x full-sized, 1x half-sized)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6102D 1x RS-232/422/485 (Jumperless selection) 1x RS232, 2x SATA III
LAN Connector
2x RJ-45 on board
LAN Controller
IB908AF: Intel I218LM LAN PHY IB908F: Intel I218V LAN PHY Intel I211AT PCI-E Gigabit LAN (as 2nd LAN)
Others
Digital I/O, +9V~ +24V DC-In, iSMART
SSD
2x mSATA
System Memory
2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
System Speed
1.0GHz
USB
2 ports USB3.0 on board 2 ports USB2.0 via pin header
VGA Controller
4th Generation Intel Core i U-series processor integrated graphics
VGA Memory
Shared memory
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB908AF-4650 Intel Core i7-4650U(1.7GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT (9.5) IB908AF-4300 Intel Core i5-4300U(1.9GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT (9.5) IB908F-2980 Intel Celeron 2980U(1.6GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS (24-bit LVDS dual channel), mSATA, iSMART IB75 Cable kit IB908/IB909 series ,w/ SATA+power cablle, USB, COM, power cable HSIB908-BGA Heatsink for IB909/IB908 HSIB908-BGA-2 Heat spreader for IB909/IB908
Power Input
Wide Range
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB908 Industrial Single Board Computer is designed and engineered for use in demanding environments where reliability, durability are essential. The IB908 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Retail, Security And Surveillance.
Across these sectors, the IB908 is typically used in applications such as Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Robotics And Autonomous System Control.
These examples demonstrate the versatility of the IB908 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the IB908 is appropriate for your specific application, please contact us.
The iBASE IB908 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB908 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB908 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Request further details about the iBASE IB908 Industrial Single Board Computer
If you have any questions about the iBASE IB908 please get in touch today, our team of technical experts are ready to assist you.
