IB909 iBASE Single Board Computer

IB909 IBASE Single Board Computer

IB909 Features

  • Original OEM Module
  • Rohs Compliant, CE
  • ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
  • Supports DVI-I and Lvds( 24-Bit Dual Channel)
  • Dual Gigabit Lan

Manufacturer: iBASE

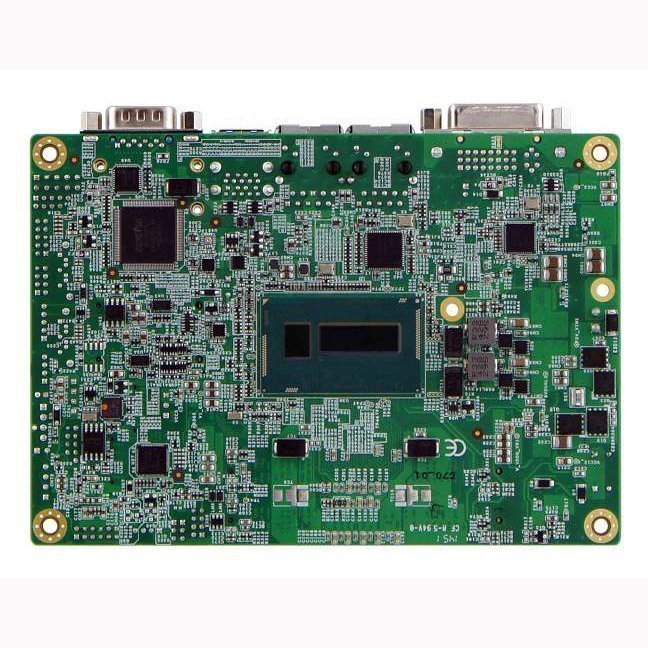

The IB909 series is a 3.5-inch disk size with onboard 5th Generation Intel Core I U-series processors. It offers a selection Intel processors manufactured on 14nm process technology namely, the Intel Core i7-5650U running 2.2GHz, the Intel Core i5-5350U processor (1.8GHz) and the Intel Core i3-5010U processor (2.1GHz). The IB909 single board computer is the ideal solution for applications in factory automation, medical, kiosk and networking markets, providing excellent performance and energy efficiency, as well as better 3D graphics than previous-generation counterparts.
Specification
Manufacturer or Brand iBASE
Mounting Format OEM
Processor Intel
Certifications RoHS Compliant, CE
Operating Temperature 0C~60C (32CF~140CF)
Storage Temperature -20C~80C (-4CF~176CF)
Humidity 90% Humidity Resistant (non-condensing @ 60C)
Dimensions 102mm x 147mm (4" x 5.8")
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info IB909AF-5650 Intel Core i7-5650U(2.2GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT(1.0) IB909AF-5350 Intel Core i5-5350U(1.8GHz) 3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART, iAMT(1.0) IB909F-5010 Intel Core i3-5010U(2.1GHz)3.5-inch Disk Size SBC w/ dual PCI-E GbE LAN, DVI-I & LVDS(24-bit LVDS dual channel), mSATA, iSMART HSIB908-BGA Heatsink for IB909/IB908 HSIB908-BGA-2 Heat spreader for IB909/IB908 IB75 Cable kit IB908/IB909 series ,w/ SATA+power cablle, USB, COM, power cable
Audio Intel 5th Generation Core i U-series processor built-in HD audio controller + Realtek ALC269Q-VC3 w/class-D speaker amplifier
BIOS AMI BIOS
Display Interface Support DVI-I and 24-bit dual channel LVDS
Expansion Slots 2x Mini PCI-E (1x full-sized, 1x half-sized)
Form Factor FILTER 3.5" SBC
H/W Monitor Yes
I/O Chipset Nuvoton NCT6102D 1x RS-232/422/485(Jumperless selection), 1x RS232, 2x SATA III
LAN Connector 2x RJ-45 on board
LAN Controller IB909AF: Intel I218LM LAN PHY IB909F: Intel I218V LAN PHY Intel I211AT PCI-E Gigabit LAN(as 2nd LAN)
Others Digital I/O, +9V~ +24V DC-in, iSMART
SSD 2x mSATA
System Memory 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
System Speed 1.0GHz
USB 2 ports USB3.0 on board 2 ports USB2.0 on via pin header
VGA Controller 5th Generation Intel Core i U-series processor integrated Gfx
VGA Memory Shared memory
Watchdog Timer 256 levels
  • Original OEM Module
  • Rohs Compliant, CE
  • ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
  • Supports DVI-I and Lvds( 24-Bit Dual Channel)
  • Dual Gigabit Lan
  • Watchdog Timer
  • 6X USB 2.0, 2X USB 3.0, 2X Com, 2X SATA Iii
The iBASE IB909 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE IB909 Single Board Computer are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE IB909 Single Board Computer The potential applications extend further than those shown above. For further information about the iBASE IB909 Single Board Computer or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE IB909 Single Board Computer on our website.

If your application requires unusual or individual modifications for the iBASE IB909 Single Board Computer, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE IB909 Single Board Computer has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE IB909 Single Board Computer, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
