The IPPC-12A7-RE is a 12-inch panel PC based on the Dual-Core Intel ATOM Processor D2550 with 1.86GHz speed. It features a modularized design concept that divides the processor, LCD and I/O units to enhance customization flexibility and helps shorten time to market as well as reduce development cost. The panel PC is aimed at industrial PC customers sensitive to inventory and cost saving issues. The box module of IPPC12A7-RE can be divided as a simple PC to operate without providing the display panel. Customers can freely use the LCD modules of different sizes developed by IBASE in order to shorten development time and save cost. Inventory can be easily maintained by using the same box module with different panel sizes.

IPPC1501-RE Features

  • Fanless Design Panel PC
  • Intel Atom D2550 Processor
  • 12V~24V Wide-Range Dc-In Power Input
  • IP65 Protection (Except Edge I/O Side)
  • Slim & Compact Design


The IPPC-12A7-RE is a 12-inch panel PC based on the Dual-Core Intel Atom Processor D2550 with 1.86GHz speed. It features a modularized design concept that divides the processor, LCD and I/O units to enhance customization flexibility and helps shorten time to market as well as reduce development cost. The panel PC is aimed at industrial PC customers sensitive to inventory and cost saving issues. The box module of IPPC12A7-RE can be divided as a simple PC to operate without providing the display panel. Customers can freely use the LCD modules of different sizes developed by IBASE in order to shorten development time and save cost. Inventory can be easily maintained by using the same box module with different panel sizes.

Specification
Manufacturer or Brand iBASE
Mounting Format Panel Mount, VESA 75
IP Rating IP65
Screen Size 15"
Processor Intel
Operating System Windows
Case Material Aluminum
Certifications CE, RoHS compliant
Operating Temperature -5C~50C
Storage Temperature -20C~60C
Humidity 10-90% Humidity Resistant (non-condensing)
Dimensions 398 x 316 x 73.2
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info IPPC1501-RE 15タン Industrial Panel PC , Intel Atom D2550 1.86GHz, 2GB RAM, 500G SATA HDD, resistive touch, w/o power adaptor Power adaptor AC 90~240V input, 12V DC output 60W power adaptor IBASE P/N: A005PS060W0702000P
Additional Graphics VGA
Audio None
Backlight Lifetime(hrs) 50000
Built-in Speaker/MIC None
Chassis Material Aluminum front bezel and SGCC back cover with aluminum heat-sink
Construction Black sheet metal
Contrast 700:01:00
Digital I/O None
Display Interface 1x DVI-I
Display Type 15" TFT-LCD
Expansion Slot None
HDD 1x 2.5" SATA
Interface USB
Internal Expansion Bus 1x Mini PCI-E half/full size
Keyboard/Mouse None
LAN 2x 10/100/1000 Base-T LAN w/ RJ45 connector
Light Transmission (%) 80
Luminance (cd/m2) 400
Max. Color 16.2M
Max. Resolution 1024 x 768
Membrane Control None
Memory 1x DDR3 1333 SO-DIMM up to 4GB
Mounting VESA 75x75mm
Mounting Type Filter VESA
Onboard Expansion Bus 1x Mini PCI-E for mSATA 1x Mini PCI-E half size
Operating System Support Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch 1

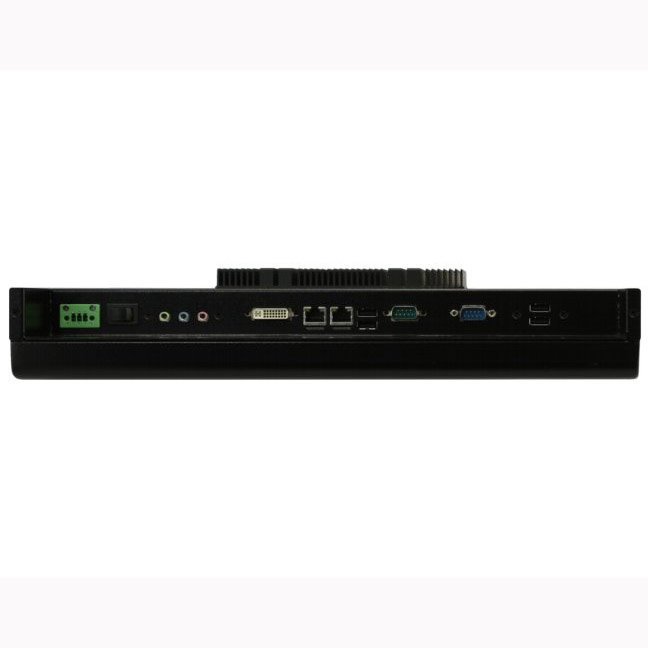

Power 1x 3pin DC power connector 1x Power rock switch
Power Button Rock switch
Power Input 12V~24V DC input
Power Input Range 12V DC
Processor, Chipset Intel Atom Processor D2550 1M Cache, 1.86GHz
Removable Slot None
RS-232/422/485 Selectable under BIOS 1
Serial/Parallel 1x RS-232/422/485 (Default: RS-232) w/ DB9M connector 1x RS-232 w/ DB9M connector
Thermal Design Fanless
Touch Type Resistive
Touch Type Filter Resistive
USB 4x USB 2.0 w/ type-A connector
USB 2.0 4
USB 3.0 0
View Angle (H/V) 160/140
Wireless Optional Wi-Fi/BT
  • Fanless Design Panel PC
  • Intel Atom D2550 Processor
  • 12V~24V Wide-Range Dc-In Power Input
  • IP65 Protection (Except Edge I/O Side)
  • Slim & Compact Design
  • Projected Capacitive Touch
  • Optical Bonding
The iBASE IPPC1501-RE is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE IPPC1501-RE Panel PC are listed below:-

  • Factory Floor
  • Industrial Automation
  • Manufacturing Plant
  • Railway
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE IPPC1501-RE Panel PC The potential applications extend further than those shown above. For further information about the iBASE IPPC1501-RE Panel PC or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iBASE IPPC1501-RE Panel PC to suit your requirements. These options include:

  • Interface
  • Processor
  • Memory
  • Storage
  • Connections
  • Operating System

If your application requires unusual or individual modifications not listed above for the iBASE IPPC1501-RE Panel PC, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE IPPC1501-RE Panel PC has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE IPPC1501-RE Panel PC, must be presented to us here in the UK.
