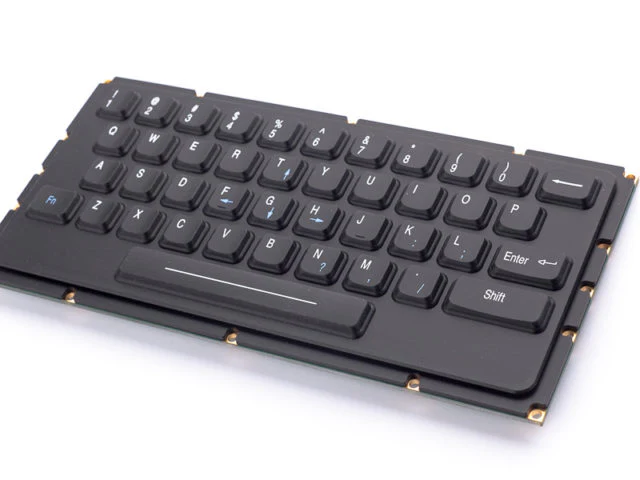

KYB-42-KIOSK iKey Keyboard
The iKey KYB-42-KIOSK was specially designed for kiosk applications. The small number of keys ensures the public is only accessing the information you want it to.
KYB-42-KIOSK Features
- OEM Kit: PCB, Rubber Overlay and Cable
- Easy Integration
- USB, PS2 and AT/Serial Configurations Available
- Various Keyboard and Language Layout Options
- Customisation Available On Request
The KYB-42-KIOSK was specially designed for kiosk applications. The small number of keys ensures the public is only accessing the information you want it to. The sealed design with low profile keys means this keyboard will stand up to the toughest treatment. For public display kiosks, these features create a waterproof, environmentally durable solution perfect for harsh kiosk implementations.

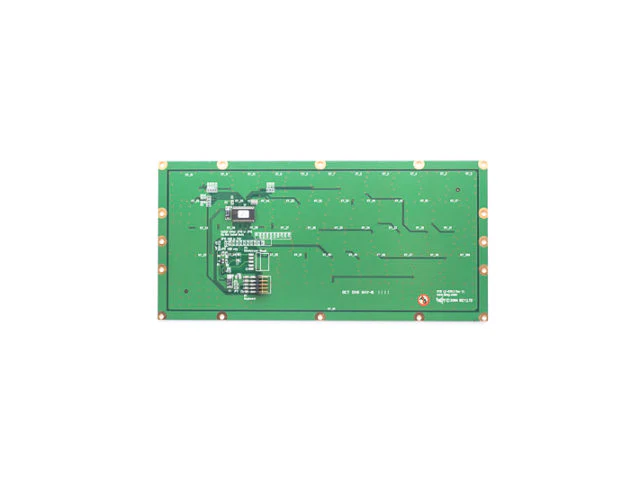

Each kit includes an industrial silicone keypad, switch matrix board, keyboard controller and cables.
| Manufacturer or Brand | iKey |
|---|---|
| Mounting Format | Kiosk Mount, OEM |
| IP Rating | IP66 |
| Interface | PS2, USB |
| Case Material | No Case |
| Housing Colour | Black |
| Backlight | No Backlight |
| Certifications | IP Rated, NEMA 4X UL60950, FCC Part 15 Class B |
| Temperature Rating | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Humidity | 100% Humidity Resistant (when properly installed) |
| Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
| Dimensions | 9.17" x 4.45" x 0.43" (w-h-d) 232.9mm x 113mm x 10.9mm |
| Warranty | 90 Day Limited Warranty |
| Cable | LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2, AT or Single USB Cable |
| Compatibility | PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS |
| Flammability | PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO |
| Function Keys | 24 Keys |
| Key Feedback | Tactile with Mechanical Snap |
| Key Material | Industrial Silicone Rubber |
| Key Switch | MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with Mechanical Snap |
| Lifespan | >10 Million Actuations |
| Mounting Filter | Panel Mount |
| No. Of Keys | 42 |
| Pointing Device | No Pointer |
| Power | PS/2: KEYBOARD: 50mA@5V (from Keyboard port) USB: 50mA@5V (from CPU port) |
| Product Weight | 1 lb (0.45 kg) |
| Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
| Switch Force | 200g (+/- 20g) |
| Switch / Key Travel | 0.055 in (1.4mm) |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
- OEM Kit: PCB, Rubber Overlay and Cable
- Easy Integration
- USB, PS2 and AT/Serial Configurations Available
- Various Keyboard and Language Layout Options
- Customisation Available On Request
- Customisation Available On Request
The iKey KYB-42-KIOSK
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey KYB-42-KIOSK Keyboard are listed below:-
These are just some of the applications for the iKey KYB-42-KIOSK Keyboard The potential applications extend further than those shown above. For further information about the iKey KYB-42-KIOSK Keyboard
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Accident and Emergency
- Clinical Engineering
- Dental Surgeries
- Factory Floor
- Food Processing
- Hospitals
- Industrial Automation
- Kiosk and Self-Service
- Medical Carts
- Pharmacy
- Radiology
- Smart Factory
- Theatres
- Veterinary Hospitals
- Ward Areas
- Doctors Surgeries
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey KYB-42-KIOSK Keyboard to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the iKey KYB-42-KIOSK Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Keyboard Layout
- Keyboard Language
- Cable Type
- Cable Length
- Interface
The iKey KYB-42-KIOSK Keyboard has a 90 Day Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, iKey KYB-42-KIOSK Keyboard, must be presented to us here in the UK.
