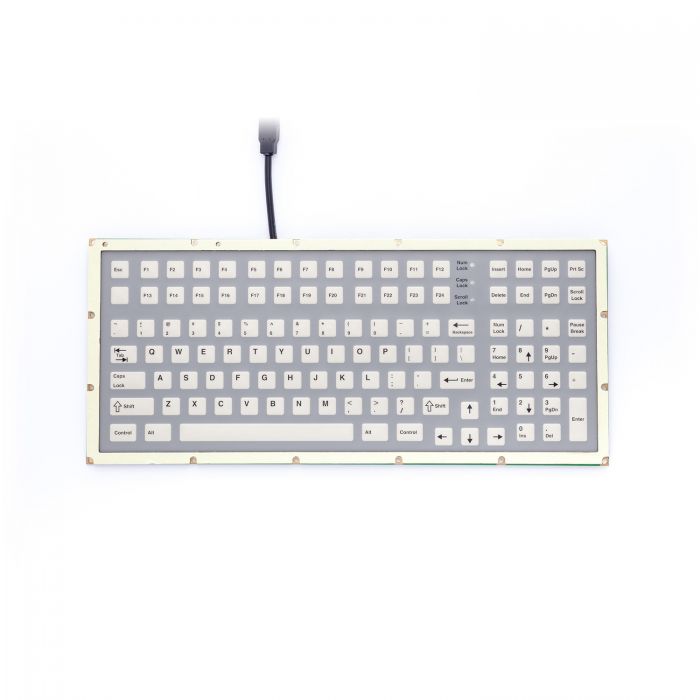

MEM-114-OEM iKey Keyboard

The iKey MEM-114-OEM provides a rugged, cost-effective solution. It has a self-adhesive seal that offers watertight protection when installed.

MEM-114-OEM Features

  • Rugged, Cost Effective Solution
  • OEM Kit: PCB, Rubber Overlay and Cable
  • USB, PS2 and AT/Serial Configurations Available
  • Customisation Available On Request
  • Various Keyboard and Language Layout Options

MEM-114-OEM Keyboard Options



The MEM-114-OEM provides a rugged, cost-effective solution. It has a self-adhesive seal that offers watertight protection when installed.

Each kit is comprised of a membrane keypad, switch matrix board, keyboard controller and cables.

Specification
Manufacturer or Brand iKey
Mounting Format Kiosk Mount, OEM
IP Rating IP66
Interface PS2, USB
Case Material No Case
Housing Colour Black
Backlight No Backlight
Certifications IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
Temperature Rating STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Humidity 100% Humidity Resistant (when properly installed)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 15.0" x 6.25" x 0.75" (w-h-d) 381.0mm x 158.8mm x 19.1mm
Warranty 90 Day Limited Warranty
Auto Repeat Frequency / Delay All keys, repeat frequency and delay time are programmable
Bounce Time 5 ms max
Cable LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2, AT or Single-Cable USB Cable
Compatibility PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
EMI EN55022, FCCPart 15 Subpart B Class A
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys 24 Keys
Guide Frame Polystrol
Impact Stability 10 N, 1 min
Key Feedback Tactile with Mechanical Snap
Key Material Membrane
Key Spacing 19 mm
Key Switch MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 200g (+/- 20g) FEEDBACK: Tactile with Mechanical Snap
LED Indicators Caps lock; Scroll lock; Num lock; Accept LED for MSR and/or user controlled
Lifespan >3 Million Actuations
Mounting Filter OEM
No. Of Keys 114
Operating Force 0.6 N
Pointing Device No Pointer
Power KEYBOARD: 5V@ 10 ma (from CPU port)
Product Weight 3 lbs (1.38 kg)
Programmable Programmable
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Spring Elements Elastomer
Switching membrane Polyester
Switch Force 200g (+/- 20g)
Switch / Key Travel 0.055 in (1.4mm)
Temperature Range STORAGE: -40C to +60C OPERATING: 0C to +50Cᅠ- AIR Presure 700 hPa to 1060 hPa, Climatic class DIN-IEC 68, part 1, appendix A
Tone Indicator Keyclick and sound via command or UPOS
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
  • Rugged, Cost Effective Solution
  • OEM Kit: PCB, Rubber Overlay and Cable
  • USB, PS2 and AT/Serial Configurations Available
  • Customisation Available On Request
  • Various Keyboard and Language Layout Options
  • Single, Double and Multiple Keys
  • Coloured Keys (Option)
The iKey MEM-114-OEM is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey MEM-114-OEM Keyboard are listed below:-

  • Broadcast Consoles
  • Factory Floor
  • Industrial Automation
  • Marine Consoles
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iKey MEM-114-OEM Keyboard The potential applications extend further than those shown above. For further information about the iKey MEM-114-OEM Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey MEM-114-OEM Keyboard to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the iKey MEM-114-OEM Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iKey MEM-114-OEM Keyboard has a 90 Day Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iKey MEM-114-OEM Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
