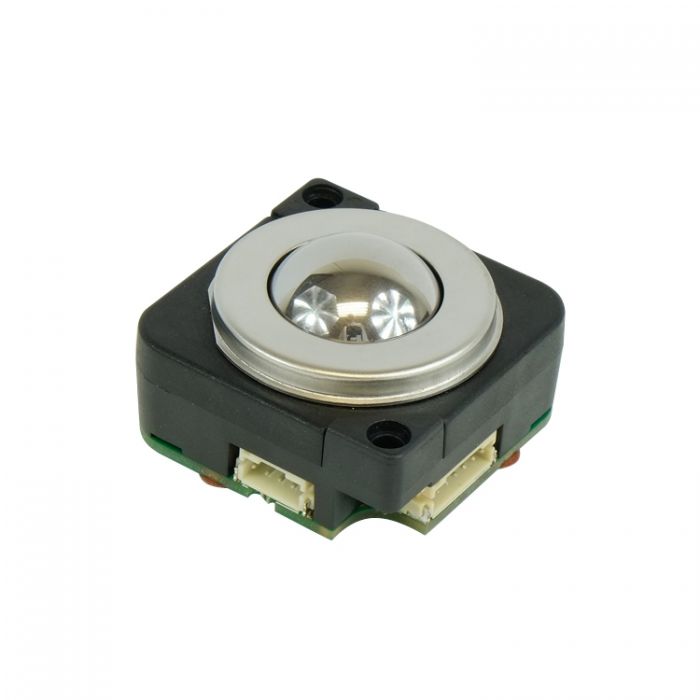

P25-Compact Cursor Controls Trackball

The P25 Compact Series are rugged professional trackballs ideal for use in the most demanding of applications where space is at a premium.

P25-Compact Features

  • Sealing Options Up To IP65 (BS En 60529)
  • Steel Core Ball For Precise Control
  • Smooth Operation In Rugged Environments
  • Stainless Steel Shaft and Bearings
  • Various Top Plate Configurations

Manufacturer: Cursor Controls

P25-Compact Trackball Options




The P25 Compact Series are rugged professional trackballs ideal for use in the most demanding of applications where space is at a premium. The P25 Series incorporates the same proven technology found in the well established P38 trackball range, providing the user with the same high specification trackballs in a smaller package. High-grade stainless steel shafts and bearings ensure a solid and precise pointer control while the patented floating seal technology limits ingress of aqueous solutions and particulates. The P25 Compact trackballs have been designed to be back of panel mounted as part of OEM keyboards and consoles.
Specification
Manufacturer or Brand Cursor Controls
Mounting Format Panel Mount
Interface PS2, TTL Quadrature, USB
Case Material ABS Polycarbonate
Housing Colour Black
Certifications CE, RoHS compliant
Temperature Rating Operating Temperature -10C to +55C Storage Temperature -40C to +85 C
Humidity 30% min, 95% max, non-condensing
Warranty 18 Month Limited Warranty
Lifetime > 1 million ball revolutions
Ball Coated Steel, 16mm, 0.8"
Ball Load 10N Maximum downward pressure (1Kg) @ 20C
Ball Rotation Continuous and reversible in any direction
Ball Speed 300 RPM maximum
Housing Material ABS Black
Interface Filter TTL Quadrature
Mounting Filter Rear Mount
Mounting Position Horizontal to 0 to vertical 90C
Power 5 V DC +/- 5%
Quadrature format 6ma typical
PS/2 & USB - 12ma typical
Resolution 800 +/- 30 counts per ball revolution (other options available upon request)
Tracking Force 8gms Nominal continuous no seal (IP40)
Transducers Photo-optical encoders with LED
  • Sealing Options Up To IP65 (BS En 60529)
  • Steel Core Ball For Precise Control
  • Smooth Operation In Rugged Environments
  • Stainless Steel Shaft and Bearings
  • Various Top Plate Configurations
  • Custom Connector Options
  • Optional Anti-Vandal Kit
The Cursor Controls P25-Compact is used in a wide range of industries for a broad range of rugged applications. The most common applications for the Cursor Controls P25-Compact Trackball are listed below:-

  • Broadcast Consoles
  • Computer Consoles
  • Industrial Automation
  • Marine Consoles
  • Medical Equipment
  • Smart Factory
  • Sound Editing Desks
  • Video Editing Desks
  • Industry 4.0

These are just some of the applications for the Cursor Controls P25-Compact Trackball The potential applications extend further than those shown above. For further information about the Cursor Controls P25-Compact Trackball or to check if the product is suitable for your application, please do not hesitate to contact us.
With our highly trained in house technical team and strong relationship with our manufacturers, we can offer numerous options and configurations for the Cursor Controls P25-Compact Trackball to suit your requirements. These options include:

  • Cable Type
  • Cable Length
  • Interface
  • Trackball Colour

If your application requires unusual or individual modifications not listed above for the Cursor Controls P25-Compact Trackball, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The Cursor Controls P25-Compact Trackball has a 18 Month Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, Cursor Controls P25-Compact Trackball, must be presented to us here in the UK.
