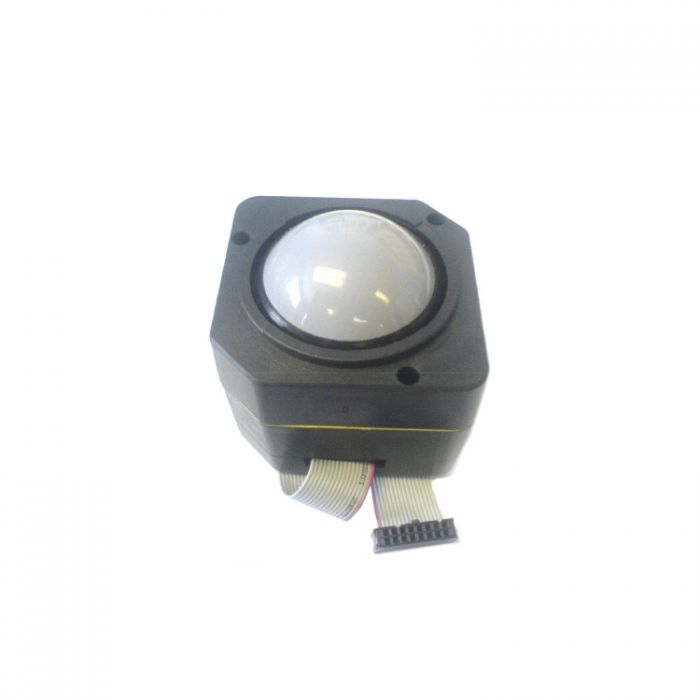

P55 Cursor Controls Trackball
A chassis based Trackerball and 3-switch assembly, providing a low cost, large ball solution for system builders and console designers. As the original industry benchmark, the P55 provides the user with long-term effortless, sensitive and fatigue free control of a cursor. Manufactured using high grade Stainless Steel and plastic components, the P55 Trackerball will provide many years of reliable cursor control.
P55 Features
- High Precision Pointing Device
- Smooth Operation In Rugged Environments
- Ttl Quadrature
- Sealing To Ip51
- High Grade Stainless Steel Shafts and Bearings
- Custom Ball Colours and Connectors
- Custom Top Plate and Chassis Configurations
Request for Quote (RFQ)
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
ABS Polycarbonate
Certifications
CE, RoHS compliant
Custom Options Products
Cable Type,Cable Length,Interface,Trackball Colour
Housing Colour
Black
Humidity
30% min, 95% max, non-condensing
Lifetime
>10 million ball revolutions
Storage Temperature
Storage Temperature -10C to + 85 C
Temperature Rating
Operating Temperature -5C to +70C
Ball
Thermoset Phenolic, 57mm
Ball Load
200N Maximum downward pressure (20Kg) @ 20C
Ball Rotation
Continuous and reversible in any direction
Ball Speed
200 RPM maximum
Housing Material
ABS
Interface Filter
TTL Quadrature
Mounting Filter
Rear Mount
Mounting Position
Horizontal to 30
Power
Supply Voltage (Quad, PS/2) 5 V DC +/- 5%
Supply Voltage (RS232) +/- 12 V DC
Supply Current Protocol format 16ma typical
Optional Backlight +5 V DC, 100ma
Resolution
200 pulses per ball revolution (other options available upon request)
Tracking Force
15gms Nominal continuous no seal (IP40)
Transducers
Photo-optical encoders with LEDS
The P55 Cursor Controls Trackball is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the P55 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the P55 Cursor Controls Trackball across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Trackball fits your specific needs, please contact us.
The P55 Cursor Controls Trackball comes with a 18 Month Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, P55 Cursor Controls Trackball, must be presented to RUGGED in the United Kingdom.
For more information about the P55 Cursor Controls Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the P55 Cursor Controls Trackball or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Cursor Controls P55 or need a custom Trackball solution designed specifically for you, our team of technical experts are ready to assist you.
