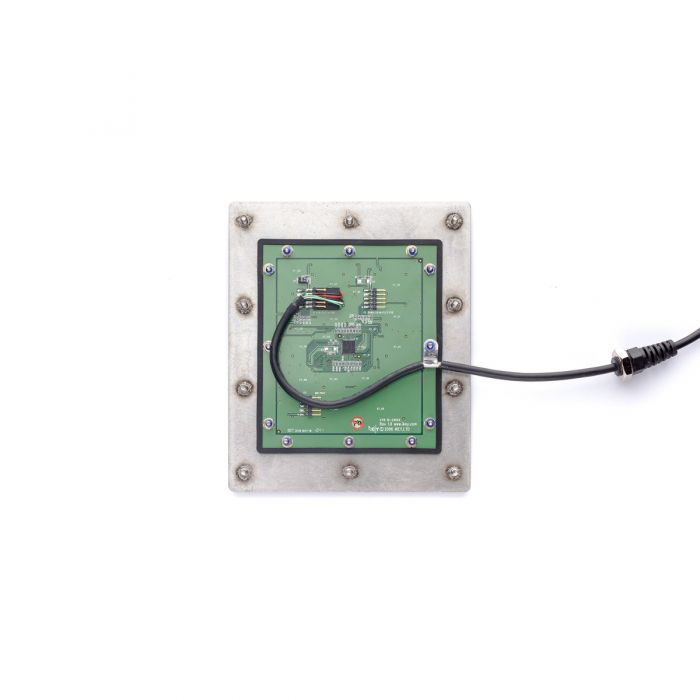

iKey 18-Key Panel Mount Industrial Stainless Steel Numeric Keypad
Manufacturer or Brand | iKey |
---|---|
Mounting Format | Panel Mount |
IP Rating | IP66 |
Interface | PS2, USB |
Case Material | No Case |
Backlight | No Backlight |
Certifications | IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B |
Temperature Rating | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to 70C (-40F to +158F) |
Humidity | 100% Humidity Resistant (when properly installed) |
Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
Dimensions | 5.85" x 7.05" x 0.20" (w-h-d) 148.6mm 179.1mm x 5.1mm SCREWS: 0.50" (12.7mm) CUTOUT: 4.50" x 5.30" (w-h) 114.3mm x 134.6mm |
Warranty | 1 Year Limited Warranty |
Cable | LENGTH: 10 feet (3 meters) DESIGN: PS/2 or AT Cable |
Compatibility | PS/2 KEYBOARD: All Windows Operating Systems USB KEYBOARD: All Windows and Macintosh OS |
Flammability | PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO |
Function Keys | 12 Keys |
Key Feedback | Tactile with Mechanical Snap |
Key Material | Industrial Silicone Rubber |
Key Switch | MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 4.74 oz. +/- 1.06 oz. (135g +/- 30g) FEEDBACK: Tactile with Mechanical Snap |
Lifespan | >10 Million Actuations |
Mounting Filter | Panel Mount |
No. Of Keys | 18 |
Pointing Device | No Pointer |
Power | PS/2: 50mA@5V (from Keyboard port) USB: 50mA@5V (from CPU port) |
Product Weight | 1.00 lbs +/- 0.10 lbs (0.92 kg +/- 0.05 kg) |
Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
Switch Force | 135g (+/- 30g) |
Switch / Key Travel | 0.055 in (1.4mm) |
Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
The iKey PM-18 Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, iKey PM-18 Keyboard, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
