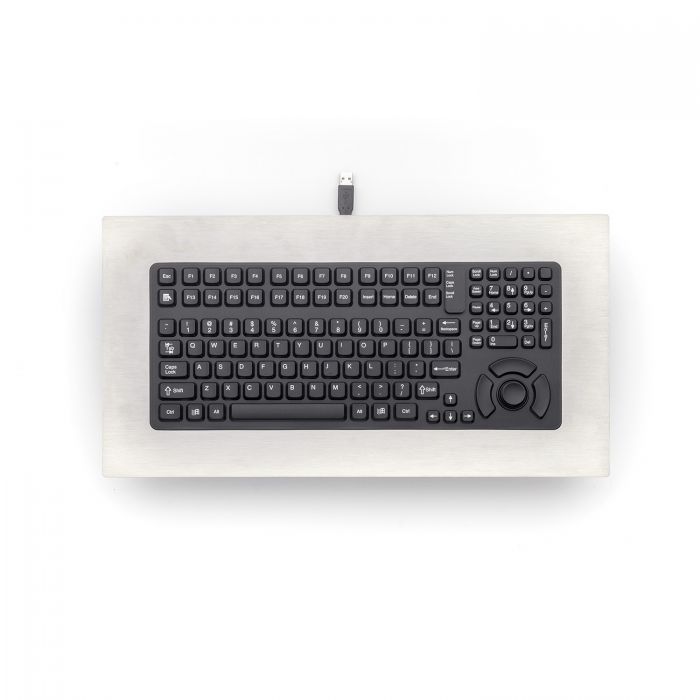

PM-5K-NI iKey Keyboard
The iKey PM-5K-NI features an integrated HulaPoint IIpointing device, is enclosed in a stainless steel case and carries a Factory Mutual approval of Class I, Division II.
PM-5K-NI Features
- Non-Incendive For Hazardous Environments
- Industrial Grade Stainless Steel Case
- Integrated Pointing Device
- 10-Key Numeric Pad
- Various Keyboard and Language Layout Options
iKey offers a full line of Nonincendive keyboards and pointing devices.
The PM-5K-NI features an integrated Hula Point II; pointing device, is enclosed in a stainless steel case and carries a Factory Mutual approval of Class I, Division II.
These units do not require barriers and are ideal for harsh working conditions. All units ship with bulkhead cables.
| Manufacturer or Brand | iKey |
|---|---|
| Mounting Format | Panel Mount |
| IP Rating | IP66 |
| Interface | PS2, USB |
| Case Material | No Case |
| Backlight | No Backlight |
| Certifications | IP Rated, NEMA 4X UL60950, FCC Part 15 Class B |
| Temperature Rating | STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F) |
| Humidity | 100% Humidity Resistant (when properly installed) |
| Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
| Dimensions | 17.70" x 9.20" x 1.58" (w-h-d) 449.6mm x 233.7mm x 40.1mm |
| Warranty | 1 Year Limited Warranty |
| Cable | LENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: 2 separate cables on PS/2 or single-cable USB |
| Compatibility | PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh Operating Systems |
| Flammability | PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO |
| Function Keys | 24 Keys |
| Key Feedback | Tactile with Mechanical Snap |
| Key Material | Industrial Silicone Rubber |
| Key Switch | MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap |
| Lifespan | >10 Million Actuations |
| Mounting Filter | Panel Mount |
| No. Of Keys | 116 |
| Pointing Device | HulaPoint |
| Power | KEYBOARD: 5V@10ma (from CPU port) MOUSE: 5V@20ma (from CPU port) |
| Product Weight | 6.75 lbs +/- 0.10 lbs (3.06 kg +/- 0.05 kg) |
| Shock | 3 x 11 ms Pulses of 50g on each of 3 Axes |
| Switch Force | 200g (+/- 30g) |
| Switch / Key Travel | 0.055 in (1.4mm) |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
- Non-Incendive For Hazardous Environments
- Industrial Grade Stainless Steel Case
- Integrated Pointing Device
- 10-Key Numeric Pad
- Various Keyboard and Language Layout Options
- Customisation Available On Request
The iKey PM-5K-NI
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey PM-5K-NI Keyboard are listed below:-
These are just some of the applications for the iKey PM-5K-NI Keyboard The potential applications extend further than those shown above. For further information about the iKey PM-5K-NI Keyboard
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Factory Floor
- Hazardous Location
- Helicopter Consoles
- Industrial Automation
- Manufacturing Plant
- Smart Factory
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey PM-5K-NI Keyboard to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the iKey PM-5K-NI Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Keyboard Layout
- Keyboard Language
- Cable Type
- Cable Length
- Interface
The iKey PM-5K-NI Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, iKey PM-5K-NI Keyboard, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
