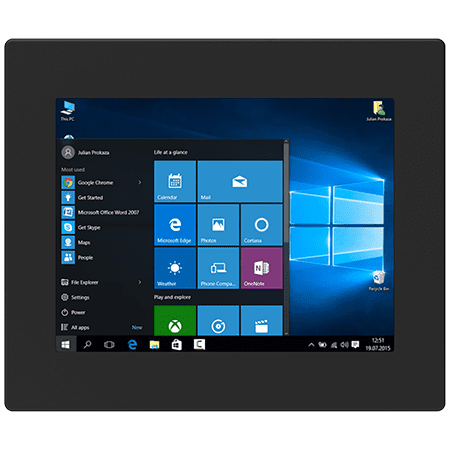

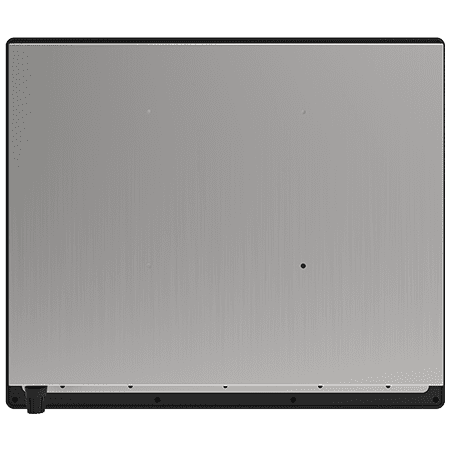

Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC
Designed for industrial environments, the Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC offers a sealed, dust and water-resistant front panel suitable for factory floors and outdoor use. Powered by an Intel Core i5-1235U processor, it delivers reliable performance for machine control and monitoring applications. The rugged metal housing and fanless cooling system ensure continuous-duty operation and reduce maintenance needs.
This panel PC supports dual Intel Ethernet controllers for high-availability network connections, enhancing communication reliability. Its IP65-rated front panel protects against dust and water jets, while compliance with CE and FCC certifications confirms its industrial-grade durability. The device accommodates operating temperatures of 0°C to 50°C and relative humidity from 10% to 90%, non-condensing, making it adaptable to various industrial climates. Multiple ports including USB3.2, serial, and optional wireless support improve integration flexibility in automation systems.
R12IAD3S-IPM2 Features
- 12.1” 1024 x 768 Resolution Front IP65 PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- Front IP65
- 12 V DC Power input
Request a Quote
Product Type
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
12.1 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
500.0 nits
Contrast Ratio
1000:1
View Angles
89-89-89-89
Active Area
245.76x184.32 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
324 x 274 x 67 mm
Cut out
302 x 234.3 mm
Weight
2.6 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R12IAD3S-IPM2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Natural Resources and Mining, Oil and Gas, Public Sector, Warehousing.
Across these sectors, the R12IAD3S-IPM2 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the R12IAD3S-IPM2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R12IAD3S-IPM2 is appropriate for your specific application, please contact us.
The Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R12IAD3S-IPM2 12.1 Inch Front IP65 Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R12IAD3S-IPM2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
