Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC
For teams working across industrial automation and factory environments, the Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC offers a durable and stable interface solution. Its metal front bezel combined with a plastic back cover creates a field-ready enclosure that protects against dust and water ingress with an IP65 front rating. This panel supports continuous-duty use with a fanless design to limit maintenance. The 15-inch projected capacitive multi-touch display supports a 1024×768 resolution with high contrast for clear visibility in varied lighting.
The device features an NXP i.MX6 dual-core 1.0GHz processor delivering reliable performance for control systems. It includes versatile connectivity options such as RS232/422/485 serial ports, USB, LAN with PoE support, CANBUS, and micro HDMI, facilitating flexible industrial communication and integration. Certified to meet CE and FCC standards, it operates across 0°C to 50°C and relative humidity of 10% to 90% non-condensing, making it suitable for industrial deployments requiring robust performance in demanding ambient conditions.
R15FA3S-EHC3 Features
- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (PCAP)
- NXP i.MX6 Dual Core 1 GHz
- Fanless cooling system and Ultra-low power consumption
- Support PoE function
- Front IP65 Water and Dust Proof
- 1 x USB ; 1 x RS232 / 422 / 485 ; 1 x Micro SD Slot
Request a Quote
Size
15.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1024x768
Panel Brightness
300.0 nits
Contrast Ratio
2000:1
View Angles
88-88-88-88
Active Area
304.1x228.1 mm
Processor
NXP i.MX6 Dual Core- 1.0GHz
Memory
1GB 2GB (Optional)
Storage
eMMC: Onboard 16 GB eMMC: Onboard 32 GB (Optional)
Operating System
Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)
Dimension
353 x 277 x 42 mm
Cut out
336x266mm
Weight
3.0 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Front Bezel with Plastic Back Cover
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1 x Console Port (Mini USB) 1 x USB OTG 1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
1 x LAN RJ45 Connector with PoE(PD- 802.3 at)
Video
1 x Micro HDMI (Optional)
SD Card Slot
1 x Micro SD card slot
Expansion Port
1 x mPCIe slot(for Wi-Fi module)
CANBUS
1 x CANBUS- D-sub9
Power Input
1 x 12V DC- 2-Pin Terminal Block
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 50W
The Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R15FA3S-EHC3 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Public Sector.
Across these sectors, the R15FA3S-EHC3 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access.
These examples demonstrate the versatility of the R15FA3S-EHC3 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R15FA3S-EHC3 is appropriate for your specific application, please contact us.
The Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R15FA3S-EHC3 15 Inch NXP i.MX6 E Series HMI Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R15FA3S-EHC3 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

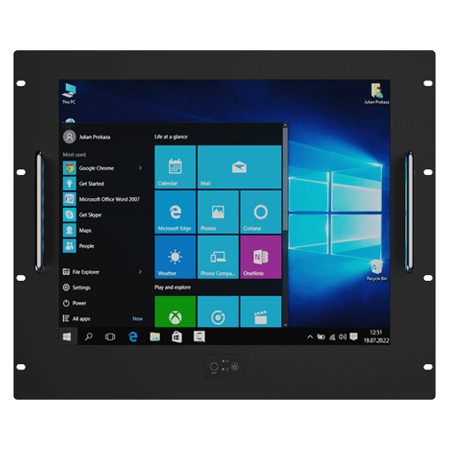

R19IAD7T-RKA1
