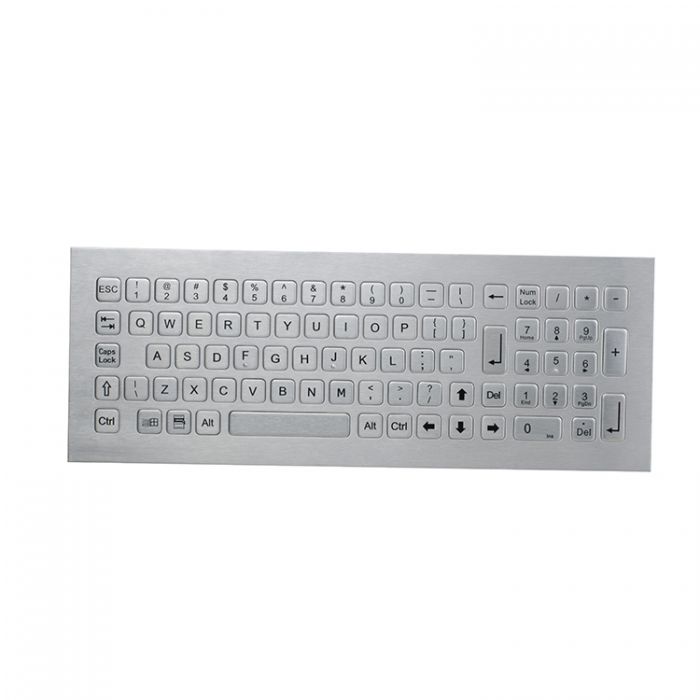

RKB-B340KP-DWP RUGGED Keyboard
81 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
RKB-B340KP-DWP Features
- Rugged Panel Mount Keyboard
- IP67 Rated
- Stainless Steel Construction
- Various Keyboard and Language Layout Options
- Customisation Available On Request
81 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 340.0mm x 125.0mm (front panel)
| Manufacturer or Brand | RUGGED |
|---|---|
| Mounting Format | Panel Mount |
| IP Rating | IP67 |
| Interface | PS2, RS232, USB |
| Case Material | Stainless Steel |
| Housing Colour | Stainless Steel |
| Certifications | RoHS Compliant, CE and FCC, ESD |
| Operating Temperature | Operating temperature:-20C to +60C |
| Storage Temperature | Storage temperature: -30C to +70C |
| Temperature Rating | Operating temperature:-20C to +60C - Storage temperature: -30C to +70C |
| Humidity | 30-90% Humidity Resistant |
| Dimensions | 340.0mm x 125.0mm |
| Width | 125.0mm |
| Length | 340.0mm |
| Warranty | 1 Year Limited Warranty |
| Compatibility | All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
| EMC | IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Frontplate Material | 1.5mm Thickness Super Quality Brushed Stainless Steel |
| Key Material | Stainless Steel |
| Key Spacing | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key Switch | Gold-on-Gold key Switch Technology |
| Lifespan | > 5 years |
| Material (Bottom Plate) | 3.0mm Thickness Brushed & Oxidized Aluminium |
| Mounting Filter | Panel Mount |
| MTBF | >50000H |
| MTTR | <30min |
| No. Of Keys | 81 |
| Operating Force | 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Pointing Device | Touchpad |
| Power | +5V DC +/-5% appr. 30mA |
| Product Weight | 1.30KGs |
| Resolution | +400 DPI |
| Supply Current | appr. 30mA |
| Supply Voltage | +5V DC +/-5% |
| Switch / Key Travel | 0.45mm |
- Rugged Panel Mount Keyboard
- IP67 Rated
- Stainless Steel Construction
- Various Keyboard and Language Layout Options
- Customisation Available On Request
The RUGGED RKB-B340KP-DWP
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RUGGED RKB-B340KP-DWP Keyboard are listed below:-
These are just some of the applications for the RUGGED RKB-B340KP-DWP Keyboard The potential applications extend further than those shown above. For further information about the RUGGED RKB-B340KP-DWP Keyboard
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Factory Floor
- Industrial Automation
- Kiosk and Self-Service
- Manufacturing Plant
- Smart Factory
- Industry 4.0
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RUGGED RKB-B340KP-DWP Keyboard to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the RUGGED RKB-B340KP-DWP Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Keyboard Layout
- Keyboard Language
- Cable Type
- Cable Length
- Interface
The RUGGED RKB-B340KP-DWP Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, RUGGED RKB-B340KP-DWP Keyboard, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
