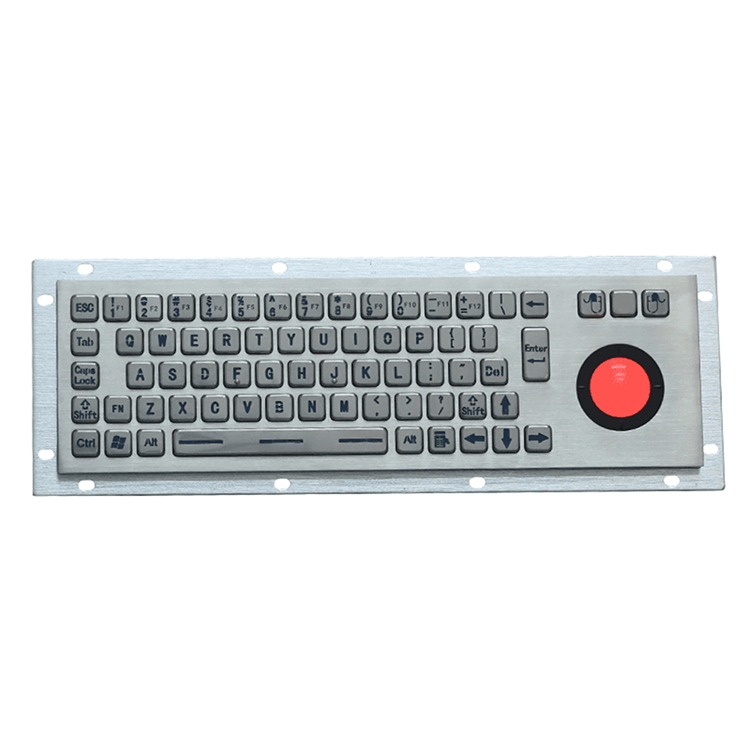

RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball

Designed for industrial and harsh environments, the RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball offers a durable and sealed input solution. Its stainless steel and aluminium alloy build and IP65 sealing protect against dust and moisture ingress, ensuring reliable operation in demanding conditions. The integrated 36mm trackball combined with tactile keys rated for over 10 million actuations supports precise control and extended use in compact setups.

Blue LED backlighting enhances visibility in low-light conditions, while compatibility with USB and PS/2 interfaces across multiple operating systems adds versatile deployment options. The keyboard is vibration tolerant within a frequency range of 20Hz to 2kHz and can operate between -40°C and +70°C. Certification to CE, FCC, and RoHS standards, an MTBF exceeding 50,000 hours, and an operational lifespan beyond five years demonstrate its robustness for continuous duty in industrial control rooms, transportation hubs, and similar settings.

RKB-D-8635G-BG Features

  • Integrated Backlight
  • IP65 Rated
  • Blue LED Backlighting
  • Rear Panel Mount
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Operating System

Country Of Manufacture

China

Backlight

Blue

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

329.8 x 99.8mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Backlight

Blue LED

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

329.8* 99.8mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

MTBF

>50000H

MTTR

<30min

No. Of Keys

65+3

Pointing Device

Trackball

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Trackball Diameter

36mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8635G-BG supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport, Security And Surveillance.

Across these sectors, the RKB-D-8635G-BG is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the RKB-D-8635G-BG across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8635G-BG is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8635G-BG Panel Mount Backlit Keyboard With Trackball, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8635G-BG or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • IP65 sealing for dust and moisture protection
    • Impact-resistant industrial silicone and aluminium build
    • Advanced carbon-on-gold key switches for precise input
    • Complies with IEC 61000 and EN 55022/55024 standards
    • IP65 sealed touchpad
    • Gold-on-gold key switch technology
    • Stainless steel construction
    • Wide -20°C to +60°C operating range
    • IP65-sealed design for washdown cleaning
    • Gold-on-gold key switch technology for durability
    • Corrosion-resistant aluminium backing plate
    • Over 50,000 hours MTBF for extended use
    • IP65 sealed design for dust and moisture resistance
    • Over 10 million key actuations for long lifespan
    • Vibration tested between 20Hz and 2kHz for reliability
    • USB and PS2 compatibility for broad system integration
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    Absolutely, rugged keyboards are engineered to be highly compatible and functional with kiosks and Human Machine Interfaces (HMIs). These environments often require input devices that can withstand continuous use, potential spills, dust, and even vandalism. Rugged Limited provides a range of rugged keyboard solutions that are purpose-built to meet these stringent demands.

    Our rugged keyboards feature durable construction, often including stainless steel or silicone, and are designed to offer protection against liquids and particulates. This makes them an ideal choice for public-access kiosks, industrial control panels, and other HMI applications where standard keyboards would quickly fail. The robust design ensures consistent performance and a long operational lifespan, reducing maintenance needs and improving user experience in challenging settings.

    Rugged Limited provides a range of rugged keyboards designed to withstand challenging industrial environments, including those found on forklifts and heavy machinery. These keyboards are built to be extremely durable, offering resistance to liquids, dust, and extreme temperatures, which are common conditions in such operational settings.

    The design of many rugged keyboard models includes features that facilitate easy integration into various industrial setups. This often involves robust casings and adaptable mounting solutions, ensuring a secure and stable fit even with vibrations or impacts inherent to machinery operation. Their resilience makes them a reliable interface for data entry and control in demanding applications. Rugged Limited’s extensive experience ensures these keyboards meet the rigorous demands of industrial use.

    Rugged Limited offers a range of rugged keyboards that are ideal for use in food processing facilities due to their robust construction and hygienic design. These keyboards are built to endure frequent cleaning with harsh chemicals and high-pressure washing, which are common practices in maintaining sanitation standards within the food industry.

    Many models feature a sealed, silicone-based construction, making them resistant to spills, dust, and debris. This design prevents the ingress of contaminants, which is crucial for preventing bacterial growth and ensuring food safety. The smooth, crevice-free surfaces of our rugged keyboard options also facilitate easy sterilisation, minimising downtime for cleaning and maintenance.

    Furthermore, the durable nature of a rugged keyboard ensures reliable performance even with constant use and exposure to challenging conditions, contributing to operational efficiency in food processing plants.

    Rugged keyboards are engineered to perform reliably in a variety of challenging outdoor environments. They are built with robust materials and often feature sealed designs to protect against ingress from dust, dirt, and water, which are common concerns in outdoor applications. Many models of rugged keyboards are also designed to withstand extreme temperatures, vibrations, and shocks, making them ideal for field operations, industrial settings, and other outdoor work where standard keyboards would quickly fail.

    For those requiring a dependable input solution in harsh conditions, a rugged keyboard provides the necessary resilience. Rugged Limited offers a range of these durable keyboards that ensure continuous functionality, even when exposed to the unpredictable elements of an outdoor environment.

    Rugged Limited specialises in providing industrial peripherals built to withstand harsh conditions, including marine settings. Our rugged keyboards are engineered with features like IP (Ingress Protection) ratings, which are crucial for protecting against water and other liquids commonly found in marine applications. This ensures that the keyboard can endure exposure to moisture, salt spray, and even submersion, depending on the specific IP rating.

    Furthermore, the materials used in our rugged keyboard manufacturing are selected for their durability and resistance to corrosion, which is a significant factor in saltwater environments. This robust construction guarantees reliable operation and a long lifespan, reducing downtime and maintenance in challenging marine conditions.

    An Ingress Protection (IP) rating is a critical standard for rugged keyboards, specifying the degree of protection provided against dust, dirt, and water. This two-digit code is internationally recognised and helps users understand how well a device can withstand environmental factors.

    The first digit in an IP rating signifies protection against solid objects, ranging from 0 (no protection) to 6 (dust-tight). A higher number here means greater resistance to particles entering the device.

    The second digit indicates protection against liquids, ranging from 0 (no protection) to 9 (withstanding high-pressure, high-temperature jet sprays). This is particularly important for a rugged keyboard that might be exposed to spills, rain, or even submersion. Rugged Limited offers a range of peripherals engineered to meet these demanding standards.

    Rugged Limited provides a range of rugged keyboards specifically engineered to meet the demanding requirements of military applications. These keyboards are designed to withstand extreme temperatures, vibrations, shocks, and exposure to dust and liquids, making them ideal for deployment in challenging operational environments.

    Our rugged keyboards feature robust casings, often manufactured from stainless steel or aluminum, and incorporate sealed keypads to prevent ingress of contaminants. Many models also include features like adjustable backlighting for use in varying light conditions, and some are night vision compatible, which is crucial for covert operations. The design prioritises reliability and consistent performance, ensuring that critical data entry functions remain operational when they are needed most.

    Furthermore, the durability of a rugged keyboard from Rugged Limited ensures a longer product lifespan and reduced maintenance, offering a cost-effective solution for military organisations seeking dependable input devices.

    Industries such as manufacturing, logistics, military, and public safety frequently utilise rugged keyboards due to their ability to withstand harsh conditions. These keyboards are designed to operate reliably in environments that might involve exposure to dust, liquids, extreme temperatures, or frequent impacts. For example, in manufacturing facilities, a rugged keyboard can endure grease and grime, while in logistics, it can withstand bumps and spills that are common in warehouses and distribution centres.

    The military and public safety sectors also rely heavily on Rugged Limited’s durable input solutions, as their equipment must function flawlessly in critical and often unpredictable situations. Rugged keyboards provide the necessary resilience for field operations, emergency services, and vehicle integrations where standard keyboards would quickly fail. Their robust construction ensures continued performance, contributing to operational efficiency and safety in these challenging fields.
