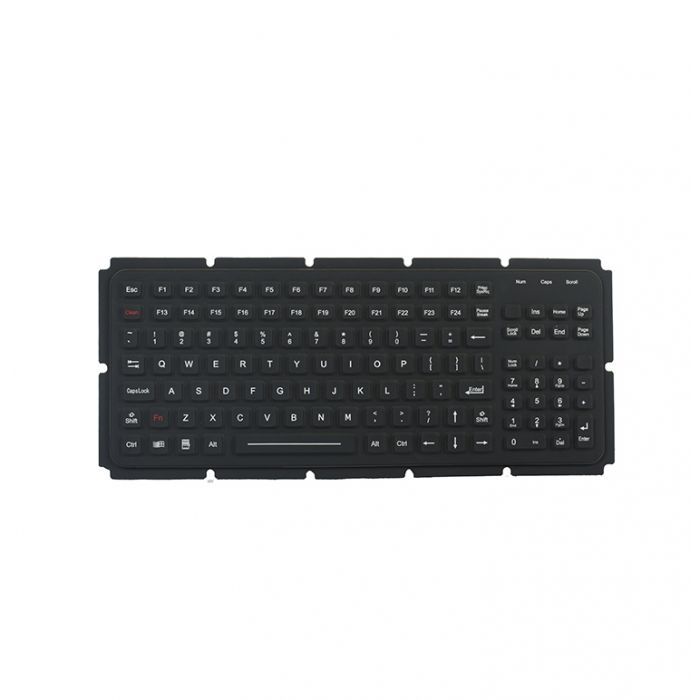

RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard

106 keys IP68 dynamic fully sealed & ruggedized silicone rubber Hygienic keyboard with integrated sealed numeric keypad, function keys (F1, F2…F11, F12) on top line for easy operation, and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key for easy cleaning via locking/disable the whole keyboard without needing to take away the keyboard from PC, movable stand alone desk top version, adjustable industrial backlight optional. DIMENSIONS: .375.0mm x 142.8mm x 15.5mm (L x W x H)

RKB-M375KP-FN-DT Features

  • Rugged Desktop Keyboard
  • IP68  Rated
  • Rugged Construction

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

China

Case Material

Silicone Rubber

Certifications

RoHS , CE, FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

375.0mm x 142.8mm x 15.5mm

Humidity

1

Cable

Single-Cable Appx. 2.2 to 2.5m

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

Dimension with Trackball

368.0mm x 142.90mm x (18.0mm-31.0mm)

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Ruggedized Silicone Rubber & Aluminium

Height

15.5mm

Key Spacing

12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key and 68.0mm x 13.0 mm for space bar key.

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 3 years

Material (Bottom Plate)

Industrial Silicone, Aluminum

MTBF

>50000H

MTTR

<30min

No. Of Keys

106

Operating Force

0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.40mm x 13.0mm (pressure point)

Pointing Device

Trackball

Resolution

800DPI

Shock

3x11 ms pulses of 50g on each of 3 axes

Supply Current

20mA (non-backlight), 140mA (with backlight on)

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.50mm

Trackball Diameter

16.0mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours

Length

375.0mm

Operating Temperature

Operating temperature:-20C to +60C

Shock

3x11 ms pulses of 50g on each of 3 axes

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

142.8mm

The RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RKB-M375KP-FN-DT is commonly used:

Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence

These examples highlight the versatility of the RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard, Rugged Keyboard fits your specific needs, please contact us.

The RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-M375KP-FN-DT Industrial Rugged Keyboard or require a custom solution?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-M375KP-FN-DT or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

  • RKB-D396TP-KP-FN-DT-1

    • Rugged Panel Mount Keyboard
    • Integrated Touchpad
    • IP66 Rated
    • Industrial Grade Stainless Steel
    • IP65 Rated
    • Rear Panel Mount

    RKB-A228-TP-FN-DT

    • Rugged Desktop Keyboard
    • Integrated Touchpad
    • Stainless Steel Construction
    • Rugged OEMKeyboard
    • Integrated
    • Stainless Steel Construction
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    Rugged Limited specialises in providing industrial solutions, and this includes offering customisation options for their rugged keyboard range. We understand that different industries and applications have unique demands, which is why our rugged keyboards can be tailored to incorporate various features.

    For instance, standard options like integrated pointing devices, backlighting, and different mounting solutions are available to enhance functionality and usability. Beyond these, Rugged Limited can implement bespoke modifications to ensure the rugged keyboard seamlessly integrates into your specific setup and operational environment. This commitment to customisation ensures that you receive a product perfectly suited to your needs, rather than a one-size-fits-all solution.

    Choosing a rugged keyboard over a consumer keyboard is essential in environments where standard equipment simply won’t withstand the conditions. Rugged keyboards are specifically engineered to endure extreme temperatures, dust, dirt, liquids, and vibrations, which are common challenges in industrial, medical, and military settings.

    Unlike consumer keyboards, which are designed for typical office use, a rugged keyboard features robust construction, often incorporating sealed components and durable materials like stainless steel or silicone. This enhanced build quality prevents ingress of contaminants and protects internal electronics, ensuring reliable performance and a significantly longer lifespan.

    Furthermore, Rugged Limited’s range of rugged keyboards are built for reliability in the harshest conditions, minimising downtime and maintenance costs often associated with frequent replacement of less durable alternatives.

    Industries such as manufacturing, logistics, military, and public safety frequently utilise rugged keyboards due to their ability to withstand harsh conditions. These keyboards are designed to operate reliably in environments that might involve exposure to dust, liquids, extreme temperatures, or frequent impacts. For example, in manufacturing facilities, a rugged keyboard can endure grease and grime, while in logistics, it can withstand bumps and spills that are common in warehouses and distribution centres.

    The military and public safety sectors also rely heavily on Rugged Limited’s durable input solutions, as their equipment must function flawlessly in critical and often unpredictable situations. Rugged keyboards provide the necessary resilience for field operations, emergency services, and vehicle integrations where standard keyboards would quickly fail. Their robust construction ensures continued performance, contributing to operational efficiency and safety in these challenging fields.

    Rugged Limited specialises in providing industrial-grade solutions engineered for extreme conditions, and a

    Rugged Keyboard

    is built with longevity in mind. Keyboards from Rugged Limited are designed to withstand challenging environments, including exposure to dust, dirt, liquids, and extreme temperatures, which significantly contributes to their extended operational life compared to standard consumer keyboards. Many models feature high ingress protection (IP) ratings, indicating their resistance to environmental factors. For example, some keyboards come with IP65 or even IP67 ratings, signifying protection against dust ingress and submersion in water up to 1 meter for 30 minutes, respectively.

    These robust construction methods and high-quality materials mean that a

    Rugged Keyboard

    is a reliable investment, reducing the need for frequent replacements and minimising downtime in critical operations. To explore the full range and specifications of our durable input solutions, you can visit our rugged keyboards page.

    Rugged Limited provides a range of rugged keyboards designed to withstand challenging industrial environments, including those found on forklifts and heavy machinery. These keyboards are built to be extremely durable, offering resistance to liquids, dust, and extreme temperatures, which are common conditions in such operational settings.

    The design of many rugged keyboard models includes features that facilitate easy integration into various industrial setups. This often involves robust casings and adaptable mounting solutions, ensuring a secure and stable fit even with vibrations or impacts inherent to machinery operation. Their resilience makes them a reliable interface for data entry and control in demanding applications. Rugged Limited’s extensive experience ensures these keyboards meet the rigorous demands of industrial use.

    Rugged keyboards are designed for durability and consistent operation in demanding conditions, and their connection types reflect this need for reliability. The primary connection type used for Rugged Limited’s range of rugged keyboards is USB.

    USB connections offer several advantages for industrial and harsh environments, including broad compatibility, ease of use, and a secure physical connection that can withstand vibrations and impact. This ensures that the rugged keyboard maintains a stable link to the host system, critical for uninterrupted data entry and control in sectors such as manufacturing, logistics, and marine applications.

    Rugged keyboards are specifically engineered to withstand various forms of abuse, including vandalism. This resistance is achieved through robust construction using materials like stainless steel or industrial-grade silicone, which can endure impacts, sharp objects, and attempts at key removal.

    Features such as sealed casings protect internal components from dust, dirt, and liquids, which can often be part of vandalisation attempts. Additionally, some models incorporate reinforced keys and tamper-proof mounting options to deter and prevent damage. When looking for a durable input solution, a rugged keyboard offers significant protection against vandalism, making it ideal for public access terminals, industrial settings, and other environments where durability is paramount.

    Rugged Limited provides a range of these highly durable and vandal-resistant rugged keyboards designed for long-lasting performance in challenging conditions.

    Rugged Limited understands the importance of customisation and efficiency in demanding environments, which is why several of their rugged keyboard models are designed with programmable keys. This feature allows users to assign specific functions, macros, or shortcuts to individual keys, tailoring the keyboard to their unique operational needs and workflows. The flexibility offered by a

    rugged keyboard

    with programmable keys can significantly enhance productivity and ease of use in various industrial, public service, and specialized applications where rapid and precise input is critical. This commitment to adaptable and robust input solutions ensures that professionals can achieve optimal performance even in challenging conditions.
