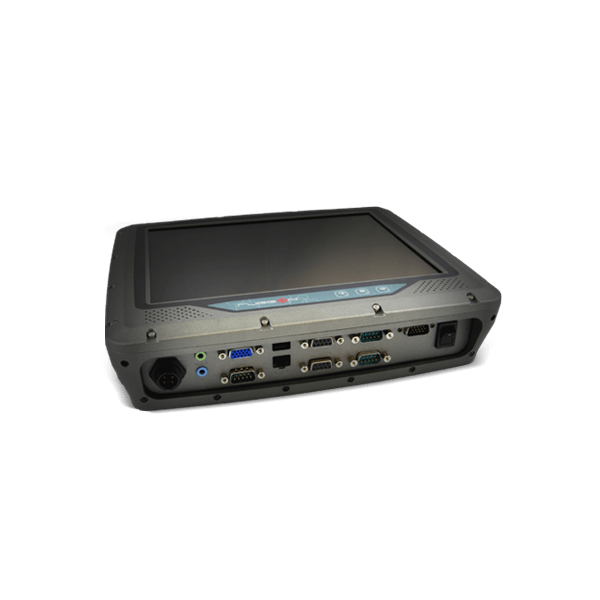

RuggVMC VM-521

Offering best-in-class ruggedness and functionality, VM-521 10.4” Rugged Vehicle Terminal is class-leading vehicle mount computer on the market.

RuggVMC VM-521 Features

  • 1000 nits high brightness display supports defroster
  • IEC 60529 IP66, MIL-STD-810G
  • Smart power management with wide range DC power input
  • SAE J1939 / OBDII supports fleet management applications
  • Industrial communications for field use


Speed﹐Reliability﹐Quality -The Next Generation of Wi-Fi

Using the latest Wi-Fi standard 802.11 ac, VM-521 provides faster processing, broader coverage, more stable and efficient transmission. Moreover, it offers higher capacity for networking of more devices to simultaneously transfer data.

Superb Visibility Anytime﹐Anywhere

Featuring 1000 nits truly sunlight readable display, VM-521 offers superb viewability even in direct sunlight. With brightness adjustable button, providing a widest brightness adjustable display to meet dim-to-black requirement. A best-in-class visibility makes VM-521 ideal for day and night operations.

Optimal Power Design of Vehicle Application

In order to fulfill diversified vehicle power requirements, VM-521 provides two types of wide range power modules – 9 to 32 VDC and 18 to 60 VDC. Moreover, battery built-in design protects VM-521 from unstable power input during the vehicle operation.

Industrial Communications for Field Use

With gigabit LAN, USB, digital I/O, COM and CAN ports, RuggON's vehicle mount computer is truly designed for field operators.

Specification
Manufacturer or Brand RuggON
Mounting Format VESA, VESA 100, VESA 75
IP Rating IP66
Screen Size 10.4"
Processor Intel
Certifications CE, FCC, CB
Operating Temperature -30°C to +55°C
Storage Temperature -30°C to +70°C
Humidity 95%, non-condensing
Shock MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Dimensions (W x H x D) : 276 x 252 x 67.3 (mm)
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info

VM-521-HR (P/N : 71-8I13200-A7012)
VM-521l with Intel Atom E3845 1.91GHz, 4GB DDR3L, 64GB SSD, and Wi-Fi / BT]

VM-521-HRD (P/N : 71-8I13200-A7010)
VM-521 with Intel Atom E3845 1.91GHz, 4GB DDR3L, 64GB SSD, Wi-Fi / BT and defrost function

VM-521-LR (P/N : 71-8I13200-A7007)
VM-521 with Intel Atom E3827 1.75GHz, 4GB DDR3L, 64GB SSD, and Wi-Fi / BT

VM-521-LRD (P/N : 71-8I13200-A7011)
VM-521 with Intel Atom E3827 1.75GHz, 4GB DDR3L, 64GB SSD, Wi-Fi / BT and defrost function

Accessories and Docking

Mounting Kit
WWAN Antenna
WIFI / BT Antenna

Box Contents

DB9 series to dual USB cable
External power cable

Buttons Programmable button x 1, brightness adjustment x 1 Optional defrost / defog button x 1
Display

10.4” XGA TFT LCD with LED backlight (1024 x 768)
1000 nits brightness
5-wire resistive touch supports defroster function

Integrated Communications

Dual Gigabit Ethernet (RJ45)
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth V4.0 Class 2
Optional 4G LTE / GPRS / HSPA+
Optional GNSS (GPS / QZSS or GLONASS)

I/O Interfaces

R S-232 x 3 (COM1 with power supported)
USB 2.0 x 2
CAN bus (SAE J1939 / OBD II supported) x 1
DI x 4, DO x 4
Audio headset jack x 1
Optional video input x 4
DC-in x 1

Memory 4GB DDR3L SODIMM, expandable to 8GB
MEMORY (Installed) 4GB DDR3L SODIMM
Power Management

9~32 VDC input, optional 18~60 VDC
Optional ignition sense
Wake on RTC
UPS backup battery

Processor, Chipset Intel® Atom® E3845 processor 1.91GHz, optional Intel® Atom® E3827 processor 1.75GHz
Ruggedness/Durability

IEC 60529 IP66
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Salt fog : MIL-STD-810G, Change1, Method 509.6

Software DashON
Sound/Audio Built in Dual Audio Speaker
Storage 2.5” SSD (64GB default), SD Slot
Touchscreen 5-wire resistive touch supports defroster function
Vibration MIL-STD-810G, Method 514.7 c2/c3/c4
  • 1000 nits high brightness display supports defroster
  • IEC 60529 IP66, MIL-STD-810G
  • Smart power management with wide range DC power input
  • SAE J1939 / OBDII supports fleet management applications
  • Industrial communications for field use
  • Optional video surveillance function
The RuggON RuggVMC VM-521 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RuggON RuggVMC VM-521 Data Terminal are listed below:-

  • Cold Store
  • Forklift Vehicle
  • In Vehicle
  • IOT
  • Monitoring Terminal

These are just some of the applications for the RuggON RuggVMC VM-521 Data Terminal The potential applications extend further than those shown above. For further information about the RuggON RuggVMC VM-521 Data Terminal or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RuggON RuggVMC VM-521 Data Terminal to suit your requirements. These options include:

  • Custom Logo
  • Processor
  • Memory
  • Storage
  • Operating System

If your application requires unusual or individual modifications not listed above for the RuggON RuggVMC VM-521 Data Terminal, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The RuggON RuggVMC VM-521 Data Terminal has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, RuggON RuggVMC VM-521 Data Terminal, must be presented to us here in the UK.
