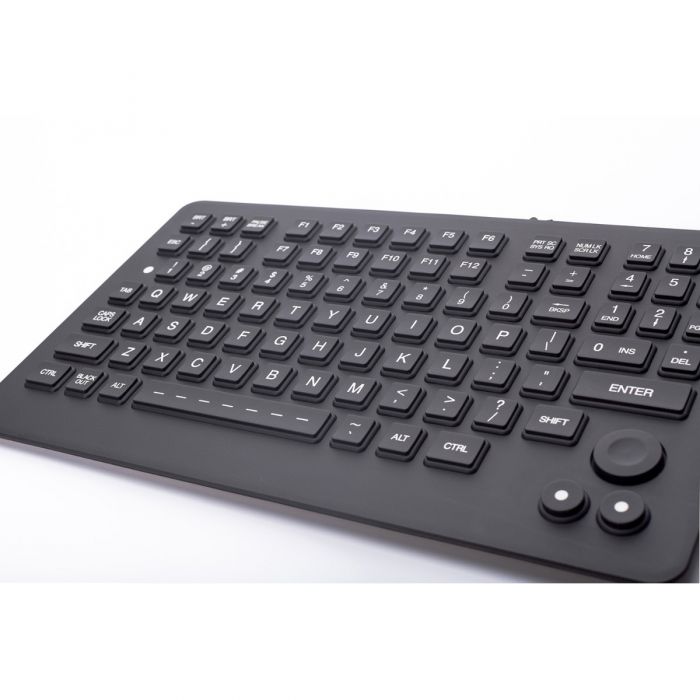

iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR

For operators in military and industrial environments, the iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard is designed for enduring demanding field use. The keyboard features a sealed ABS polycarbonate case rated to IP68 and compliant with NEMA 4X standards, protecting against dust, moisture, and submersion. It performs reliably within a temperature range from -40°C to +70°C and withstands shocks including 2-meter drops and vibration tests aligned to MIL-STD-461 for electromagnetic interference resistance.

Precision control is ensured by an integrated Force Sensing Resistor pointer, an advantage in harsh conditions where mechanical devices might falter. Adjustable green backlighting enhances visibility in low-light and night vision scenarios, aiding continuous operation. The cable includes strain relief rated for over 25 pounds pull, supporting extended field durability. Lightweight at 1.75 lbs, the keyboard supports USB connections compatible with Windows and Macintosh systems, making it a dependable interface for rugged deployments.

SLK-880-FSR Features

  • Adjustable LED Backlighting
  • Conductive Plastic Case
  • Integrated Fsr Pointing Device
  • Optional NVIS Compliant Green B Backlighting
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

NEMA 4X, UL60950

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.45" x 6.84" x 1.15" (w-h-d) 290.8mm x 173.7mm x 29.2mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

6 ft. straight (1.8 m)

Compatibility

USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 6.35 oz. +/- 0.71 oz (180g +/- 20g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

88

Pointing Device

Force Sensing Resistor

Power

USB: 300mA@5V (from CPU port)

Product Weight

1.75 lbs +/- 0.10 lbs (0.79 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 20g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR is designed and engineered for use in demanding environments where reliability, durability are essential. The SLK-880-FSR supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Rail And Transport, Security And Surveillance.

Across these sectors, the SLK-880-FSR is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the SLK-880-FSR across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SLK-880-FSR is appropriate for your specific application, please contact us.

The iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLK-880-FSR Military Grade Backlit Rugged Keyboard With FSR or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SLK-880-FSR or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
