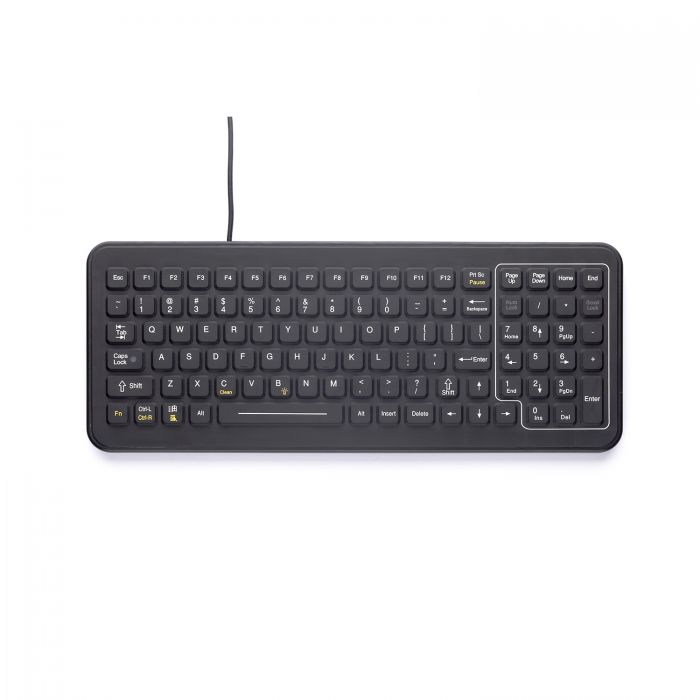

iKey SLP-101 Panel Mount Backlit Rugged Keyboard

Designed for industrial and harsh environments, the iKey SLP-101 Panel Mount Backlit Rugged Keyboard offers reliable user input with a sealed design. Its red LED backlighting ensures visibility in low-light settings, supporting continuous-duty use for 24/7 operations. Constructed with an ABS polycarbonate casing, the keyboard provides impact resistance and meets NEMA 4X standards for protection against dust, moisture, and corrosive substances.

The SLP-101 delivers tactile feedback through industrial silicone rubber keys rated for more than ten million actuations, combining durability with usability. Its operational temperature range spans from -40°C to +70°C, while shock and vibration resistance meet MIL-STD-810G requirements, making it suited for rugged settings. Compatibility with PS/2 and USB interfaces allows for easy integration into various workstation and kiosk platforms.

SLP-101 Features

  • Cleanable, Liquid Proof Design
  • Red LED Backlighting
  • ABS Polycarbonate Frame
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X, CE UL 60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

15.10" x 6.05" x 0.58" (w-h-d) 383.5mm x 153.7mm x 14.7mm SCREWS: 0.50" (12.7mm) CUTOUT: 13.70" x 4.65" (w-h) 348mm x 118.1mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m) DESIGN: "Y" PS/2 or USB Cable

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

101

Pointing Device

No Pointer

Power

PS2: 210mA@5V (from Keyboard port) USB: 210mA@5V (from CPU port)

Product Weight

1.50 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLP-101 Panel Mount Backlit Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SLP-101 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas.

Across these sectors, the SLP-101 is typically used in applications such as Construction Site Supervision And Reporting, Emergency Dispatch And Incident Management, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Port, Terminal, And Cargo Handling, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the SLP-101 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SLP-101 is appropriate for your specific application, please contact us.

The iKey SLP-101 Panel Mount Backlit Rugged Keyboard comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLP-101 Panel Mount Backlit Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLP-101 Panel Mount Backlit Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLP-101 Panel Mount Backlit Rugged Keyboard or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SLP-101 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
