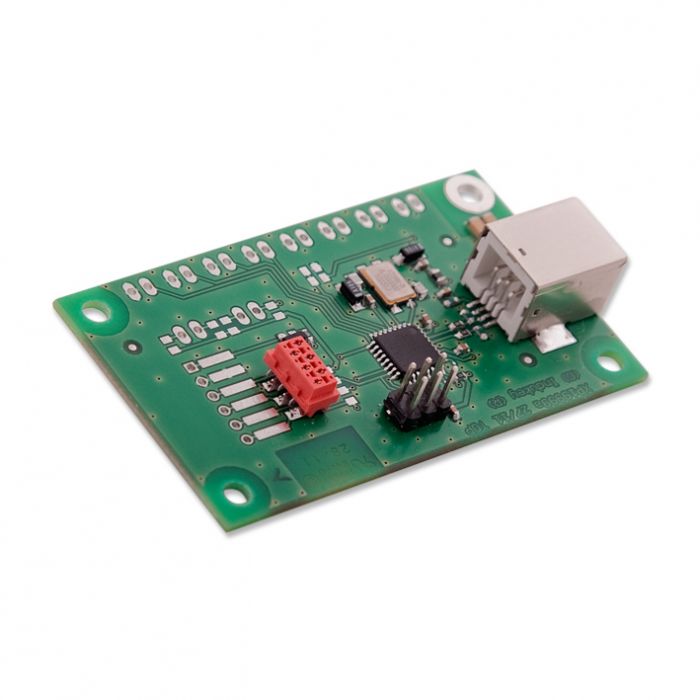

TKC-19200-DREHGEBER InduKey Keyboard Decoder

Freely programmable decoder with rotary encoder. Freely programmable decoder. With rotary encoder function. USB connection

TKC-19200-DREHGEBER Features

  • Freely Programmable Decoder
  • With Rotary Encoder Function
  • USB Connection
  • Individual Modifications On Demand
  • Individual Modifications On Demand

TKC-19200-DREHGEBER Keyboard Decoder Options



TKC-19200-DREHGEBER USB TKC-19200-DREHGEBER PS2 TKC-19200-DREHGEBER IP66-RATED TKC-19200-DREHGEBER DUSTPROOF TKC-19200-DREHGEBER CUSTOMISABLE
Freely programmable decoder with rotary encoder. Freely programmable decoder. With rotary encoder function. USB connection

Specification
Manufacturer or Brand InduKey
Mounting Format OEM
IP Rating IP66
Interface USB
Case Material ABS Polycarbonate
Housing Colour Black
Backlight Red
Certifications RoHS Compliant, CE
Temperature Rating STORAGE: 0C to + 80C OPERATING:0C to + 70C
Humidity 100% Humidity Resistant
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 65 x 50 x 10 mm
Warranty 1 Year Limited Warranty
Cable LENGTH: 4 ft coiled (1.2m) DESIGN: PS/2 or USB Cable
Compatibility All Windows and Macintosh Operating Systems
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys 24 Keys
Input Pin Header 2 x 17-pole 2.54 (2-row)
Interface Connector MICS/SMD4
Key Feedback Tactile with Mechanical Snap
Key Material Epoxy
Key Switch MATERIAL: Epoxy-Coated Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.03 oz. +/- 0.70 oz. (200g +/- 20g) FEEDBACK: Tactile with Mechanical Snap
Layers 2
Lifespan >10 Million Actuations
Mounting Filter OEM
No. Of Keys 142
Pointing Device No Pointer
Power PS/2: KEYBOARD: 200mA@5V (from Keyboard port) USB: 200mA@5V (from CPU port)
Product Weight 15 g
Programmable Programmable
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Supply Current 10 mA
Supply Voltage 5 V DC
Switch Force 200g (+/- 20g)
Switch / Key Travel 0.055 in (1.4mm)
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
  • Freely Programmable Decoder
  • With Rotary Encoder Function
  • USB Connection
  • Individual Modifications On Demand
  • Individual Modifications On Demand
  • Customisation Available On Request
The InduKey TKC-19200-DREHGEBER is used in a wide range of industries for a broad range of rugged applications. The most common applications for the InduKey TKC-19200-DREHGEBER Keyboard Decoder are listed below:-

  • Industrial Automation
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the InduKey TKC-19200-DREHGEBER Keyboard Decoder The potential applications extend further than those shown above. For further information about the InduKey TKC-19200-DREHGEBER Keyboard Decoder or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the InduKey TKC-19200-DREHGEBER Keyboard Decoder to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the InduKey TKC-19200-DREHGEBER Keyboard Decoder, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The InduKey TKC-19200-DREHGEBER Keyboard Decoder has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, InduKey TKC-19200-DREHGEBER Keyboard Decoder, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
