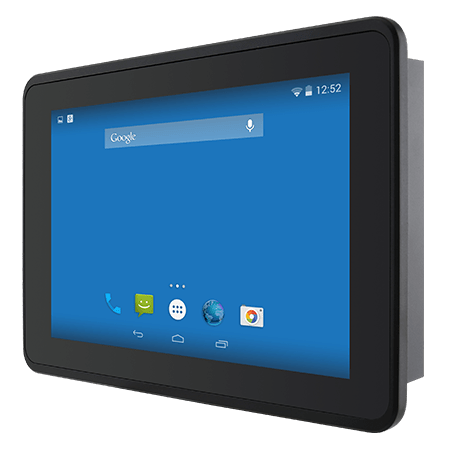

Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC
For teams working across industrial automation, the Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC offers a sealed metal housing with front IP65 protection, ensuring reliability against dust and moisture ingress. Featuring a fanless, vibration-tolerant design, it supports continuous-duty operations in factory environments. The 10.1-inch projected capacitive multi-touch screen delivers a 1280×800 resolution with 350 nits brightness and an 800:1 contrast ratio for clear visibility under various lighting conditions.
Powered by a dual-core NXP i.MX6 processor, it includes 1GB memory and onboard 8GB eMMC storage. The device is equipped with versatile I/O interfaces such as USB, RS485, and LAN ports, enabling straightforward integration within automated systems. It operates across a temperature range of 0°C to 50°C and tolerates non-condensing humidity from 10% to 90%, underlining its industrial-grade build quality. Certified to CE and FCC standards, the panel PC combines reliability and practical connectivity suitable for rugged manufacturing or field deployment.
W10FA3S-ELH2 Features
- 10.1” 1280 x 800 Resolution with P-Cap Multi-touch screen
- NXP i.MX6 Dual Core 1GHz
- Fanless cooling system and Ultra-low power consumption
- Front IP65 Water and Dust Proof
- 1 x USB , 1 x USB OTG , 1 x RS485 , 1 x RJ45 / LAN
Request a Quote
Product Type
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x800
Panel Brightness
350.0 nits
Contrast Ratio
800:1
View Angles
85-85-85-85
Active Area
216.96x135.6 mm
Processor
NXP i.MX6 Dual Core- 1.0GHz
Memory
1GB 2GB (Optional)
Storage
eMMC: Onboard 8 GB
Operating System
Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)
Dimension
267 x 182 x 47 mm
Cut out
244 x 159 mm
Weight
1.2 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1 x USB2.0 (Type-A) 1 x USB OTG
Serial Port
1 x RS485- 3pin Terminal block
LAN
1 x LAN RJ45 Connector
Indicator
1 x LED Indicator for storage
Power Input
1 x 12~24V DC- 3-Pin Terminal Block
Button
1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Mounting clips VESA screws
Power Rating
12V~24V with isolation- 3-Pin Terminal Block
Adapter
12V 50W
The Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W10FA3S-ELH2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas.
Across these sectors, the W10FA3S-ELH2 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access.
These examples demonstrate the versatility of the W10FA3S-ELH2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W10FA3S-ELH2 is appropriate for your specific application, please contact us.
The Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W10FA3S-ELH2 10.1 Inch EL Series HMI Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W10FA3S-ELH2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

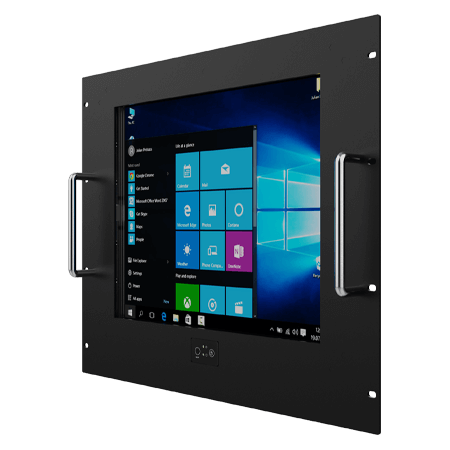

R17IAD7T-RKM1
- Sealed metal housing for dust protection
- Fan cooling system for continuous operation
- Dual 2.5 Giga LAN ports for enhanced network
- Supports Intel Alder Lake processors

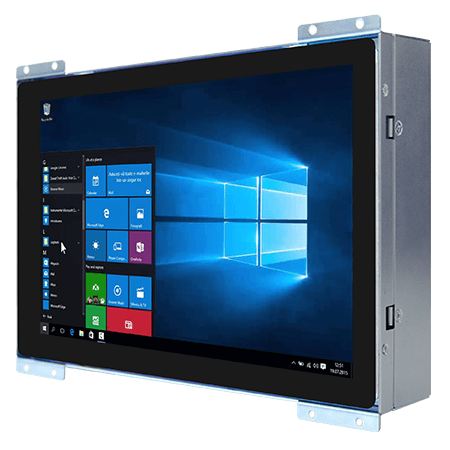

W10IE3S-POA1
