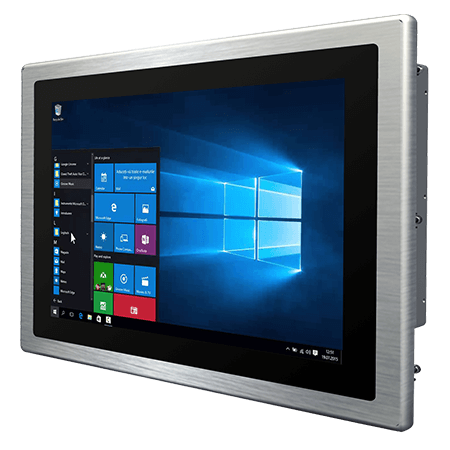

Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC
Designed for industrial automation, the Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC provides a robust human-machine interface with industrial-grade features. Its metal housing with front IP65 protection guards against dust and water, making it suitable for factory floors and processing environments. The device operates reliably within temperatures from 0°C to 50°C, supported by a fanless cooling system that reduces mechanical failures.
Powered by an Intel Core i5-1235U processor and equipped with DDR5 memory and NVMe SSD storage, the panel PC ensures responsive performance for demanding HMI tasks. It includes dual 2.5 Gigabit Ethernet controllers and multiple serial ports for easy integration into networked industrial systems. The sealed, vibration-tolerant construction meets MIL-STD-810 standards, confirming its durability under continuous-duty conditions. TPM 2.0 security and support for optional Windows 11 IoT Enterprise or Linux Ubuntu 22.04 enhance operational reliability and flexibility.
W15IAD3S-PPA4 Features
- 15.6” 1920x1080 Resolution with Projective Capacitive multi-touch screen
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- Front IP65 water and dust proof
- Aluminum housing and fanless design
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Certifications & Standards
CE, FCC, IP65, MIL-STD-810H
Ruggedness
IP Rating
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
300.0 nits
Contrast Ratio
800:1
View Angles
85-85-85-85
Active Area
344.16x193.59 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
415 x 275 x 71 mm
Cut out
374.5 x 240 mm
Weight
3.9 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15IAD3S-PPA4 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Warehousing.
Across these sectors, the W15IAD3S-PPA4 is typically used in applications such as Forklift And Materials-Handling Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Warehouse Picking And Put-Away.
These examples demonstrate the versatility of the W15IAD3S-PPA4 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15IAD3S-PPA4 is appropriate for your specific application, please contact us.
The Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15IAD3S-PPA4 15.6 Inch PP Series HMI Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15IAD3S-PPA4 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
