Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC
Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC is built around a rugged metal housing with fan cooling, designed for embedding into industrial control panels and kiosks. It supports Intel Alder Lake processors from Core i3 to i9, delivering reliable continuous-duty processing performance suitable for industrial automation and embedded computing. The open frame design allows flexible integration in limited spaces while resisting dust ingress. It operates stably between 0°C and 50°C with 10% to 90% relative humidity tolerance, ensuring resilience in varying environments.
Its 15.6-inch display offers 1366×768 resolution with optional resistive touch or protective glass for field-ready use. The system includes multiple USB 3.2 Gen2 Type A ports, dual 2.5 Gigabit Ethernet controllers, DisplayPort and optional HDMI outputs, supporting complex industrial network and peripheral connections. Security is enhanced with TPM 2.0 and optional Windows 11 IoT Enterprise compatibility. Certified to CE and FCC standards, this open frame panel PC optimises performance and durability for demanding industrial deployments.
W15IAD7T-OFA2 Features
- 15.6” 1366 x 768 Resolution Open Frame PC
- 12th Gen Intel® Core™ Alder Lake S i9 / i7/ i5 / i3 processor
- 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot)
- Integrated Dual 2.5 Gigabit Ethernet
- Multi display supports DP 1.4a / HDMI 2.0b (Optional)
- Multiple I/Os, 4 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1366x768
Panel Brightness
400.0 nits
Contrast Ratio
500:1
View Angles
85-85-80-80
Active Area
344.232x195.536 mm
Processor
Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional)
Chipset
Intel® R680E
Memory
2 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5" SSD/HDD (Only R680E/Q670E version support)(RAID support) (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
366.3 x 248 x 77.5 mm
Weight
3.6 kg
Mounting
Open frame Panel mount (Optional) VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fan Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen2x1 (10Gbps- TypeA) (R680E/Q670E version) 4 x USB 3.2 Gen1x1 (5Gbps- TypeA) (H610E version)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4a DP++ - Max resolution up to 4096x2160@60Hz 1 x HDMI 2.0b - Max resolution up to 4096x2160@60Hz (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 220W"
The Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15IAD7T-OFA2 supports a wide range of industries and operational applications.
Common deployment industries include: Education, Energy and Utilities, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Retail, Security And Surveillance.
Across these sectors, the W15IAD7T-OFA2 is typically used in applications such as Asset Tracking And Management, Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Warehouse Picking And Put-Away.
These examples demonstrate the versatility of the W15IAD7T-OFA2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15IAD7T-OFA2 is appropriate for your specific application, please contact us.
The Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15IAD7T-OFA2 15.6 Inch Open Frame Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15IAD7T-OFA2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
W10IE3S-PCH2LB
- IP65-rated front panel
- Fanless cooling design
- Dual Intel Ethernet controllers
- TPM 2.0 security
W22ITWS-MHA3
- IP65-rated front panel protection
- Intel Core i5-1135G7 processor
- Fanless metal housing design
- Modular expansion and removable SSD storage
R19IBWS-MHA1
- Fanless continuous-duty operation
- Front IP65 ingress protection
- Dual gigabit Ethernet for versatile network integration
- Modular design for easy field servicing

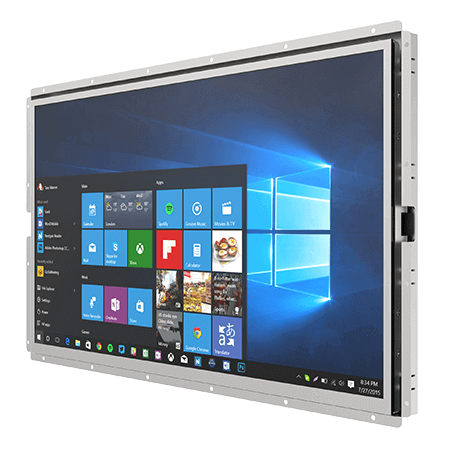

W24IAD7T-OFA2
