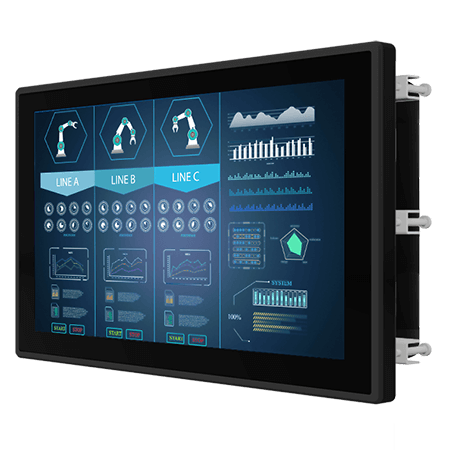

W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display
The W24L100-EHA2 is a 23.8-inch multi-touch panel mount display from Winmate, designed for industrial and commercial applications where precise touch control is essential. Its PCAP (Projected Capacitive) technology provides accurate multi-touch functionality, making it ideal for control rooms, automation, and interactive systems. The panel mount design allows for secure installation, and the display’s large size ensures excellent visibility. Built for durability and performance, the W24L100-EHA2 is perfect for environments that require reliable, high-quality touch displays.
W24L100-EHA2 Features
- 23.8", 1920 x 1080
- VGA and HDMI input
- Panel Mount
- VESA mount
- PCAP touch
Request for Quote (RFQ)
Size
23.8 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
250.0 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Display Color
16.7M Colors
Active Area
527.04x296.46 mm
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1 x USB for Touch Screen
Video
1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)
Audio
Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)
Dimension
604 x 373 x 56 mm
Weight
7.3 kg
Mounting
VESA Mount/ Panel Mount
Enclosure
Metal Housing with Aluminum Bezel
Cooling System
Fanless Design
Accessory
1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)
Optional Accessory
Remote Controller (Optional-Varies by product)
Power Rating
12V DC in 24V DC in (optional)
Button
5 Keys: - - + - Power - Esc - Enter
The W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the W24L100-EHA2 is commonly used:
These examples highlight the versatility of the W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display fits your specific needs, please contact us.
The W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display comes with a 1 Year RTB UK Warranty With Option To Extend upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display, must be presented to RUGGED in the United Kingdom.
For more information about the W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the W24L100-EHA2 Winmate 23.8 Inch Multi-Touch Panel Mount Display or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W24L100-EHA2 or need a custom Display solution designed specifically for you, our team of technical experts are ready to assist you.
