RUGGED RKB-D-8606G Stainless Steel Keyboard

Designed for industrial and outdoor applications, the RUGGED RKB-D-8606G Stainless Steel Keyboard provides reliable input performance in harsh conditions. It features a robust stainless steel front panel and an aluminium alloy base plate, ensuring structural reinforcement against mechanical stress and corrosive elements. With sealed ingress protection rated at IP65, this keyboard resists dust and water penetration, suitable for panel mount installation in rugged environments.

The keyboard supports USB and PS/2 connectivity, offering flexibility across various systems. Keys are rated for over 10 million actuations, supporting extended use in continuous-duty contexts. Operating temperature ranges from -40°C to +70°C accommodate wide environmental fluctuations. Compliance with CE, FCC, and RoHS standards confirms its industrial-grade certification. Vibration tolerance tested from 20Hz to 2kHz further supports stable operation in demanding settings. The design aims for long-life use, with a lifespan exceeding five years under active deployment.

RKB-D-8606G Features

  • Industrial Grade Stainless Steel
  • Integrated 38mm Trackball & Numeric Keypad
  • IP65 Rated
  • Compact 89 keys + 12 function keys
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

392 x 135mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Ball Material

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

392*135mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

86+3

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Trackball Diameter

38mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8606G Stainless Steel Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8606G supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Oil and Gas, Public Sector, Security And Surveillance.

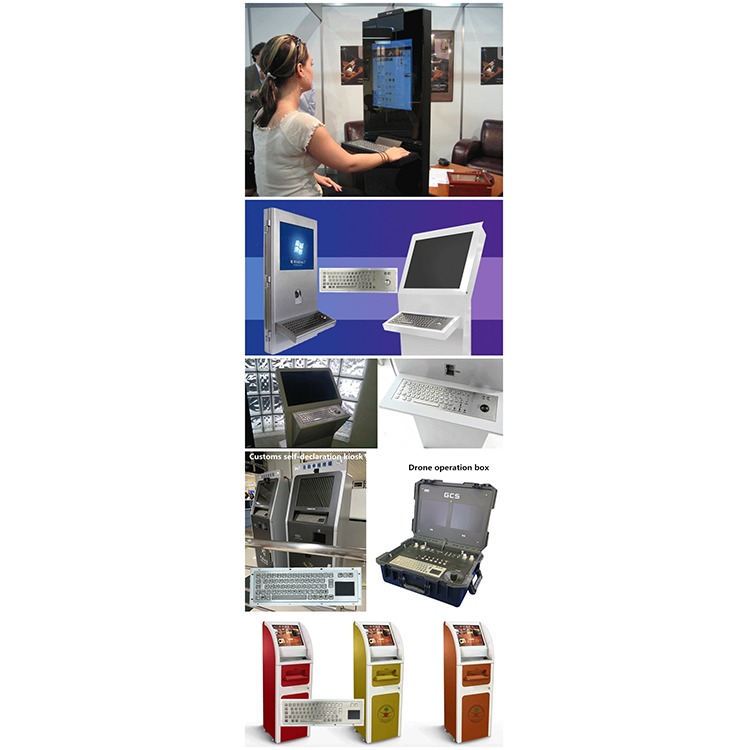

Across these sectors, the RKB-D-8606G is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.

These examples demonstrate the versatility of the RKB-D-8606G across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8606G is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8606G Stainless Steel Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8606G Stainless Steel Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8606G Stainless Steel Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8606G Stainless Steel Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8606G or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • IP65 sealed for dust and moisture resistance
    • MIL-STD-810H vibration and shock rated
    • Stainless steel frontplate with titanium plating
    • Compatible with multiple operating systems
    • IP68 sealed silicone rubber construction
    • Antimicrobial surface for hygiene
    • MIL-STD shock and vibration tested
    • Carbon-on-gold tactile key switches
    • Stainless steel IP65 dust-sealed front panel
    • Long-life carbon contact keys with 10 million actuations
    • Fully sealed trackball for precise control
    • Broad USB and PS/2 connectivity options
    • Reinforced stainless steel construction
    • IP65 ingress protection
    • Carbon-on-gold switches with 2.0mm travel
    • MTBF over 50,000 hours
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    • RUGGED offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Yes, rugged keyboards are designed with hygiene and durability in mind, making them remarkably easy to clean. Many models are constructed with surfaces that are sealed to prevent the ingress of liquids, dust, and contaminants. This often includes features like medical-grade silicone keypads that can be easily wiped down or even washed without damaging the internal components.

    This design consideration is particularly beneficial in harsh environments or settings that require stringent cleanliness. The robust sealing means that spills, dirt, and debris can be quickly and effectively removed, helping to maintain a hygienic workspace and prolonging the life of the device. For a comprehensive selection of these durable and easy-to-maintain input solutions, explore our rugged keyboard range.

    Choosing a rugged keyboard over a consumer keyboard is essential in environments where standard equipment simply won’t withstand the conditions. Rugged keyboards are specifically engineered to endure extreme temperatures, dust, dirt, liquids, and vibrations, which are common challenges in industrial, medical, and military settings.

    Unlike consumer keyboards, which are designed for typical office use, a rugged keyboard features robust construction, often incorporating sealed components and durable materials like stainless steel or silicone. This enhanced build quality prevents ingress of contaminants and protects internal electronics, ensuring reliable performance and a significantly longer lifespan.

    Furthermore, Rugged Limited’s range of rugged keyboards are built for reliability in the harshest conditions, minimising downtime and maintenance costs often associated with frequent replacement of less durable alternatives.

    Rugged Limited offers a variety of rugged keyboards, and many of these models come equipped with backlit keys. This feature is particularly beneficial for professionals operating in environments with challenging lighting conditions, such as during night shifts or in dimly lit industrial settings. The backlighting ensures that each key is clearly visible, thereby reducing errors and improving operational efficiency.

    Our selection of rugged keyboards includes options where the backlighting is a standard feature, designed to meet the demands of rigorous use. This ensures that regardless of the ambient light, the keyboard remains fully functional and easy to use, supporting continuous productivity.

    While the primary design focus for a rugged keyboard is to withstand extreme conditions and provide reliable functionality in challenging environments, some models do incorporate ergonomic considerations. These can include features like appropriately spaced keys to reduce typing strain or a comfortable angle for prolonged use.

    However, it’s important to note that a rugged keyboard prioritises resistance to factors such as dust, water, vibrations, and extreme temperatures. Therefore, while basic ergonomic elements may be present to ensure user comfort during operation, they generally won’t offer the same advanced ergonomic designs found in specialised office keyboards. This balance ensures the rugged keyboard performs reliably in demanding settings.

    Rugged keyboards are ideal for warehouse environments because they are specifically engineered to withstand conditions that would quickly damage standard peripherals. Warehouses often present a harsh environment with varying temperatures, dust, dirt, and the potential for spills or impacts. A rugged keyboard is built to resist these elements, featuring sealed enclosures that protect internal components from particulate matter and liquids.

    Rugged Limited specialises in providing industrial-grade solutions, and their rugged keyboards are designed with an emphasis on durability and longevity in demanding settings. This ensures continuous operation and reduces downtime, making them a cost-effective choice for maintaining productivity in busy warehouse operations. The robust construction of a rugged keyboard also means it can endure accidental drops or bumps, which are common occurrences in active industrial spaces.

    Rugged keyboards are specifically engineered to withstand harsh industrial, public, and mobile conditions. Their robust construction makes them ideal for environments where regular computer input devices would not be durable enough.

    These keyboards commonly feature designs that are fully sealed to protect against dust, dirt, and liquid ingress, often meeting IP (Ingress Protection) ratings. They are also built to resist vibrations, shocks, and extreme temperatures, ensuring reliable performance in challenging settings.

    Common applications for a rugged keyboard include factories, warehouses, marine vessels, and vehicles, as well as public access terminals and kiosks where durability and hygiene are critical. Many models are also designed for easy cleaning and disinfection, making them suitable for medical and food processing industries. For a comprehensive selection of these durable input solutions, explore the range of rugged keyboards available from Rugged Limited.

    An Ingress Protection (IP) rating is a critical standard for rugged keyboards, specifying the degree of protection provided against dust, dirt, and water. This two-digit code is internationally recognised and helps users understand how well a device can withstand environmental factors.

    The first digit in an IP rating signifies protection against solid objects, ranging from 0 (no protection) to 6 (dust-tight). A higher number here means greater resistance to particles entering the device.

    The second digit indicates protection against liquids, ranging from 0 (no protection) to 9 (withstanding high-pressure, high-temperature jet sprays). This is particularly important for a rugged keyboard that might be exposed to spills, rain, or even submersion. Rugged Limited offers a range of peripherals engineered to meet these demanding standards.

    Rugged Limited offers a range of durable keyboards, and while the exact level of environmental protection can vary by model, many of our rugged keyboards are engineered to withstand exposure to liquids.

    These robust input devices are often designed with features to prevent water ingress, making them suitable for industries where spills, splashes, or wash-downs are common. For specific details on the waterproof ratings of a particular rugged keyboard, it’s always best to consult the individual product specifications.
