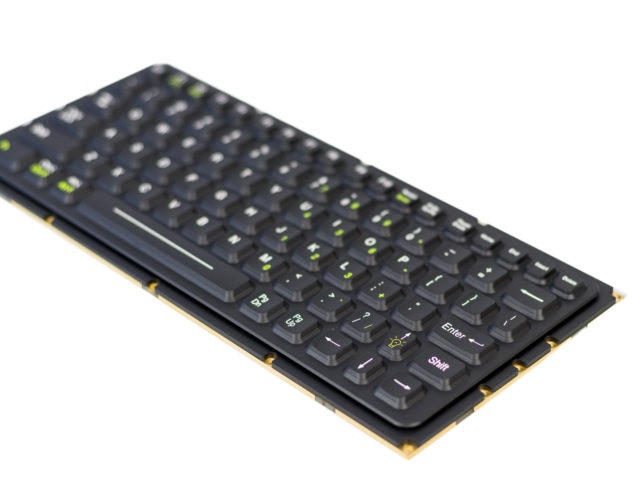

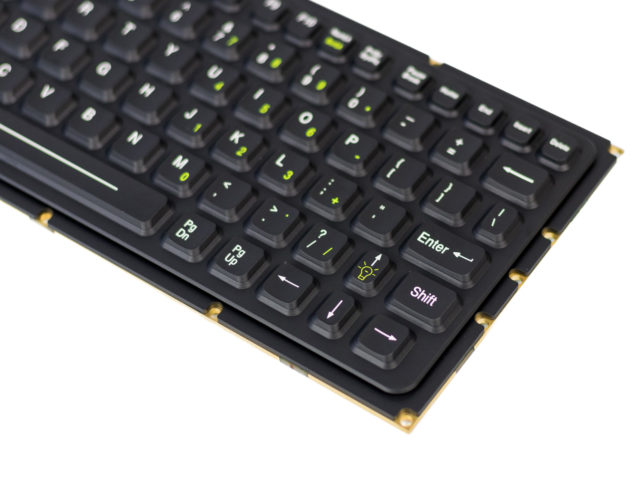

iKey SL-81-OEM Compact Rugged Keyboard

  • NEMA 4X
  • IP66 RATED
  • MIL STD
  • SHOCK
  • WIDE TEMPERATURE
  • OEM
  • USB

Designed for industrial and mobile environments, the iKey SL-81-OEM Compact Rugged Keyboard offers a reliable input solution for confined spaces where durability is essential. Its compact form factor simplifies integration within tight enclosures, while a reinforced silicone keypad meets NEMA 4X standards to resist dust, liquids, and corrosive atmospheres. The keyboard supports continuous-duty use and includes backlighting for visibility in low-light conditions common in manufacturing, transportation, and oil and gas sectors. Certified to UL60950 and FCC Part 15 Class B, it ensures electrical safety and emissions compliance. Mechanical resilience is verified by MIL-STD testing for vibration and shock, surviving multiple high-impact pulses without loss of function.

Operating temperature ranges from -40°C to 70°C accommodate demanding outdoor and industrial settings. The tactile key feedback and 10 million cycle lifespan of the silicone keys underline its suitability for extended deployment, backed by a 10-foot cable with PS/2 or USB interface compatibility across Windows and Macintosh systems. This keyboard balances compact design with robust performance for field-ready applications.

SL-81-OEM Features

  • Integrated LED Backlighting
  • 81-Key Functionality + 12 Function Keys
  • Numlock Key For Secondary Keyboard
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.35" x 5.11" x 0.42" (w-h-d) 288.3mm x 129.8mm x 10.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 or AT

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

10 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 180g (+/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

Mounting Type

VESA Mount or Desktop

No. Of Keys

81

Pointing Device

No Pointer

Power

KEYBOARD: 200mA @ 5V (from keyboard port) USB: 200mA @ 5V (from CPU port)

Product Weight

1.5 lbs (0.68 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

(180g +/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SL-81-OEM Compact Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SL-81-OEM supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Transportation.

Across these sectors, the SL-81-OEM is typically used in applications such as Construction Site Supervision And Reporting, Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the SL-81-OEM across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SL-81-OEM is appropriate for your specific application, please contact us.

The iKey SL-81-OEM Compact Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SL-81-OEM Compact Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SL-81-OEM Compact Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SL-81-OEM Compact Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SL-81-OEM or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
