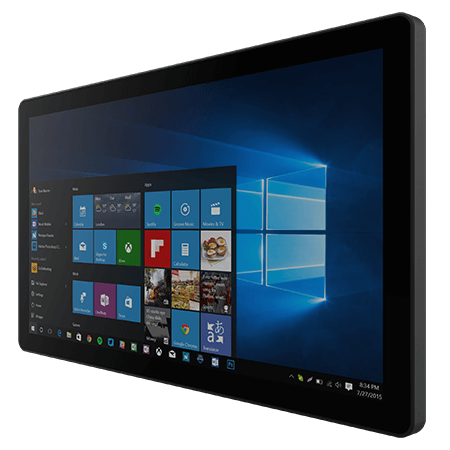

Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC
Designed for industrial automation environments, the Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC combines a projected capacitive multi-touch screen with a rugged construction tailored for continuous-duty operation. Its IP65-rated front panel provides robust resistance against dust and contaminants, ensuring dependable performance on factory floors. The unit is powered by an Intel Celeron N6211 processor, delivering efficient data processing in a fanless, vibration-tolerant enclosure suitable for temperatures from 0 to 50 6C. Featuring a 1920×1080 resolution display with 250 nits brightness and a high contrast ratio, it supports clear visualisation under varied lighting conditions.
Connectivity options include dual Intel Ethernet controllers, serial ports, and optional HDMI, enabling seamless integration within complex control systems. The device supports multiple operating systems such as Windows IoT and Linux Ubuntu, while TPM 2.0 security safeguards data integrity. Its DIM 530 x 322 x 56 mm VESA-mountable plastic casing complements the unit’s industrial grade durability, making it a reliable human-machine interface for field-ready deployments.
W22IE3S-PTA3 Features
- Low power consumption with Intel® Celeron® Elkhart Lake N6211 processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Request a Quote
Product Type
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
21.5 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
250.0 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Active Area
476.64x268.11 mm
Processor
Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional)
Memory
1 x SO-DIMM- DDR4 3200 MHz- 4GB 8GB (Optional) 16GB (Optional)
Storage
1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
Dimension
530 x 322 x 56 mm
Mounting
VESA Mount
Enclosure
Plastic
Cooling System
Fanless Design
USB Port
2 x USB3.2 Gen1x1 (Type-A)
Serial Port
1 x RS232(Default)/422/485
LAN
2 x RJ45-10/100/1000 Mbps
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker (Optional)
Indicator
Power LED Indicator
Power Rating
12V DC
Button
1 x Power Button 1 x Reset Button
Accessory
Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord"
The Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W22IE3S-PTA3 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Pharmaceutical.
Across these sectors, the W22IE3S-PTA3 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access.
These examples demonstrate the versatility of the W22IE3S-PTA3 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W22IE3S-PTA3 is appropriate for your specific application, please contact us.
The Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W22IE3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W22IE3S-PTA3 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
