iBASE AMI311-970 Embedded System
Designed for compact industrial and factory automation settings, the iBASE AMI311-970 Embedded System provides a fanless, reinforced aluminium chassis tailored for desktop or wall mounting. Its sealed enclosure and vibration tolerance up to 5 grms support reliable operation in dusty environments with temperatures up to 45°C. The system features a Mini-ITX MI970F motherboard with 3rd Generation Intel Core processors, 8GB DDR3 SO-DIMM memory, and industrial-grade 2.5-inch storage, offering continuous-duty computing for control and signage applications.
The AMI311-970 supports a wide I/O range including dual USB 3.0, DisplayPort, multiple USB 2.0 ports, and PCI-E expansion slots, ensuring flexible connectivity. With CE and FCC certifications and a low-maintenance fanless design, it suits deployments demanding durable and quiet operation. Additional service features like removable HDD trays and power indicators enhance field usability.
AMI311-970 Features
- Supports 3rd Generation Intel Core I Mobile Processors
- ISMART - For Eup/Erp Power Saving, Auto-Scheduler and Power Resume
- 1X Removable 2.5" Storage Device
- 1X PCI-E(X16) Graphics Card Expansion Slot
- Available In Black Color
- Fanless Operation
- Wall Mount Kit Included
- Over/Under/Reverse Voltage Protection
- ISMART, Iamt (9.0)
Request a Quote
Product Type
Format
IP Rating
Processor
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, FCC
Dimensions
231mm(L) x 199mm(W) x 97.75mm(H)
Chassis Color
Silver (Aluminum)
Construction
Aluminum
Expansion Slots
2x Mini PCI-E sockets + 1x CFast slot
Form Factor FILTER
Fanless System
Front Panel External I/O
Power LED, HDD LED, Power button, Reset button, 2x USB2.0 ports
Mounting
Desktop or wall mount (wall mount kit included)
Others
Expansion slots & I/O for optional BOX (AMI210-PE): 1x PCI-E(x8) slot_x005F_x000D_ 1x PCI-E(x1) slot_x005F_x000D_ 2x RS232 ports for COM5/COM6 (TX/RX signal only)_x005F_x000D_ 2x USB 2.0 ports
Power Supply
120W power adaptor

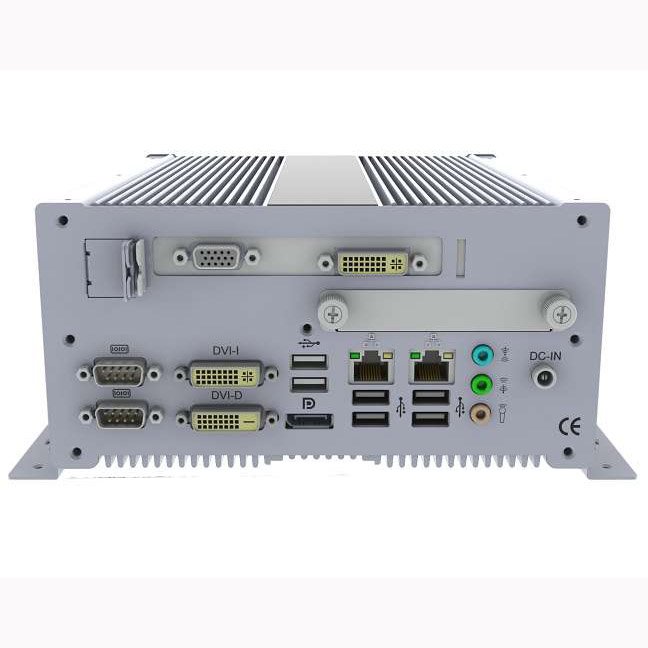

Rear Panel External I/O
1x Dual COM port_x005F_x000D_ 1x DVI-I+DVI-D connector_x005F_x000D_ 1x Dual USB3.0+DisplayPort connector_x005F_x000D_ 2x Dual USB2.0 + RJ45 connector_x005F_x000D_ 1x Audio jack (3 port)_x005F_x000D_ 1x 2.5ï¾€ï¾ Removable HDD Tray_x005F_x000D_ 1x PCI-E (x16) expansion slot
Storage
1x 2.5ï¾€ï¾ storage device ( SATA II or SATAIII interface), 100GB industrial-grade HDD
System MainBoard
MI970F
System Memory
2x DDR3 SO-DIMM, Max 16GB
System Speed
Up to 2.8GHz
Vibration
SSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation
Expansion
PCI-E
Form Factor
Fanless System
Humidity
5%-90% @ 45C, (non-condensing)
Operating Temperature
0C~ 45C (32CF~113CF)
Ordering Info
AMI311-970-3610ME Aluminum System, Fanless Design w/ Intel Corei5-3610ME(2.7GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor_x005F_x000D_ AMI311-970-3120ME Aluminum System, Fanless Design w/ Intel Corei3-3120ME(2.4GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor_x005F_x000D_ AMI311-970-1020E Aluminum System, Fanless Design w/ Intel Celeron 1020E(2.2GHz), 8GB DDR3 SO-DIMM, 2.5ï¾€ï¾ 100GB industrial-grade HDD, 120W power adaptor
Power Input
DC
Processor
Intel
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
Temperature Rating
OPERATING: 0C to +50C / STOREAGE: -20C to +60C
The iBASE AMI311-970 Embedded System is designed and engineered for use in demanding environments where reliability, durability are essential. The AMI311-970 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Natural Resources and Mining, Oil and Gas, Public Sector, Retail.
Across these sectors, the AMI311-970 is typically used in applications such as Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Medical Carts And Clinical Mobile Workstations, Process Control And Shop-Floor Monitoring, Quality Control And Inspection.
These examples demonstrate the versatility of the AMI311-970 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the AMI311-970 is appropriate for your specific application, please contact us.
The iBASE AMI311-970 Embedded System comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE AMI311-970 Embedded System, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE AMI311-970 Embedded System or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE AMI311-970 Embedded System?
If you have any questions about the iBASE AMI311-970 please get in touch today, our team of technical experts are ready to assist you.
