At a glance
- Chassis mount displays are screens in their own sealed housing, fitted by VESA, yoke or similar mounts rather than through a panel cut-out.
- The range has 72 products, with screen sizes from 5.7 inches to 55 inches.
- Sealing is stated as IP69K on 5 products, IP67 on 4, IP66 on 9 and IP65 on others, so compare the stated rating, not the word “sealed”.
- Stainless steel housings are stated on many products, and a washdown family lists touch as resistive or projected capacitive.
- Most listings give an operating range starting at 0 °C, so cold stores and outdoor sites need a datasheet check.
What is a chassis mount display?
A chassis mount display is a screen supplied in its own enclosure. The housing carries the sealing, so the screen can stand on a VESA arm, a yoke or a bracket without a panel behind it. This guide is for the engineer or buyer choosing a finished screen. If the screen will sit in a cut-out, see panel mount displays. For an overview of every fitting method, see rugged displays.
Which construction suits which job?
| Construction | Stated sealing | Touch in the data | Sizes and typical use |
|---|---|---|---|

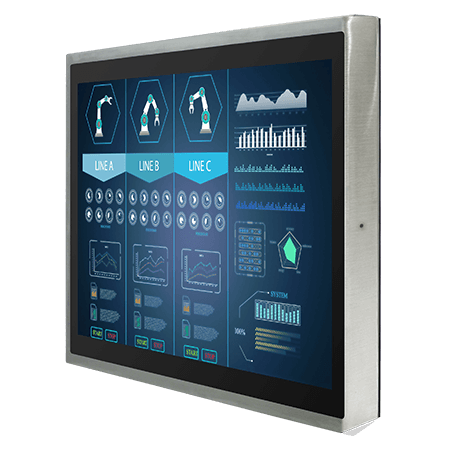

| Stainless steel washdown family, fanless | IP65, IP67 or IP69K | Resistive (gloves) or projected capacitive | 10.4 to 55 inches; food, pharmaceutical, chemical |

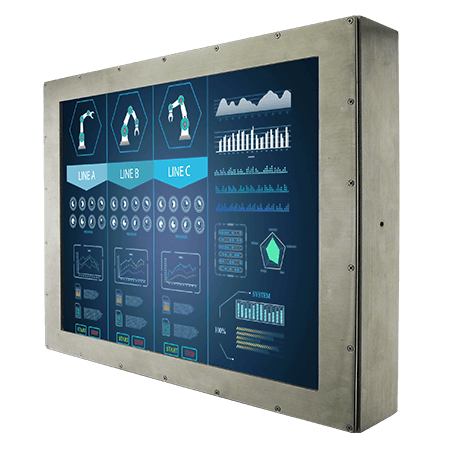

| Stainless steel chassis | IP66 on 9 products | Not stated | 5.7 to 20 inches; marine and industrial |

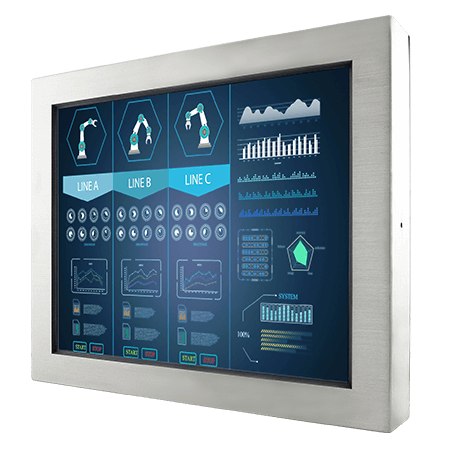

| Sealed chassis, IP65 front | IP65 | Not stated | 6.5 to 17 inches; marine and industrial |
| Dust-sealed chassis, wide viewing angles | Dust sealing, no IP number stated on most | Not stated | 5.7 to 46 inches; consoles and marine |
How do mounting and connectors work?
VESA mounting is stated on many chassis displays, with yoke mounts added on the stainless family. That family also lists waterproof M12 connectors for power, video and touch. A mount is only as sealed as its weakest connector, so check cable entry as well as the housing. Check the fitting method on the listing before ordering.
What do the listings say about brightness, power and temperature?
Stated brightness is 250 to 500 nits on the stainless family and 180 to 500 cd/m2 on the other models that state it. Where washdown models state a supply it is 12 V DC on two, or 100 V to 240 V AC; other models list a universal 90 V to 260 V AC input, 12 V DC, 24 V DC or 9 V to 36 V DC. Operating ranges are given as 0 °C to 45 °C on most stainless models and 0 °C to 40 °C on many others. Some listings state MIL-STD-810G for vibration and shock. Read the standards cheat sheet and IP ratings explained.
Where do washdown and marine sites fit?
Listings for stainless models mention food processing, pharmaceutical and chemical sites, and for sealed models mention marine and industrial consoles. See IP69K and high-pressure washdown, food and beverage processing and marine and offshore.
What to check on the datasheet
- Ingress rating, and whether it covers the front only or the whole housing.
- Housing material and any washdown claim.
- Mount pattern, yoke fittings and weight.
- Connector type, video inputs and touch cable.
- Supply voltage and whether an adapter is included.
- Operating and storage temperature.
- Touch type, or no touch.
How do you choose?
- Confirm that a free-standing housing suits your site better than a panel fit.
- Set the sealing target for the wash or weather exposure.
- Choose the size and the touch type, if any.
- Match video input, connector type and supply voltage.
- Check the temperature range against your coldest and warmest day.
- Request the drawing and datasheet for each shortlisted model.
What to tell us for a quote
Send the screen size, mounting method, washdown or weather exposure, host video output, power supply, touch needs and volumes.
Related guides and ranges
Frequently asked questions
How is a chassis mount display different from a panel mount display?
A chassis mount display has its own housing and stands on a VESA, yoke or bracket mount. A panel mount display is fitted through a cut-out and sealed at the front face.
Which sealing ratings are stated?
IP69K on 5 products, IP67 on 4, IP66 on 9 and IP65 on others. Confirm what the rating covers on the exact model.
Do these displays have touch?
The washdown family lists resistive touch that works with gloves, or projected capacitive multi-touch. Touch is not stated on many others, so check the listing.
What screen sizes are available?
Sizes run from 5.7 inches to 55 inches. Larger formats such as 37 to 46 inches are listed as dust-sealed chassis models.
Can I use one outdoors?
Some listings mention outdoor or semi-outdoor use, but most operating ranges start at 0 °C. Check the temperature range and the sealing of the exact model.
