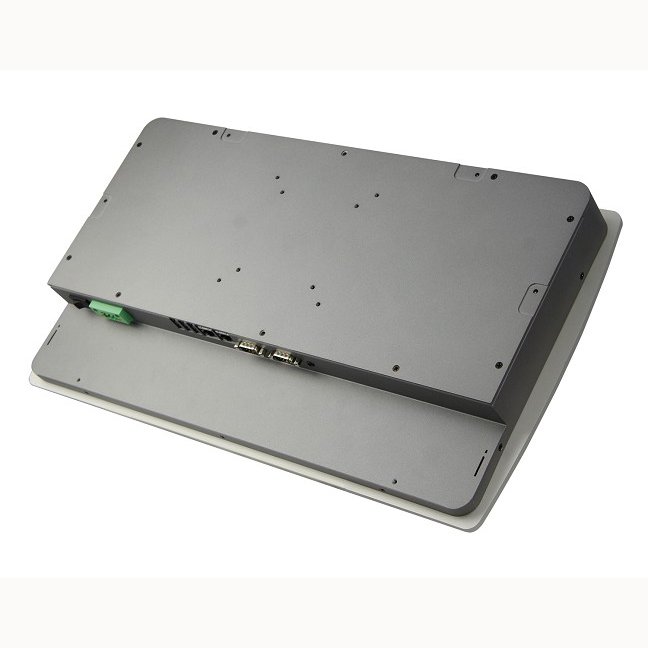

iBASE ASTUT-W153-PC1S Panel PC
For teams working across industrial and field settings, the iBASE ASTUT-W153-PC1S Panel PC offers a rugged solution with a 15.6-inch projected capacitive touch display optimized for reliable interaction. Built with a reinforced aluminium chassis and dust-sealed design, it withstands dust and moisture exposure common in manufacturing, logistics, and transport environments. Its fanless architecture and vibration tolerance support continuous operation without additional maintenance.
The system powers on a wide 12 to 36V DC input range, accommodating fluctuating power sources found in mobile and industrial deployments. Certified to CE and RoHS standards, it operates within a temperature range of -20 60 6C and humidity resistance of 10-90% non-condensing, enhancing dependability under varied conditions. Expansion options via PCI-E and Mini PCI-E slots allow for customized configurations. Networking is supported through dual gigabit Ethernet ports, while the device runs Windows 7, 8.1, or 10 64-bit, matching diverse software requirements.
ASTUT-W153-PC1S Features
- Flat Bezel Design With Projected Capacitive Touch Screen
- Supports Optional Digitizer Touch Pen
- Optional Integrated Wireless Communications, Such As Wi-Fi/Lte/RFID
- I/O Cover For Cables Arrangement
- Integrated Aluminum Housing, Perfect Thermal Design
- 12V To 24V DC ( 20%) Wide-Range Power Input
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Processor
Operating System
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
Rock switch
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C ~ 50C
Ordering Info
ASTUT-W153-PC1S 15.6ï¾€ï¾ 1366 x 768 panel PC, Intel Pentium processor N3710, Projected capacitive touch screen, optical bounding, 4GB DDR3L memory, 64GB 2.5ï¾€ï¾ half size open frame SSD, 1x PCI-E (x1), 12~24V DC ï¾± 20% power input, w/o adaptor Power adaptor (optional) AC 90V~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Additional Graphics
None
Audio
Line-out
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
2x Speaker
Chassis Material
Aluminum sliver with front bezel hairline
Construction
Black aluminum front bezel and black steel back cover with aluminum heat-sink
Contrast
20.834027777778
Digital I/O
None
Display Interface
1x VGA
Display Type
15.6ï¾€ï¾ TFT-LCD
Expansion Slot
1x PCI-E (x1)
HDD
1x 2.5ï¾€ï¾ SATA
Internal Expansion Bus
1x Mini PCI-E half/full size 1x Mini PCI-E half size
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE
Light Transmission (%)
85
Luminance (cd/m2)
300
Max. Color
16.7M
Max. Resolution
1366 x 768
Membrane Control
None
Memory
1x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB
Mounting
Panel mount and VESA 75x75, 100x100 mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows 10, Windows 8.1 64bits, Windows 7 64 bits
Point of touch
2
Power
3-pin terminal block
Power Button
Rock switch
Power Input
12~36V DC input
Power Input Range
12V~24V DC
Processor, Chipset
Intel Pentium Processor N3710 4 Cores @ 1.6GHz
Removable Slot
None
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
COM1/2 RS-232/422/485 isolated COM3 RS-232
Thermal Design
Fanless
Touch Type
Projected capacitive
Touch Type Filter
Capacitive
USB
4x USB 2.0
USB 2.0
0
USB 3.0
3
View Angle (H/V)
160/160
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C~60C
The iBASE ASTUT-W153-PC1S Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The ASTUT-W153-PC1S supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Rail And Transport.
Across these sectors, the ASTUT-W153-PC1S is typically used in applications such as Construction Site Supervision And Reporting, Emergency Dispatch And Incident Management, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the ASTUT-W153-PC1S across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the ASTUT-W153-PC1S is appropriate for your specific application, please contact us.
The iBASE ASTUT-W153-PC1S Panel PC comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ASTUT-W153-PC1S Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ASTUT-W153-PC1S Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE ASTUT-W153-PC1S Panel PC, or would you like to discuss a customised solution?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iBASE ASTUT-W153-PC1S or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
