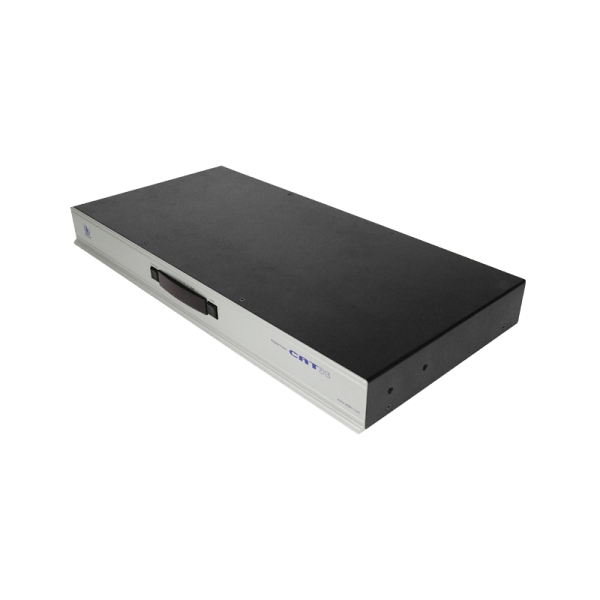

AVX4016 Adder Technology KVM
The ADDERView CATx Series is a range of secure, KVM via CATx switches that provides 4 concurrent local, remote or global users with BIOS-level control of up to 24 multiplatform servers. A “plug-and-play,” 1U appliance, the ADDERView CATx is a completely self-contained system that installs in minutes combining high security, flexibility, integrated remote power control, faultless quality video and optional CD quality audio.
The two members of the series are the ADDERView CATx supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 4 x remote over CATx) and the ADDERView CATx IP supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 2 x remote over CATx, 1 x global over IP)
Exceptionally high video performance to local, remote and global users
True multi-platform support
Flash upgradeable CAMs available for PS/2, USB and Legacy Sun keyboard and mouse support with optional audio
Country code reporting
DDC and keyboard and mouse emulation
PS/2 or USB keyboard and mouse control
Expand using CATx cascade connections with simple user intuitive set up
Optional CD quality audio when using correct Computer Access Module (CAM)
Power control functions supported via dedicated serial port
Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
Global users (IP) can chose between HTTP or RealVNC for highly secure connections and high performance.
AVX4016 Features
- True Multi-Platform Support
- Ddc and Keyboard and Mouse Emulation
- PS2 Or USB Keyboard and Mouse Control
- Ideal For Cat5/6/7 Cable
- Audio Connectivity
- Audio Connectivity
Request for Quote (RFQ)
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
Robust Metal Case
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Additional Accessories
Computer Access Modules (CAMs): PS/2-style Connectors:Analog video, PS/2-style keyboard and PS/2-style mouse: CATX-PS2 PS/2-style with audio Connectors:Analog video, PS/2-style keyboard, PS/2- style mouse and 3.5mm audio jack: CATX-PS2A USB Connectors:Ana
Case Material
Robust Metal Case
Computer Connections RX
All RJ45 style Network port (ADDERView IP models only) RJ45 10/100Mb auto-sensing Ethernet port
Hardware Compatibility
Supports PC, Sun (USB & 8-pin styles), Mac (USB), RS/6000, Alpha and SGI computers using PS/2, USB or Sun Computer Access Modules.
KVM Connections
DB9 female for flash upgrade, syncing boxes and other special functions. DB9 male for RS232 triggered power switches. DB9 Male (ADDERView IP only) for modem connection.
Local Console
Video: HDD15 socket Keyboard/Mouse: USB type A sockets Audio: 3.5mm stereo jack
Local KVM Console Connection
Video: HDD15. Keyboard/Mouse: MiniDin6 / USB type A. Audio: 3.5mm stereo jack
No. Of Ports
16
OS Compatibility
Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Physical Design
ADDERView CATx: 1U high metal case 482mm/19Æ’? (w), 215mm/8.5Æ’? (d), 45mm/1.8Æ’? (h) ADDERView CATxIP: 1U high metal case 482mm/19Æ’? (w), 280mm/8.5Æ’? (d), 45mm/1.8Æ’? (h) (Rack mount kits included)
Power
IEC style power lead (100 Æ’?? 240V AC, 50-60Hz). Redundant via 2.5mm DC jack (5V DC, 6A).
Software Compatibility
Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Video Modes
Support for standard PC, Sun and Mac video modes up to a resolution of 1600 x 1200 @ 60Hz. DDC emulation supported via connected Computer Access Modules (CAMs).
Operating Temperature
OPERATING: 0C to +40C
Ordering Info
16 port version: AVX4016IP-XX 24 port version: AVX4024IP-XX XX= Mains Lead Country Code: UK = United Kingdom US = United States EURO = Europe AUS = Australia
The AVX4016 Adder Technology KVM is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the AVX4016 is commonly used:
These examples highlight the versatility of the AVX4016 Adder Technology KVM across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this KVM fits your specific needs, please contact us.
The AVX4016 Adder Technology KVM comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, AVX4016 Adder Technology KVM, must be presented to RUGGED in the United Kingdom.
For more information about the AVX4016 Adder Technology KVM or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the AVX4016 Adder Technology KVM?
If you have any questions about the Adder Technology AVX4016 please get in touch today, our team of technical experts are ready to assist you.
