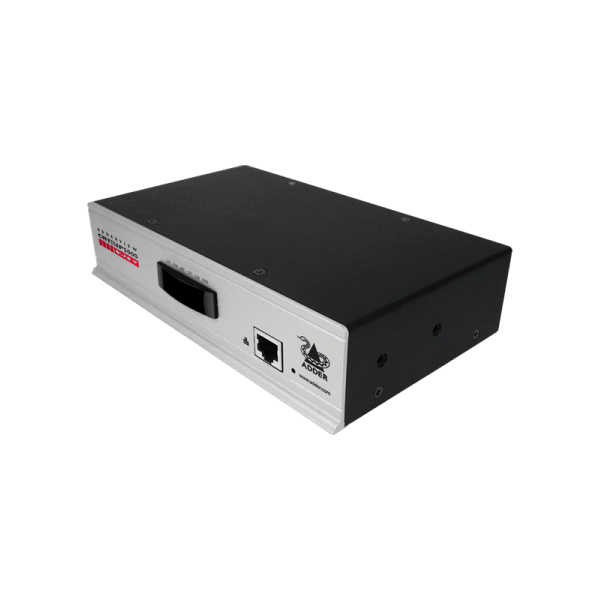

AVX5016IP Adder Technology KVM

The ADDERView AVX5016 IP is the culmination of ADDER's KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

AVX5016IP Features

  • 4 Simultaneous Ip Users
  • Hd-Kvm Full 1080P
  • 24 Bit Colour
  • Sun, Pc, Mac Compatible
  • USB, VGA, R232, RJ45 Interface

Manufacturer: Adder Technology




Using ADDER's CAM modules, you can connect the switch via CAT5e cable to any type of server including PC, Mac and Sun. Country code reporting, DDC and continuous keyboard and mouse emulation further ensure faultless operation across your unique installation.

SERIAL CONSOLE SERVER (SCS):

The AVX5016 IP can also be used as a serial console (sometime known as a terminal server) simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to target command line interface (CLI) as well as console access to network switches. What makes the AVX5016 really unique is that you can mix as many of the 16 ports for use with either serial console or keyboard-video-mouse. This makes the AVX5016 one of the most flexible KVM over IP products on the market today.

4 simultaneous IP users

Allows 4 simultaneous global users to connect via IP to any of the 16 connected devices.

Local user support

Direct connection for 1 local user to connect straight into the switch.

LDAP integration

Authenticate users against your existing LDAP infrastructure. This feature can be enabled and disabled.

RS232 control

Integrated RS232 gives you the ability to control other external devices such as power management devices.

Ecopulse circuitry

Ecopulse powers down unnecessary circuits when not required to reduce power requirements. Over the life of the product this will save significant power resources.

Encryption and Authentication

This enterprise grade KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

Configuration

The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.

Open Architecture

ADDER's continuous improvement policy further ensures your system against future hardware changes - ADDER offers free firmware updates for the life of the product. Furthermore, ADDER's open architecture design philosophy will not tie you in to specific manufacturer's equipment.

ADDER.net

Network management software, automating the task of managing your network control hardware.
Specification
Manufacturer or Brand Adder Technology
Mounting Format Desktop, Free Standing
Interface PS2, RS232, USB
Case Material Robust Metal Case
Certifications CE, RoHS compliant
Operating Temperature OPERATING: 0C to +40C
Warranty 1 Year Limited Warranty
Ordering Info CATx IP 16 port version: AVX5016IP-XX XX= Mains Lead Country Code: UK = United Kingdom US = United States EURO = Europe AUS = Australia
Additional Accessories Computer Access Modules (CAM): One required per connected computer. PS/2 style Connectors: Analog video, PS/2 style keyboard and PS/2 style mouse : CATX-PS2 USB Connectors: Analog video, USB keyboard/mouse : CATX-USB SUN and Audio Connectors: Analog video
Case Material Robust Metal Case
Computer Connections RX All RJ45 style Network port (ADDERView IP models only) RJ45 10/100Mb auto-sensing Ethernet port
Hardware Compatibility Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).
KVM Connections DB9 female for flash upgrade, syncing boxes and other special functions. DB9 male for RS232 triggered power switches. DB9 Male (ADDERView IP only) for modem connection.
Local Console Video: HDD15 socket, Keyboard/Mouse: USB type A sockets
Local KVM Console Connection Local console connections as stated above. CATx computer connections: all RJ45 style. 10/100 auto-sensing Ethernet network port: RJ45. Power connection: 2.5mm DC jack (5V DC, 2.5A). RS232 triggered power switching and syncing: DB9 plug
Mounting Filter Desktop
No. Of Ports 16
OS Compatibility Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Physical Design Compact 1U high metal case construction suited for rack mounting (rack mount kits available).
Power Mains adaptor with IEC style power lead (included). Input: 100-240VAC 0.5A 50-60Hz Output: 5VDC 2.5A
Software Compatibility Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Video Modes Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz (including Full HD - 1920 x 1080). DDC emulation supported via connected Computer Access Modules (CAMs). Product includes an in-built DDC EDID configurator that enab
  • 4 Simultaneous Ip Users
  • Hd-Kvm Full 1080P
  • 24 Bit Colour
  • Sun, Pc, Mac Compatible
  • USB, VGA, R232, RJ45 Interface
  • Audio Connectivity
The Adder Technology AVX5016IP is used in a wide range of industries for a broad range of rugged applications. The most common applications for the Adder Technology AVX5016IP KVM are listed below:-

  • Broadcast Consoles
  • Digital Signage
  • Industrial Automation
  • Smart Factory
  • Smart Office
  • Industry 4.0

These are just some of the applications for the Adder Technology AVX5016IP KVM The potential applications extend further than those shown above. For further information about the Adder Technology AVX5016IP KVM or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the Adder Technology AVX5016IP KVM on our website.

If your application requires unusual or individual modifications for the Adder Technology AVX5016IP KVM, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The Adder Technology AVX5016IP KVM has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, Adder Technology AVX5016IP KVM, must be presented to us here in the UK.
