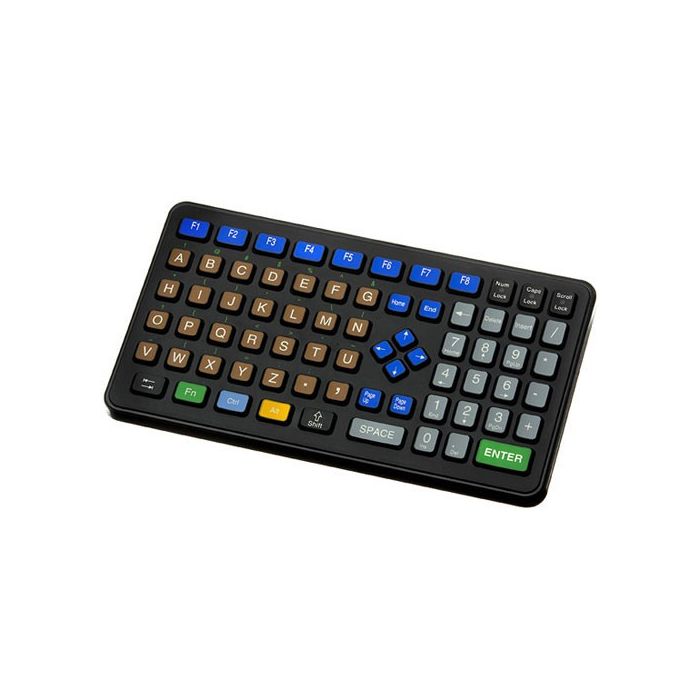

DP-72 iKey Keyboard
iKey’s innovative DP-72 mobile keyboard was designed to accommodate rugged applications in manufacturing, material handling and remote data entry. Its unique, oversized keys are colour arranged and feature a roomy layout for convenient gloved-hand use.
The iKey DP-72 features a small-footprint design, mounting holes in its case and a large numeric pad. Like other keyboards in the iKey line, the DP-72 is constructed using a robust polycarbonate case and industrial silicone keypad, sealing it from dust, liquids and corrosives.
DP-72 Features
- 72-Key Functionality
- 8 Function Keys
- Lightweight ABS Polycarbonate Case
- USB and PS2 Configurations Available
- Various Keyboard and Language Layout Options
- Customisation Available On Request
Request for Quote (RFQ)
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
United States
Backlight
No Backlight
Case Material
ABS Polycarbonate
Certifications
IP Rated, NEMA 4X UL60950, FCC Part 15 Class B
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
11.40" x 6.30" x 1.86" (w-h-d) 289.56mm x 160.02mm x 47.24mm
Height
(37,5 mm)
Housing Colour
Black
Humidity
100% Humidity Resistant
Cable
LENGTH: 9 ft coiled (3m) DESIGN: PS/2 or USB Cable
Compatibility
PS/2 KEYBOARD: All Windows Operating Systems USB KEYBOARD: All Windows and Macintosh OS
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys
8 Keys
Height
(37,5 mm)
Key Feedback
Tactile with Mechanical Snap
Key Material
Industrial Silicone Rubber
Key Switch
MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 4.74oz +/- .71oz (135g +/- 20g) FEEDBACK: Tactile with mechanical snap
Lifespan
>10 Million Actuations
No. Of Keys
72
Pointing Device
No Pointer
Power
KEYBOARD: 50mA@5V (from CPU port)
Product Weight
2.00 lbs +/- .10 lbs (0.91 kg +/- 0.05 kg)
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force
135g (+/- 20g)
Switch / Key Travel
0.055 in (1.4mm)
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Length
(117 mm)
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Temperature Rating
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Width
(65 mm)
The DP-72 iKey Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the DP-72 is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the DP-72 iKey Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard fits your specific needs, please contact us.
The DP-72 iKey Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, DP-72 iKey Keyboard, must be presented to RUGGED in the United Kingdom.
For more information about the DP-72 iKey Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the DP-72 iKey Keyboard or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey DP-72 or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
