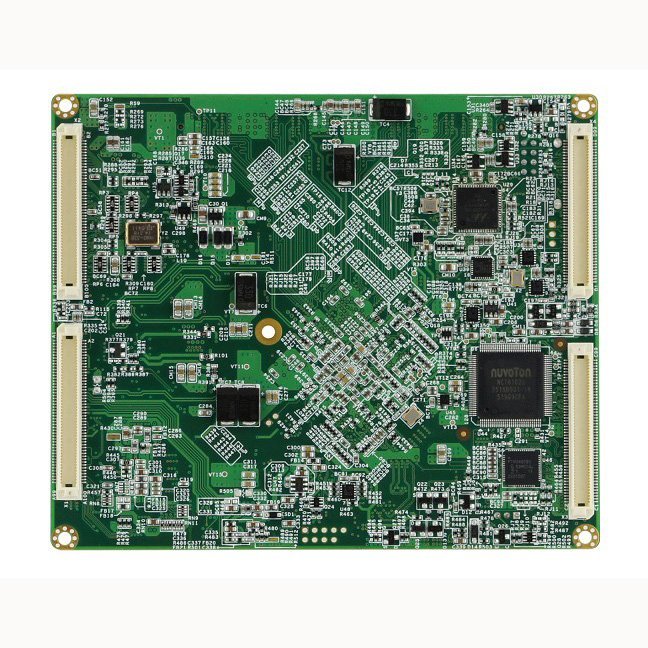

ET839 iBASE CPU Card

ET839 IBASE CPU Card

ET839 Features

  • Original OEM Module
  • Rohs Compliant, CE
  • ISMART- For Auto-Scheduler and Power Resume
  • 1X USB 3.0 and 3X USB 2.0
  • Wide Temperature Operating (-30C~65C)

Manufacturer: iBASE




The ET839 ETX module supports industrial wide temperature (-40°C ~ +85°C) and low heat dissipation efficiency, making it ideal for use in Fanless applications in harsh environments. The platform is powered by a 1.91GHz quad-core Intel Atom Processor E3845 SoC that features scalable performance that allows simple replacement or upgrade of current Bay Trail-I ETX solutions without changing the baseboard, regardless of the chassis and thermal designs.
Specification
Manufacturer or Brand iBASE
Mounting Format OEM
Form Factor CPU Module
Processor Intel
Certifications RoHS Compliant, CE
Operating Temperature -40C~85C (-40CF~185CF)
Storage Temperature -40C~90C (-4CF~194CF)
Humidity 10-90% Humidity Resistant (non-condensing)
Dimensions 95mm x 114mm (3.74タワ x 4.49タワ)
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info ET839-I45 Intel Atom E3845 SoC ETX (3.0) CPU Module w/CRT, LVDS and 10/100 LAN
Audio Intel Atom SoC built-in HD Audio w/ Realtek ALC662 codec
Auto Control and Monitoring 256 segments, 0, 1, 2...255 (sec/min)
BIOS AMI BIOS
Build-In Graphic Controller Intel HD graphics supports OpenGL 3.0, DirectX 11, OpenCL 1.1 MFX Hardware Video Decoder MPEG-2, AVC, VC-1, JPEG
Chassis Color Black
Construction Aluminum & Steel
CPU Package rPGA988B for 3rd Generation Intel Core i7/i5/i3/ Celeron QC/ DC processors
Display Interface Support CRT , 24-bit dual channel LVDS & 1x DDI port
Expansion Slots 4x ETX connectors for PCI bus, USB, audio, CRT, LVDS, LAN, COM ports, LPT, IDE, PS/2 keyboard/mouse and ISA bus
Form Factor FILTER ETX Module
Front Panel External I/O 1x Power LED 1x HDD LED 1x Power button 1x Reset button 2x USB 2.0 ports 1x Line-out, 1x Mic-in
H/W Monitor Yes
I/O Chipset Nuvoton NCT6102D 1x KB, 1x Mouse , 1 x Printer , 2x RS232
LAN Connector On baseboard
LAN Controller Realtek 8106E 10/100Mbps LAN
Mounting Desktop or wall mount (wall mount kit included)
Others Fintek F85226 ( LPC to ISA)
Power Supply Optional 60W power adaptor
Rear Panel External I/O 1x USB 2.0 port 1x USB 3.0 port 1x DisplayPort 1x VGA port 2x DB9 for COM1(RS232/422/485, select from BIOS) /COM2 1x RJ45 GbE connector 1x DC jack with lock or terminal block (12V DC-IN)
SATA II 1 port on board (3.0Gb/sec)
Shock Operating: 20G / 11ms Non-operating: 40G / 11ms
Storage 1x 2.5" HDD or SSD
System MainBoard IB898-I25P
System Memory 1x DDR3L SO-DIMM, Max. 4GB
System Speed 1.91GHz
USB 4 ports (USB 2.0) via baseboard
VGA Controller Intel Atom SoC integrated Gen. 7 4Eus graphics
VGA Memory Shared memory
Vibration Operating: 0.25Grms / 5~500Hz Non-operating: 1Grms / 5~500Hz
Watchdog Timer 256 levels
  • Original OEM Module
  • Rohs Compliant, CE
  • ISMART- For Auto-Scheduler and Power Resume
  • 1X USB 3.0 and 3X USB 2.0
  • Wide Temperature Operating (-30C~65C)
  • Supports 3X Mini PCI-E (2X Full-Size & 1X Half Size )
  • Supports 1X 2.5" SATA HDD Device Or Ssd
  • Wall Mount Kit Included
  • 12V DC Power Input
The iBASE ET839 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE ET839 CPU Card are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE ET839 CPU Card The potential applications extend further than those shown above. For further information about the iBASE ET839 CPU Card or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE ET839 CPU Card on our website.

If your application requires unusual or individual modifications for the iBASE ET839 CPU Card, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE ET839 CPU Card has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE ET839 CPU Card, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
