iBASE ET950 CPU Card

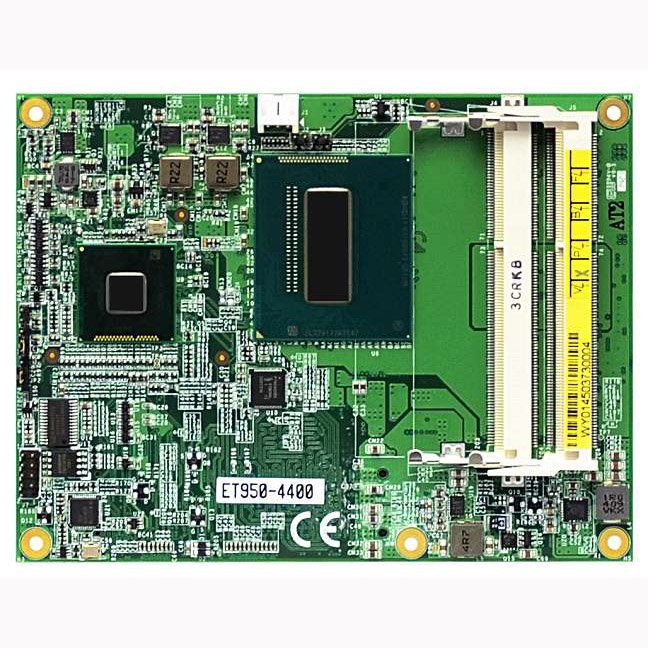

iBASE ET950 CPU Card is a COM Express Basic Module designed for industrial embedded computing requiring compact and continuous-duty performance. It supports 4th Generation Intel Core i7/i5/i3 processors, delivering powerful processing in a sealed form factor resistant to up to 90% non-condensing humidity and operating between 0°C and 60°C. The ET950’s rugged design suits industrial automation, transportation, and similar applications where environmental stability is essential.

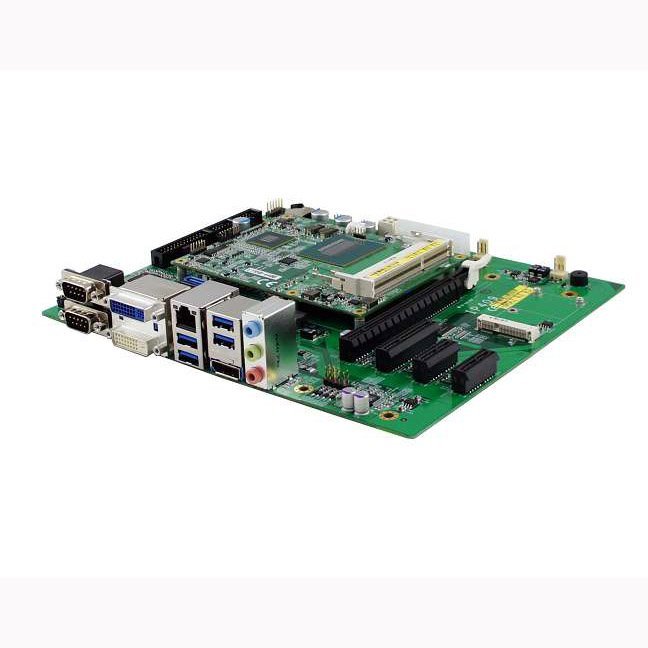

The CPU card integrates with the IP409 Flex ATX baseboard, offering multiple PCI-E slots, USB 3.0 and 2.0 interfaces, and digital I/O for versatile hardware expansion. Connectivity includes a Gigabit LAN port driven by the Intel I217LM controller and support for multiple display outputs via the integrated graphics. Certified to RoHS and CE standards, the ET950 incorporates industrial-grade components, on-board hardware monitoring by Nuvoton NCT5523D, and optional cooling solutions ensuring reliable, field-ready operation in demanding embedded applications.
ET950 Features
- Onboard 4th Generation Intel Core I7/I5/I3 Qc / DC Processors
- 2X DDR3 So-Dimm, Max. 16Gb
- Single Gigabit LAN Via Baseboard (Ip409)
- 2X SATA Ii, 2X SATA Iii, 4X USB 3.0, 4X USB 2.0, 2X Com Via Baseboard (Ip409)
- Supports Max. 3X Independent Displays, Displayport/DVI-I/ DVI-D/ Lvds Via Baseboard (Ip409)
- Supports Hd Audio Via Baseboard (Ip409)
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
95mm x 125mm (3.74" x 4.49")
Audio
Intel QM87 PCH built-in audio w/ Realtek ALC662 codec on baseboard (IP409)
BIOS
AMI BIOS
Display Interface
24-bit single channel LVDS on baseboard (IP402)
Expansion Slots
1x PCI-E(x16), 1x PCI-E(x4), 2x PCI-E(x1), 1x Mini PCI-E on baseboard (IP409)
Form Factor FILTER
Express Basic Module
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT5523D onboard (support Tx /Rx only) Below functions on baseboard (IP409) 1x LPT, 1x KB, 1x Mouse, 2x SATA II, 2x SATA III, 2x RS232 (Full function)
LAN Connector
1x RJ45 on baseboard (IP409)
LAN Controller
1x Intel I217LM Gigabit LAN PHY
Others
Digital I/O (4 in / 4 out) on baseboard (IP409)
SSD
N/A
System Memory
2x DDR3 SO-DIMM, Max. 16GB (Non-ECC)
USB
4x USB 3.0 ports via baseboard (IP409) 4x USB 2.0 ports via baseboard (IP409)
VGA Controller
4th Generation Intel Core Processor integrated Gfx, supports DVI-D, DVI-I, DisplayPort, LVDS
VGA Memory
Max. Shared memory 1024MB
Watchdog Timer
256 levels
Expansion
PCI-E
Form Factor
CPU Module
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
ET950-4700 COM Express (Type 6) module with Intel Core i7-4700EQ(2.4GHz) , QM87 PCH, DDR3 dual channel memory ET950-4400 COM Express (Type 6) module with Intel Core i5-4400E(2.7GHz) , QM87 PCH, DDR3 dual channel memory ET950-4100 COM Express (Type 6) module with Intel Core i3-4100E(2.4GHz) , QM87 PCH, DDR3 dual channel memory IP409 Flex ATX baseboard for COM Express (Type 6) module HSET950-BGA-1 Heatsink w/ fan for ET950 HSET950-BGA-2 Heat spreader for ET950
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE ET950 CPU Card is designed and engineered for use in demanding environments where reliability, durability are essential. The ET950 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defense and Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Rail And Transport.
Across these sectors, the ET950 is typically used in applications such as Aircraft Cockpit And Avionics Support Systems, Industrial HMI And Machine Interfacing, Marine Bridge And Vessel Control Systems, Medical Carts And Clinical Mobile Workstations, Process Control And Shop-Floor Monitoring, Robotics And Autonomous System Control, SCADA And Control-Room Access, Vehicle Diagnostics And Onboard Systems.
These examples demonstrate the versatility of the ET950 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the ET950 is appropriate for your specific application, please contact us.
The iBASE ET950 CPU Card comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE ET950 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE ET950 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
