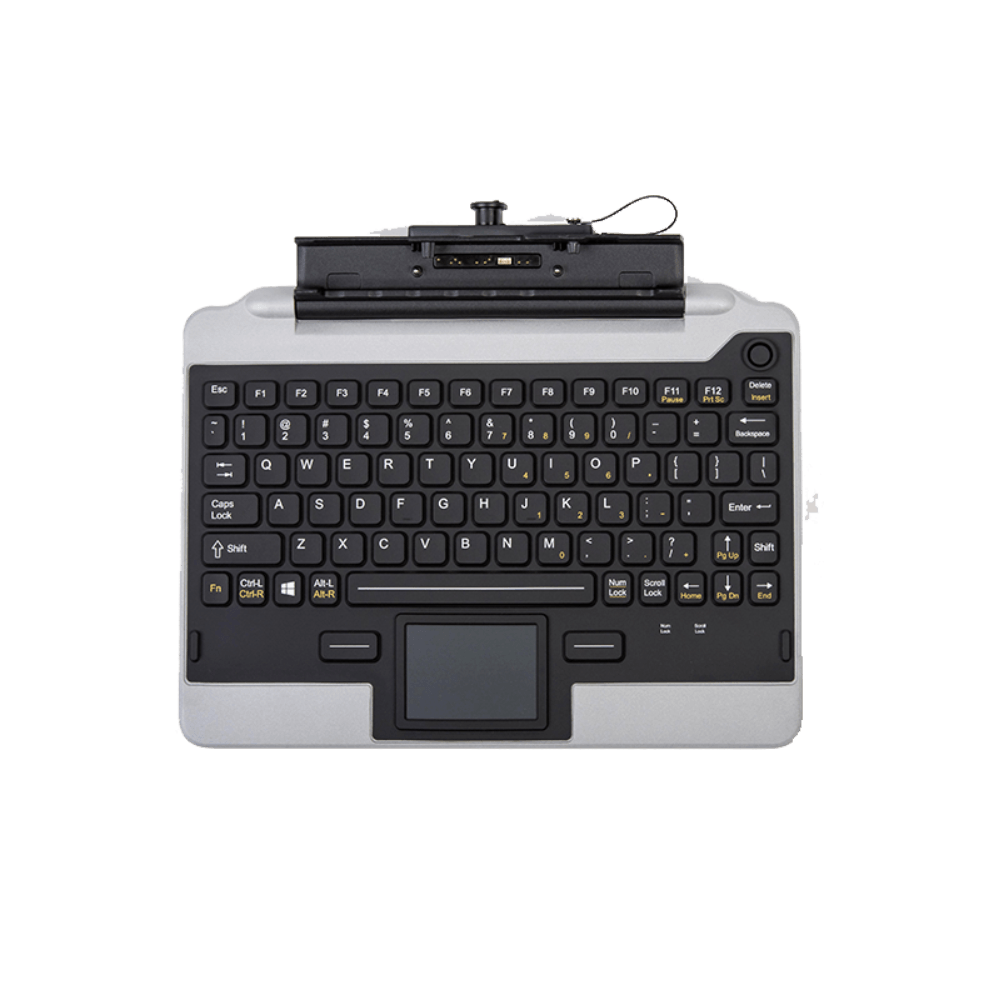

iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard

The iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard is built around its reinforced latching mechanism, supporting secure attachment to the Panasonic FZG1 tablet in demanding industrial and mobile environments. This rugged keyboard features sealed industrial silicone rubber keys with integrated green backlighting, facilitating use in low-light and harsh conditions. It includes an external USB 2.0 port for added peripheral connectivity, enhancing practical deployment functionality. The keyboard’s robust metal case houses carbon contact key technology, contributing to low-maintenance operation and extended lifespan, rated for over 10 million actuations.

Certified to MIL-STD-810G for shock and vibration resistance and IP54 rated for dust and water ingress protection, the IK-PAN-FZG1-C1-V5 is suitable for continuous-duty use in manufacturing, field service, and other tough environments. Its clip-on mounting type ensures a stable connection without additional keys, reducing mechanical wear and maintaining interface integrity during extended operational periods.

IK-PAN-FZG1-C1-V5 Features

  • Snap on keyboard for Panasonic FZ-G1 tablet
  • Green backlighting
  • Fully Rugged Keyboard
  • Provides Screen Protection for FZ-G1 Tablet
  • Improved Latching Mechanism
  • 1 x External USB Port
  • Resistant to Dirt, Dust, and Spills

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Case Material

Magniusm Alloy

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Keypad Layout,Backlight Colour,Custom Logo,Epoxy Coating,PU Coating

Dimensions

243.332mm x 277.876mm (9.58 inches by 10.94 inches)

Function Keys

12Keys

Housing Colour

Silver

Backlight

Integrated GREEN Backlighting

Case Material

Robust Metal Case

Compatibility

FZG1Panasonic Tablet Only

Connectivity

Clip-On to Panasonic FZG1 Tablet

Function Keys

12 Function Keys

Interface Connector

Built-in Panasonic Tablet Docking Interface

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Spacing

18 mm

Key Switch

Carbon Contact Technology

LED Indicators

Num Lock, Scroll Lock, Caps Lock

Lifespan

>10 Million Actuations

Mounting Type

Panasonic FZ-G1 Clip On

No. Of Keys

88

Pointing Device

Touchpad

Power

USB: MAX 235mA@5V, 1X External 2.0 USB port

Product Weight

2.1 lbs +/- 0.10 lbs (0.95 kg +/- 0.05 kg)

Shock

STANDARD: MIL-STD810G 514.6 OPERATIONAL: 1.15Grms NON-OPERATIONAL: 7.89Grms

Supply Current

MAX 235mA

Supply Voltage

5 Volts

Temperature Range

STORAGE: -40 F to +185 F (-40 C to 85 C)OPERATING: 14 F to 122 F (-10 C to +50 C), TEMPERATURE SHOCK: -40 F to 185 F (-40 C to 85 C) Within 15 seconds, 2 Hour Dwells

Vibration

STANDARD: MIL-STD810G 514.6, OPERATIONAL: 2 cycles/ Axis (1 Hour/Cycle) 10 to 500 Hz NON-OPERATIONAL: 2 cycles/ Axis (1 Hour/Cycle) 20 to 2000Hz

Operating Temperature

-20C to 50C (-14F to 122F)

Ordering Info

IK-PAN-FZG1-C1-V5-XX - XX = Keyboard Layout i.e. UK, US..

Shock

STANDARD: MIL-STD810G 514.6 OPERATIONAL: 1.15Grms NON-OPERATIONAL: 7.89Grms

Storage Temperature

-40C to 85C (-40F to 185F)

The iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The IK-PAN-FZG1-C1-V5 supports a wide range of industries and operational applications.

Common deployment industries include: Field Service, Industrial Manufacturing.

Across these sectors, the IK-PAN-FZG1-C1-V5 is typically used in applications such as Field Data Capture And Reporting, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, Secure Access, Authentication, And Control Terminals, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the IK-PAN-FZG1-C1-V5 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the IK-PAN-FZG1-C1-V5 is appropriate for your specific application, please contact us.

The iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-PAN-FZG1-C1-V5 Snap-On Panasonic Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-PAN-FZG1-C1-V5 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
