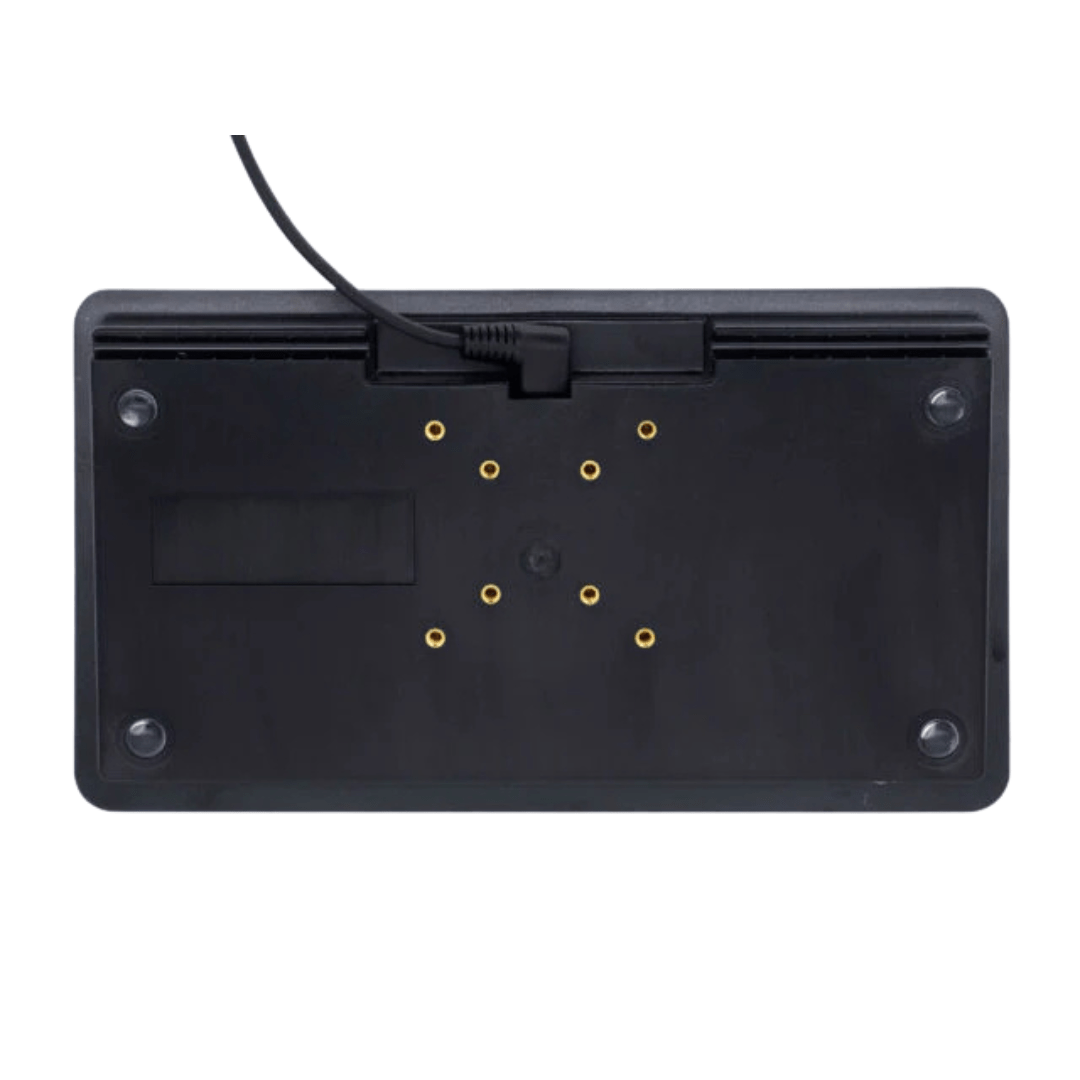

iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps

Designed for industrial and mobile environments, the iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps provides reliable input for logistics, warehousing, and vehicle-mount use. Its robust ABS polycarbonate enclosure and epoxy-coated keycaps deliver an impact-resistant interface that endures over 10 million keystrokes, maintaining tactile feedback and durability under continuous handling. The keyboard features a sealed design with IP65 and NEMA 4X ratings for resistance to dust, water, and corrosive agents, supporting operations in harsh conditions.

Featuring an integrated red backlight, the SL-910 supports work in low-light settings, while the well-spaced keys and built-in 10-key numeric pad allow accurate data entry, even for gloved operators. Compliance with MIL-STD-810G standards ensures shock and vibration tolerance necessary for vehicle and industrial applications. Multiple interface options including USB, PS/2, and DB9 cables and versatile VESA and AMPS mount compatibility enhance its deployment flexibility across fixed and mobile platforms.

SL-910-EPX Features

  • 24 Full Function Keys
  • Built-in VESA and AMPS mounting holes
  • Epoxy Keycaps
  • Red LED backlit keys for low-light operation
  • Lightweight, rugged ABS polycarbonate case
  • USB, PS/2, and DB9 interface options available
  • Customisation Available On Request

Request a Quote

IP Rating

Interface

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.40" x 6.30" x 1.90" (w-h-d) 289.6mm x 160.0mm x 48.3mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 4 ft coiled (1.2 meters) DESIGN: "Y" PS/2 (providing separate keyboard and mouse connections), or Single-Cable USB

Compatibility

PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Epoxy Coated Keycaps

Key Switch

MATERIAL: Epoxy Coated Keycaps LIFE: Greater Than 10 million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

Mounting Type

VESA Mount, AMPS or Desktop

Numeric Pad

Integrated 10-Key

Power

PS/2: KEYBOARD: 200mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 235mA@5V (from CPU port)

Product Weight

2.25 lbs +/- 0.10 lbs (1.02 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)

Model Numbers

SL-910-EPX-PS2: With PS/2 cable SL-910-EPX-USB: With USB cable SL-910-EPX-DB9-3F: With 3 foot DB9 cable (configured USB)

The iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps is designed and engineered for use in demanding environments where reliability, durability are essential. The SL-910-EPX supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Industrial Manufacturing, Logistics And Supply Chain, Rail And Transport, Warehousing.

Across these sectors, the SL-910-EPX is typically used in applications such as Forklift And Materials-Handling Terminals, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Mobile Workforce Operations, Vehicle-Mounted Computing (MDTs / VMCs), Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the SL-910-EPX across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SL-910-EPX is appropriate for your specific application, please contact us.

The iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps comes with a 3 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SL-910 Compact Rugged Keyboard with Epoxy Keycaps or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SL-910-EPX or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • Sealed dust-resistant construction
    • Impact-resistant ABS polycarbonate case
    • Backlit keys for low light use
    • Over 10 million key actuations lifecycle
    • Intrinsically safe certification for hazardous zones
    • NEMA 4X sealed ABS polycarbonate housing
    • Force Sensing Resistor pointing device
    • Shock and vibration tested for field use
    DU-5K-FSR-IS, intrinsically safe keyboard
    • NEMA 4X sealed housing
    • Tactile silicone rubber keys rated for 10M actuations
    • MIL-STD shock and vibration tolerant
    • Supports PS/2 and USB interfaces
    • Sealed ABS polycarbonate housing
    • Backlit keys for low-light environments
    • Force Sensing Resistor pointing device
    • Certified NEMA 4X and MIL-STD durability

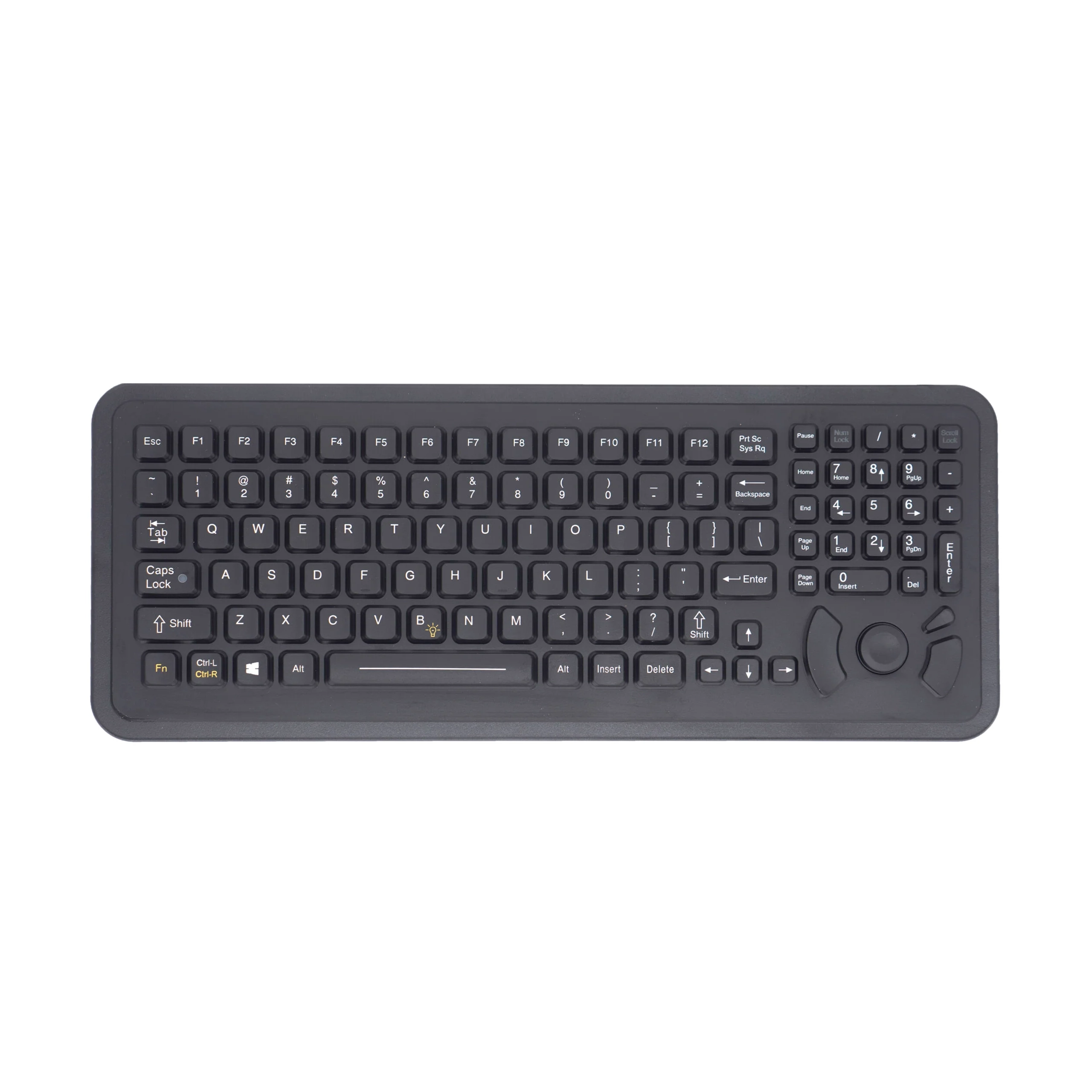

    iKey SLP-102-FSR Panel Mount Backlit Rugged Keyboard With FSR
