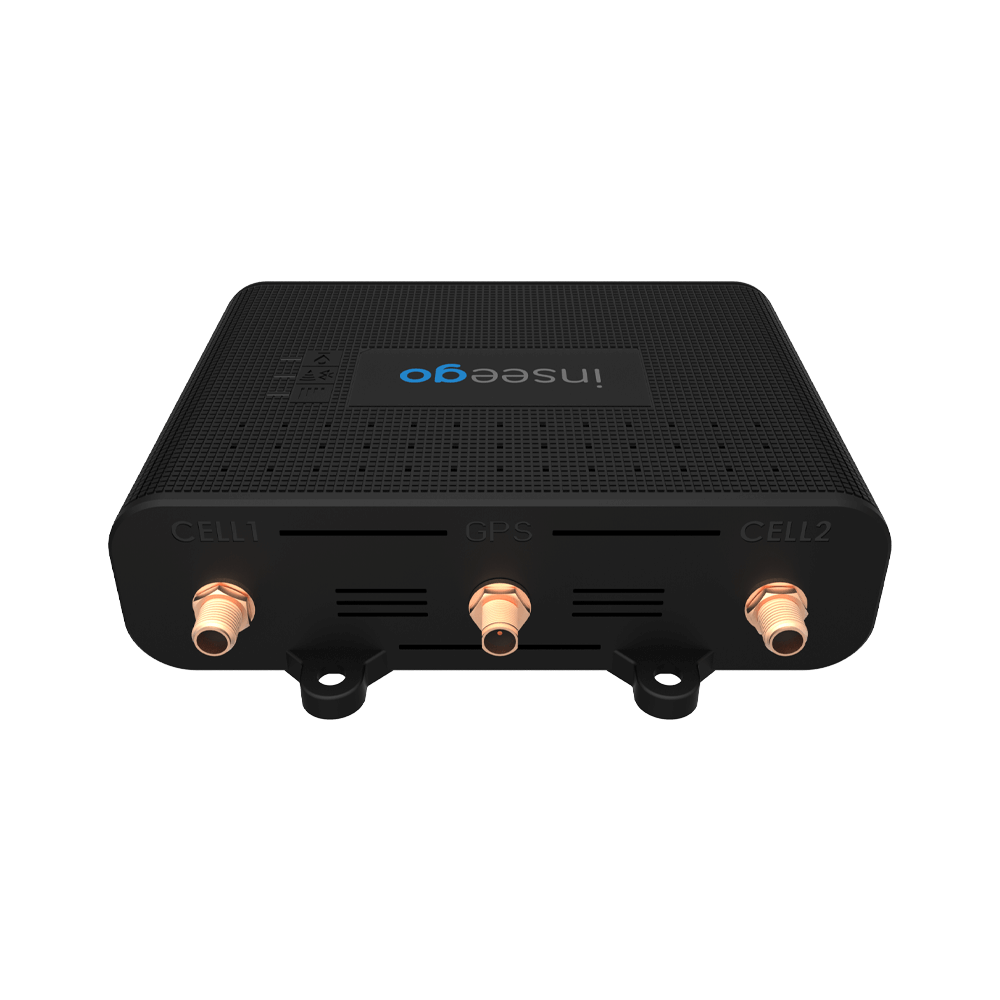

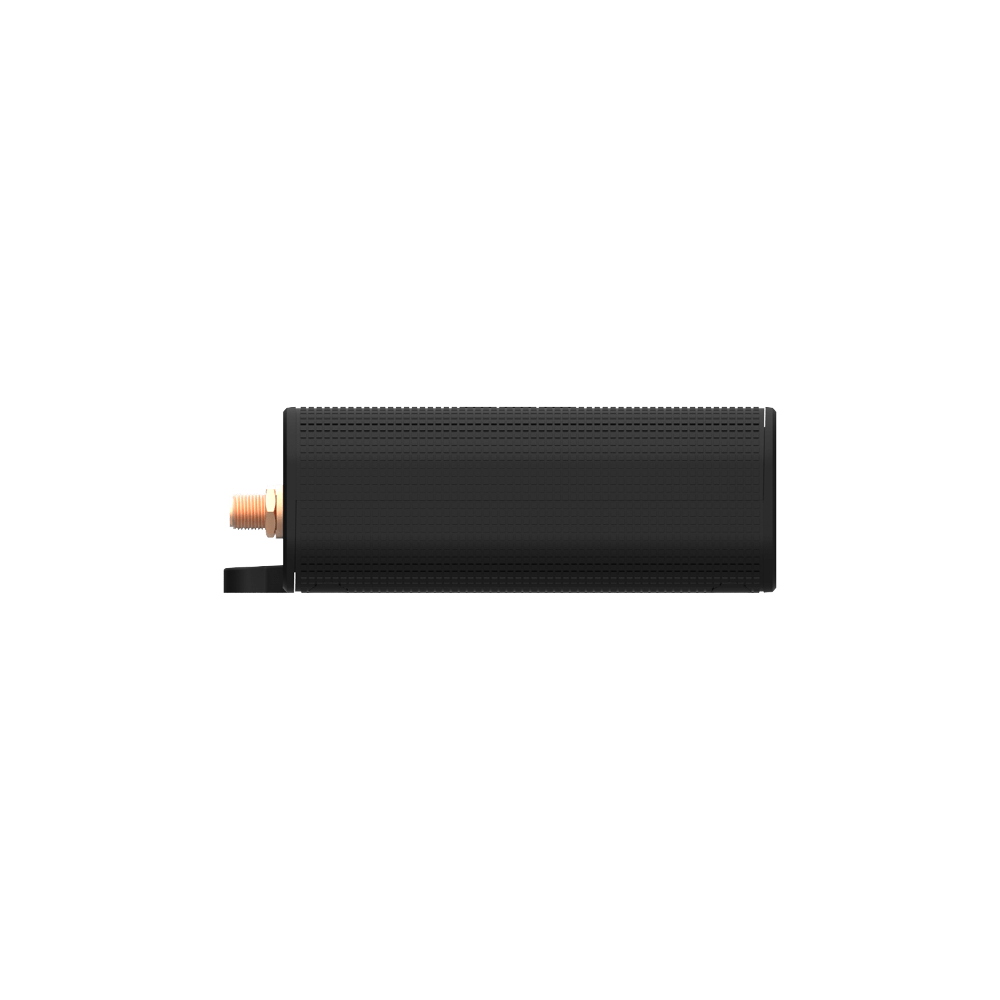

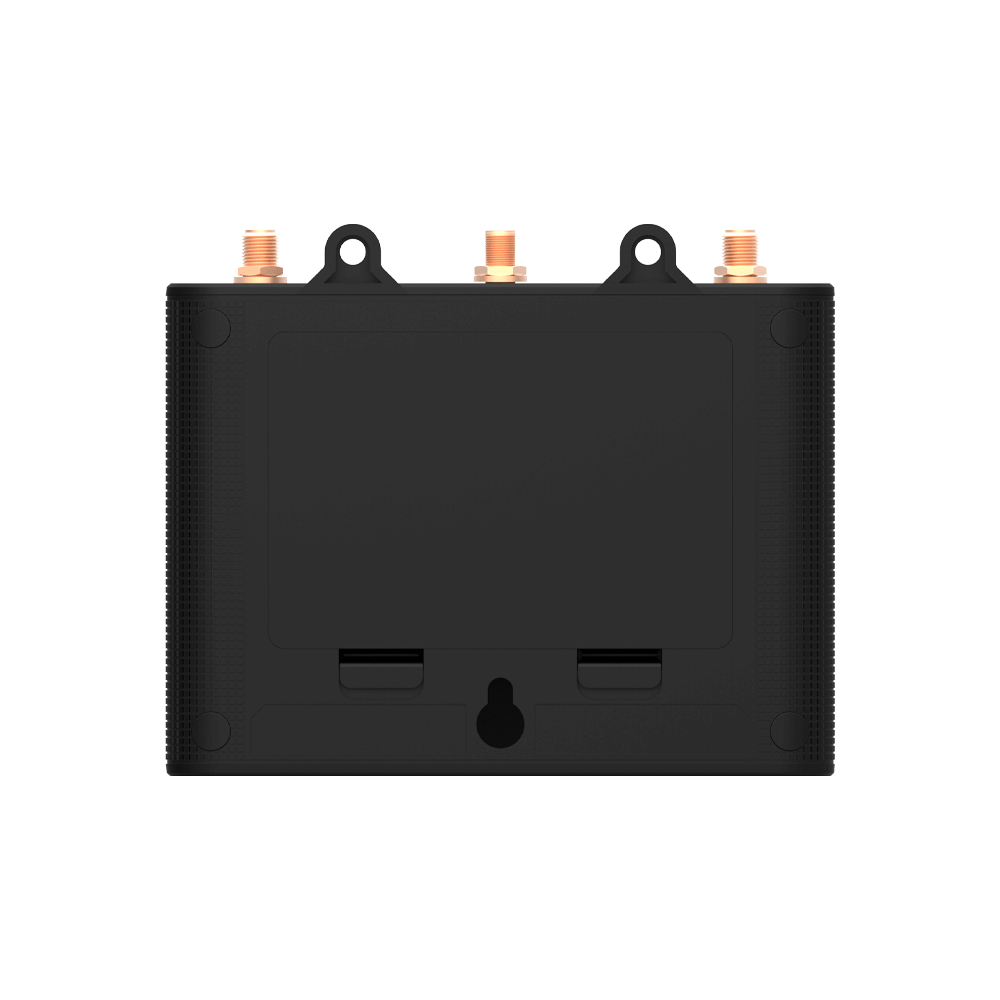

Inseego Skyus 160 LTE IoT Gateway Router
For environments where reliable connectivity is paramount, the Skyus® 160 gateway delivers. With a small, rugged design and multi-carrier support, it keeps you connected almost anywhere for both primary and failover communications.
SK160NE-ACR Features
- Multiple data interfaces: Ethernet, USB, Wi-Fi
- 24/7/365 secure connectivity
- Multiple power interfaces: PoE, USB, built-in 4400 mAh 12-hour backup battery for power loss protection*
- 4-pin dual SIM slots
- Wi-Fi 5 and Bluetooth 5.0
With Cat 6 LTE speeds (up to 300 Mbps downloads and 50 Mbps uploads) and a built-in battery backup, the Skyus 160 can support your most important workloads.
Use it for mobile applications like creating a vehicle hotspot, setting up a temporary job site or working from home. It’s also ideal for fixed environments such as SD-WAN installations for retail locations or branch offices.
* Battery life may vary depending on the number of connected devices and activity.
| Manufacturer or Brand | Inseego |
|---|---|
| Mounting Format | Mobile |
| Housing Colour | Black |
| Cellular Connectivity | 4G LTE CAT-6 B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 (Supports 2 Carrier Aggregation Downlink) 3G (HSPA+, UMTS) B1, B2, B3, B4, B5, B8 |
| Antenna Connectors | Two SMAs for External Cellular Antennas, One SMA for External GNSS Antenna, Internal Wi-Fi/BT Antennas |
| GNSS Technology | aGNSS (GPS, GLONASS, Galileo), NMEA, SUPL 2.0 Support, Local UDP, Remote Streaming |
| GNSS No. of Antennas | One SMA for External GNSS Antenna |
| GNSS Connector | SMA |
| WI-FI Standards | Wi-Fi 5 (802.11 a/b/g/n/ac) - Supports up to 15 clients |
| WI-FI Frequency Bands | 802.11 a/b/g/n/ac |
| WI-FI Antennas | Internal |

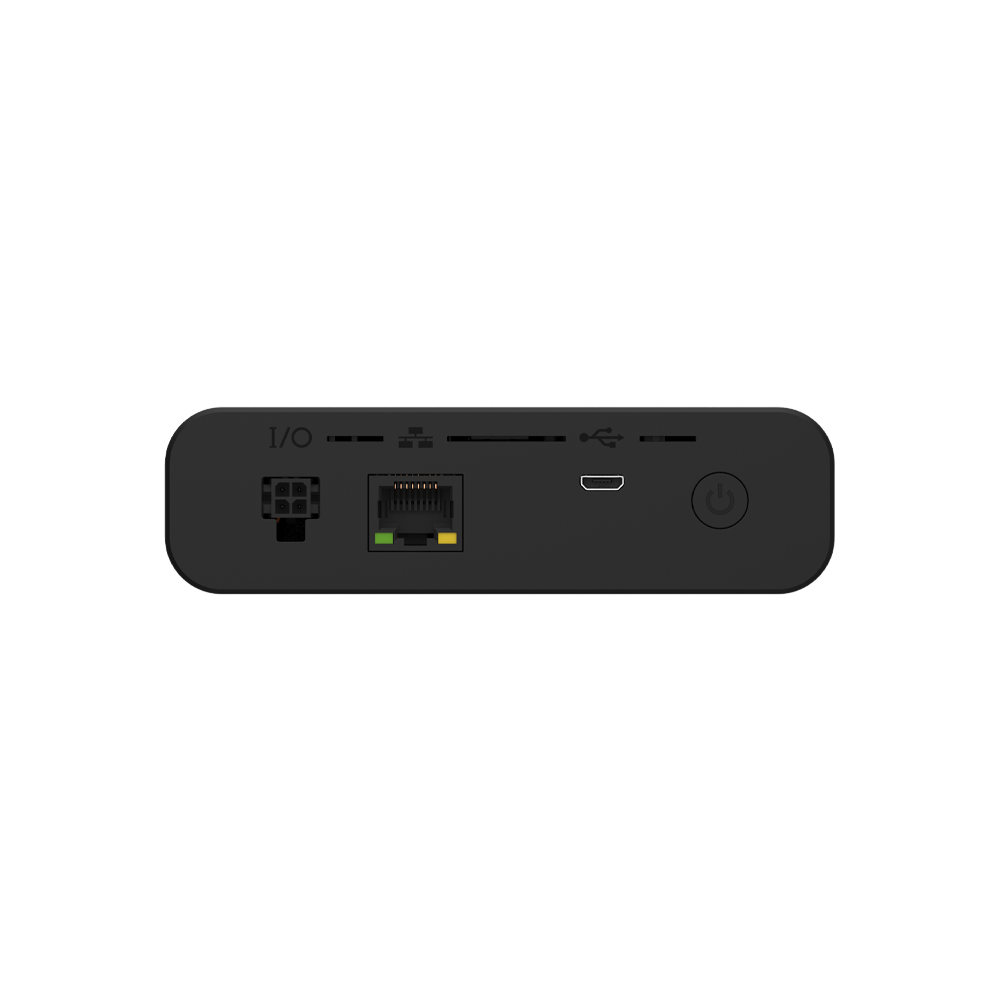

| Ethernet Ports | RJ45 Ethernet (PoE in) |
| Bluetooth | BT5.0, BLE Long Range, 20+ Clients, 200m Range (supports Marathon Products EDL-BT04 and EDL-BT05) |
| Power Supply | 5 ± 0.25 VDC @ 1A (powered USB 2.0 connection required) via USB Micro-B Connector 9-32 VDC via 4-pin Connector PoE in from PoE host Backup Battery • 4400 mAh Li-ion Rechargeable Pack • 12 Hours of Backup Power3 |
| Approvals / Certifications | GCF, PTCRB (General), IC, cUL (Canada), CE RED, e-Mark, Halogen Free, REACH, RoHS, WEEE (EU), FCC, UL, Ozone Depleting, CA BCS, CA Prop 65 (USA) |
| Operating Temperature | Normal Operation: -20– 50 °C (-4 – 122 °F) |
| Storage Temperature | Storage: -20 – 60 °C (-4 – 140 °F) |
| Dimensions | 118 x 98 x 33 mm (4.65 x 3.85 x 1.31 in) |
| Warranty | 1 Year Limited Warranty |
| Model | SK160NE-ACR |
| Ordering Info | SK160NE-ACR |
- Multiple data interfaces: Ethernet, USB, Wi-Fi
- 24/7/365 secure connectivity
- Multiple power interfaces: PoE, USB, built-in 4400 mAh 12-hour backup battery for power loss protection*
- 4-pin dual SIM slots
- Wi-Fi 5 and Bluetooth 5.0
- aGNSS (with active and passive GNSS antenna support)
- Compact Rugged Design
- Always connected - Built-in Battery Backup
The Inseego SK160NE-ACR
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the Inseego SK160NE-ACR Industrial IoT Gateway are listed below:-
These are just some of the applications for the Inseego SK160NE-ACR Industrial IoT Gateway The potential applications extend further than those shown above. For further information about the Inseego SK160NE-ACR Industrial IoT Gateway
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Digital Signage
- Factory Floor
- Food Processing
- Industrial Automation
- IOT
- Manufacturing Plant
- Oil Rigs
- Public Information Systems
- Server Rooms
- Smart Factory
- Smart Office
- Warehousing
- Industry 4.0
- Green Technology
- Traffic Management
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the Inseego SK160NE-ACR Industrial IoT Gateway to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the Inseego SK160NE-ACR Industrial IoT Gateway, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Custom Logo
- Case Colour
- Connections
- Anti-Bacterial Coating
- Custom Printing
- Mounting Options
The Inseego SK160NE-ACR Industrial IoT Gateway has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, Inseego SK160NE-ACR Industrial IoT Gateway, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
