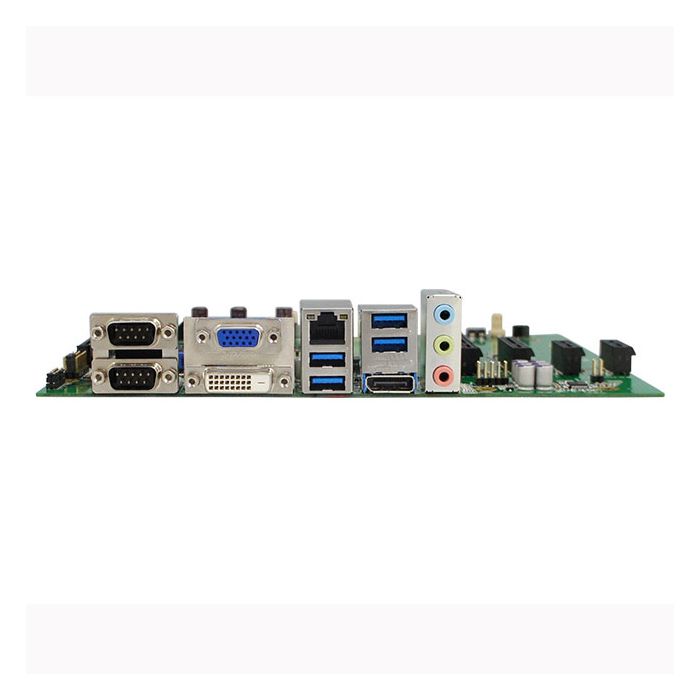

IP402 Features

  • Fintek F81865F-I Super I/O
  • Watchdog Timer, 4-In / 4-Out Digital I/O
  • 1X PCI-E(X16) , 1X PCI-E(X4), 1X PCI-E(X1) Expansion Slots
  • Edge Connectors For Com1/2, VGA, DVI, Displayport, Dual RJ45,
  • 2X USB (3.0), 2X USB (2.0), Audio Connector (Line-Out, Line-In & Mic.)

Manufacturer: iBASE




Flex ATX COM Express Baseboard
Specification
Manufacturer or Brand iBASE
Mounting Format OEM
Form Factor CPU Card
Processor Intel
Certifications RoHS Compliant, CE
Operating Temperature 0C ~ 60C (32CF ~ 140CF)
Storage Temperature -20C ~ 80C (-4CF ~ 140CF)
Humidity 90% Humidity Resistant (non-condensing @ 60C)
Dimensions 338mm x 126mm (13.31" x 4.96")
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Ordering Info IP402 Flex ATX baseboard for COM Express( Type 6) module
Audio Intel C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
BIOS AMI BIOS
Display Interface Support DVI-I, VGA, DVI-D
Expansion Slots 1x Mini PCI-E
Form Factor FILTER Baseboard
H/W Monitor Yes
I/O Chipset Fintek F81846AD-I 1x RS-232/422/485(Jumperless selection) 3x RS232, 6x SATA III, 1x LPT
LAN Connector 2x RJ-45 on board
LAN Controller Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN( as 2nd LAN)
Others Digital I/O (4-in/4-out), RAID, iAMT (11.0)
System Memory 2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
USB 3 ports x USB3.0 on board 2 ports x USB2.0 via pin header 1 port x USB2.0 via Mini PCI-E
VGA Controller 6th Generation Intel Core DT Xeon E3 & Core i7/i5/i3/Pentiumᆴ/ Celeron integrated graphics
VGA Memory Max. shared memory 1024MB
Watchdog Timer 256 levels
  • Fintek F81865F-I Super I/O
  • Watchdog Timer, 4-In / 4-Out Digital I/O
  • 1X PCI-E(X16) , 1X PCI-E(X4), 1X PCI-E(X1) Expansion Slots
  • Edge Connectors For Com1/2, VGA, DVI, Displayport, Dual RJ45,
  • 2X USB (3.0), 2X USB (2.0), Audio Connector (Line-Out, Line-In & Mic.)
  • Board Connectors For 2X Com, 1X Kb/Ms, 2X SATA Iii, 2X Sataii, 2X Lvds,
  • 8X USB (2.0), 1X Lpt, Com Express ( Type 6) Connector
  • ATX Power Connector
  • 190 X 228mm
The iBASE IP402 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iBASE IP402 CPU Card are listed below:-

  • Industrial Automation
  • IOT
  • Manufacturing Plant
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iBASE IP402 CPU Card The potential applications extend further than those shown above. For further information about the iBASE IP402 CPU Card or to check if the product is suitable for your application, please do not hesitate to contact us.
Currently there are no custom options listed for the iBASE IP402 CPU Card on our website.

If your application requires unusual or individual modifications for the iBASE IP402 CPU Card, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iBASE IP402 CPU Card has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iBASE IP402 CPU Card, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
