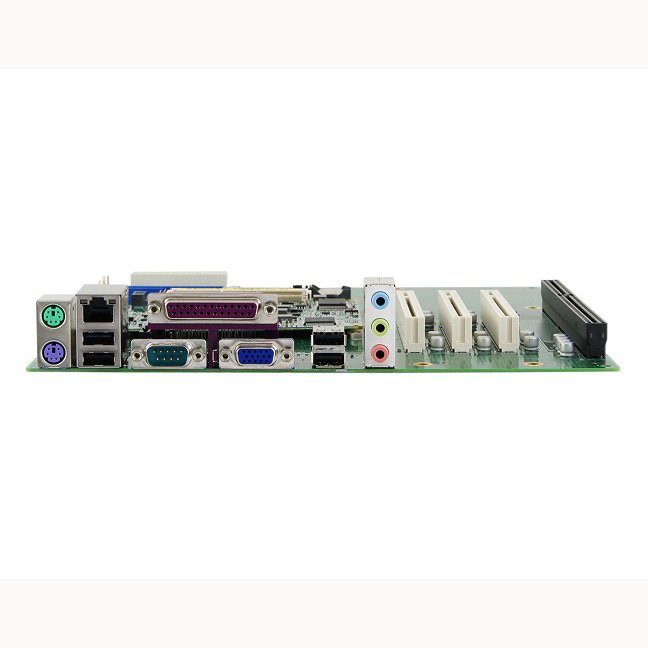

iBASE IP412 CPU Card
Designed for industrial and embedded systems, the iBASE IP412 CPU Card is a micro ATX ETX 3.0 baseboard supporting 6th Generation Intel Core and Xeon processors. It operates reliably within a temperature range of -20C to 80C and withstands humidity up to 90% non-condensing at 60C. The card integrates industrial-grade components ensuring durability for continuous-duty applications. The IP412 complies with RoHS and CE standards, verifying its suitability for rigorous deployment environments where reliable processing and extended operational lifespan are essential.
Connectivity is robust, featuring dual Intel Gigabit LAN controllers, multiple SATA III ports, USB 3.0 and USB 2.0 ports, and digital I/O interfaces. It supports display outputs including DVI-I, VGA, and DVI-D, facilitating versatile system integration. This CPU card balances compact form with reinforced functionality in field-ready industrial contexts.
IP412 Features
- 1X Isa, 3X PCI Expansion Slots
- Edge Connectors For PS2 Keyboard & Mouse, RJ45 + Dual USB (2.0), Com, VGA, Printer Port, 2X USB (2.0) , Audio Connector (Line-Out, Line-In & Mic.)
- Onboard Headers For Com, Lvds, Ide , Etx Connectors
- ATX Power Connector
- 244mm X 244mm
- ATX Power Connector
- 170mm X 170mm
- ATX Power Connector
- 190 X 228mm
Request a Quote
Certifications
RoHS Compliant, CE
Dimensions
338mm x 126mm (13.31" x 4.96")
Audio
Intel C236 PCH built-in HD audio controller + Realtek ALC662 w/ 5.1 channel
BIOS
AMI BIOS
Display Interface
Support DVI-I, VGA, DVI-D
Expansion Slots
1x Mini PCI-E
Form Factor FILTER
Baseboard
H/W Monitor
Yes
I/O Chipset
Fintek F81846AD-I 1x RS-232/422/485(Jumperless selection) 3x RS232, 6x SATA III, 1x LPT
LAN Connector
2x RJ-45 on board
LAN Controller
Intel I219LM Gigabit LAN PHY Intel I211AT PCI-E Gigabit LAN( as 2nd LAN)
Others
Digital I/O (4-in/4-out), RAID, iAMT (11.0)
SSD
N/A
System Memory
2 x DDR4-2133 DIMM, Max 32GB (ECC compatible)
USB
3 ports x USB3.0 on board 2 ports x USB2.0 via pin header 1 port x USB2.0 via Mini PCI-E
VGA Controller
6th Generation Intel Core DT Xeon E3 & Core i7/i5/i3/Pentiumï¾®/ Celeron integrated graphics
VGA Memory
Max. shared memory 1024MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C ~ 60C (32CF ~ 140CF)
Ordering Info
IP412 Micro ATX ETX (3.0) baseboard
Processor
Intel
Storage Temperature
-20C ~ 80C (-4CF ~ 140CF)
The iBASE IP412 CPU Card is designed and engineered for use in demanding environments where reliability, durability are essential. The IP412 supports a wide range of industries and operational applications.
Common deployment industries include: Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.
Across these sectors, the IP412 is typically used in applications such as Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).
These examples demonstrate the versatility of the IP412 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the IP412 is appropriate for your specific application, please contact us.
The iBASE IP412 CPU Card comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IP412 CPU Card, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IP412 CPU Card or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
