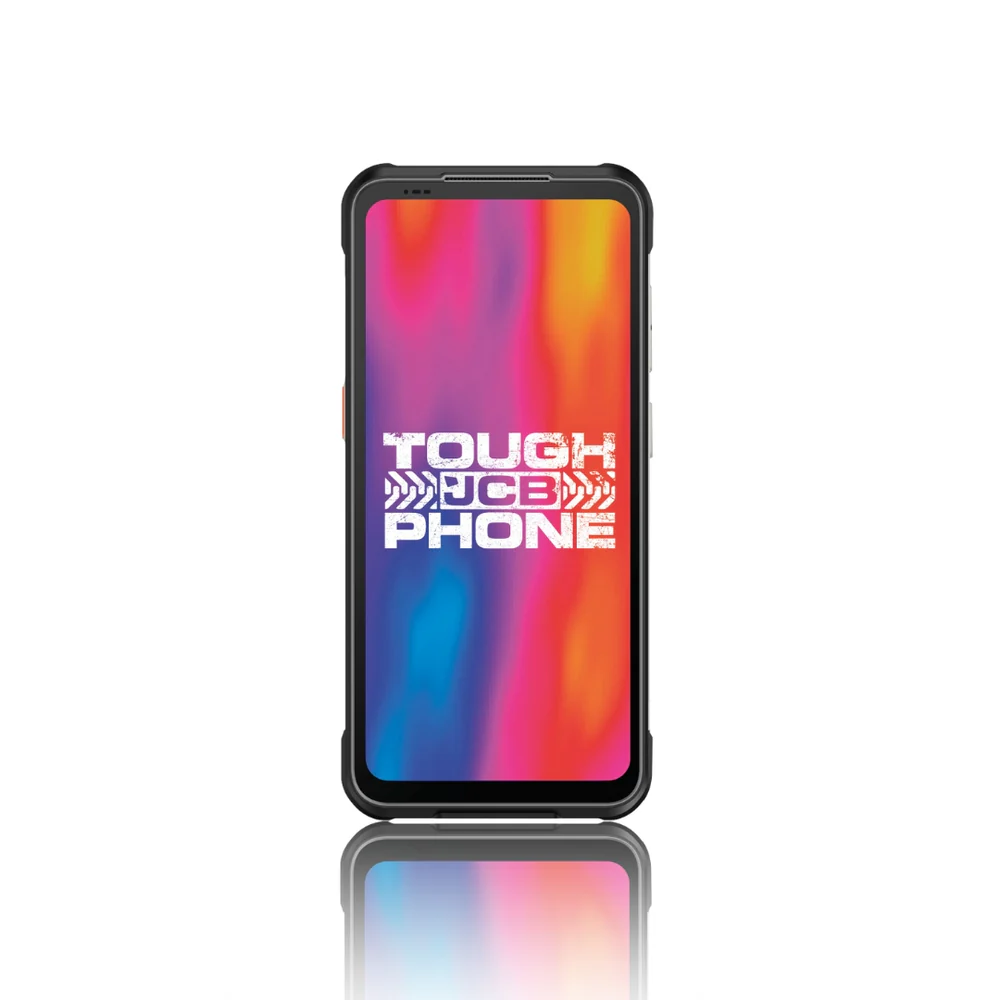

JCB Toughphone MAX Pro P20 With Advanced Thermal Vision

Designed for challenging environments such as construction, energy, and emergency services, the JCB Toughphone MAX Pro P20 with Advanced Thermal Vision offers robust communication and monitoring capabilities. Its industrial-grade IP69K enclosure provides dust-tight and high-pressure water resistance, while MIL-STD-810H certification ensures drop protection up to 1.8 metres onto concrete. The device operates reliably between -20°C and 55°C, supporting field-ready use in varying climates.

The MAX Pro P20 features a 6.6-inch Corning Gorilla Glass display with a 120Hz refresh rate for clear visuals and enhanced durability. Its built-in uncooled VOx microbolometer thermal camera detects temperature ranges from -15°C to 550°C with an accuracy of plus or minus 2%, assisting in thermal inspections and safety monitoring. A high-capacity 10,000mAh battery delivers up to 40 hours of talk time, facilitating extended remote use. Connectivity options include dual nano SIMs, 5G network support, Wi-Fi 6, Bluetooth 5.0, GPS, and NFC for comprehensive field communication and positioning.

JCB-MAX-PRO-P20 Features

  • IP69K dust and water ingress protection
  • MIL-STD-810H drop and shock tested
  • Integrated advanced thermal camera with high accuracy
  • Extended 10,000mAh battery for long field operations
  • Dual SIM and 5G connectivity for versatile network access

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Screen Size

Processor

Operating System

Country Of Manufacture

USA

Operation System

Android 14

Chipset

MT6877

CPU clock speed

2x A78 2.4GHz 6x A55 2.0GHz

RAM

12GB

ROM

512GB

External memory

Up to 1TB

Display size

6.6” FHD+

Display resolution

1080 x 2400

Display refresh rate

120Hz

Display cover

Corning Gorilla Glass

Rear camera

64MP + 8MP + 20MP night vision

Thermal camera

Integrated Thermal camera

Thermal imaging detector

Uncooled VOx microbolometer

Resolution

256 x 192

Pixel size

12µm

Spectral range

8-14 µm

Video frame rate

25fps

Measurement range

High gain -15C to 150C; Low gain 50C to 550C

Accuracy

+/- 2%

Front camera

20MP

Battery size

10,000mAh

Battery life

Talk time: up to 40hrs; Standby time: up to 50 days

Battery life

Talk time: up to 40hrs; Standby time: up to 16 days

Powerbank function

Yes

Network and connectivity

2G: GSM Bands (MHz): 800, 900, 1800, 1900 3G: UMTS Bands (MHz): 800, 850, 900, 1700, 1900, 2100 3G: CDMA Bands (MHz): 800, 1900 4G: LTE (Cat.6 - 50Mbps /300Mbps) FDD B1,2,3,4,5,7,8,12,17,18,19,20,25, 28A,28B,66; TDD B34,38,39,40,41 5G: N1,3,7,28,38,41,77,78,79

IMS support

VoLTE, VoWi-Fi supported

SIM

Dual nano SIM

Bluetooth

5.0

Wi-Fi

802.11 a,b,g,n,ac,ax, 2.4/5/6GHz

Wi-Fi hotspot

Up to 8 connections

GPS

GPS L1CA+L5, BeiDou B1I +B2a, Glonass L1OF, Galileo E1+e5a

NFC

Yes

Military specification

MIL-STD 810H

Water and dust protection

IP69K - Dust tight, water resistant 1.2m for 60 mins

Drop test

1.8m on to concrete

Operating Temperature

Minus 20°C to +55°C

Sensors

Accelerometer-sensor Ambient light sensor Proximity sensor Electronic compass Gyroscope

The JCB Toughphone MAX Pro P20 With Advanced Thermal Vision is designed and engineered for use in demanding environments where reliability, durability are essential. The JCB-MAX-PRO-P20 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Natural Resources and Mining, Oil and Gas, Security And Surveillance.

Across these sectors, the JCB-MAX-PRO-P20 is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Mobile Workforce Operations, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the JCB-MAX-PRO-P20 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the JCB-MAX-PRO-P20 is appropriate for your specific application, please contact us.

The JCB Toughphone MAX Pro P20 With Advanced Thermal Vision comes with a 2 Years Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, JCB Toughphone MAX Pro P20 With Advanced Thermal Vision, must be presented to RUGGED in the United Kingdom.

For more information about the JCB Toughphone MAX Pro P20 With Advanced Thermal Vision or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the JCB Toughphone MAX Pro P20 With Advanced Thermal Vision, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the JCB JCB-MAX-PRO-P20 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
