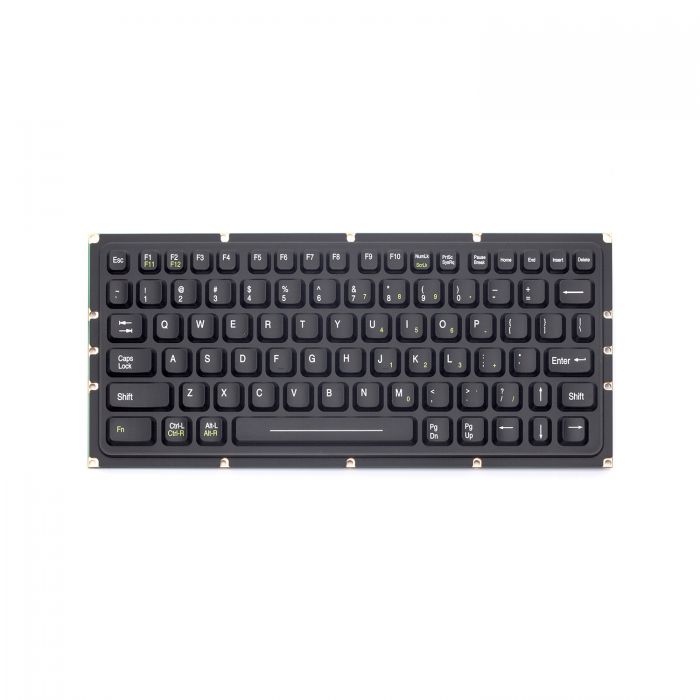

iKey KYB-81-OEM Rugged Keyboard

Designed for industrial and field use, the iKey KYB-81-OEM Rugged Keyboard integrates a full 101-key layout within a compact form factor, ideal for deployments that require space efficiency without sacrificing input functionality. Its industrial-grade silicone rubber keys with tactile mechanical snap switches ensure precise and reliable data entry, rated for over 10 million keystrokes. The keyboard enclosure meets NEMA 4X and IP standards, providing a sealed housing that withstands wet, dusty, and harsh environmental conditions with 100% humidity resistance when properly installed.

Certified to FCC Part 15 Class B and UL60950 safety standards, the KYB-81-OEM supports PS/2 and USB interfaces compatible with Windows and Macintosh operating systems. The device operates across a wide temperature range from -40°C to +70°C and endures shock and vibration per MIL-STD-810G testing. A dual-layer numeric keypad function enhances usability without adding bulk, supporting efficient numeric input for industrial applications.

KYB-81-OEM Features

  • 12 Function Keys
  • 81-Key Functionality
  • OEM Kit: PCB, Rubber Overlay and Cable
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

No Case

Certifications

IP Rated, NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.35" x 5.11" x 0.42" (w-h-d) 288.3mm x 129.8mm x 10.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant (when properly installed)

Cable

LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2, AT or Single-Cable USB

Compatibility

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

10 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 ACTUATION FORCE: 180g (+/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

81

Pointing Device

No Pointer

Power

KEYBOARD: 5mA @ 5V (from keyboard port) USB: 50mA @ 5V (from CPU port)

Product Weight

1.5 lbs (0.68 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

180g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey KYB-81-OEM Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The KYB-81-OEM supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Natural Resources and Mining, Transportation, Warehousing.

Across these sectors, the KYB-81-OEM is typically used in applications such as Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, Secure Access, Authentication, And Control Terminals, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the KYB-81-OEM across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the KYB-81-OEM is appropriate for your specific application, please contact us.

The iKey KYB-81-OEM Rugged Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey KYB-81-OEM Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey KYB-81-OEM Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey KYB-81-OEM Rugged Keyboard or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey KYB-81-OEM or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
