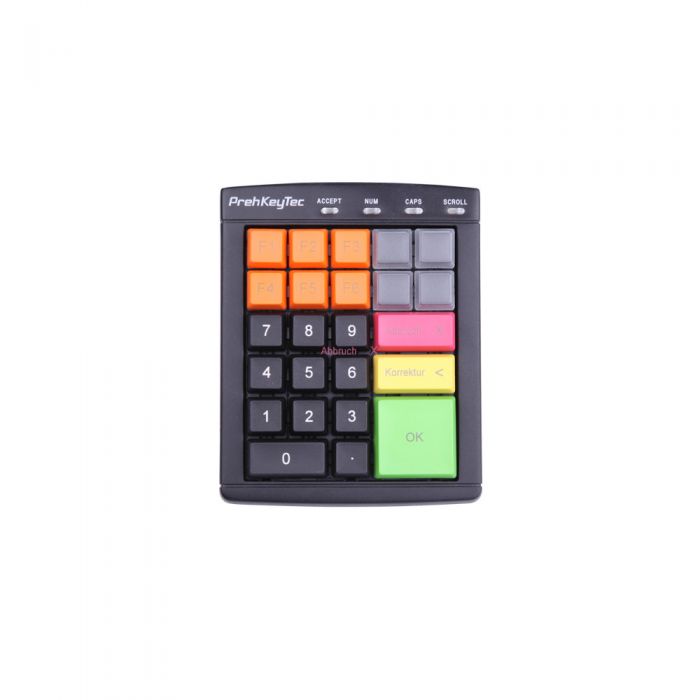

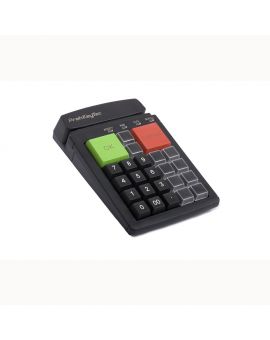

PrehKeyTec MCI-30 Keyboard
For retail and point-of-sale use, the PrehKeyTec MCI-30 Keyboard offers a compact, durable design tailored to busy environments. Constructed from industrial-grade ABS polycarbonate, it features a sealed membrane switch that resists dust and impact. This field-ready keyboard is engineered for over 30 million keystrokes, supporting continuous-duty operation while maintaining reliability. Its tactile elastomer key switches provide consistent feedback and durability through intensive daily use. Certified to CE, EN 55022, and FCC standards, the MCI-30 ensures electromagnetic compatibility and electrostatic discharge immunity, critical for stable operation in diverse retail settings.
The integrated touchpad enhances ergonomic handling and workflow efficiency, while programmability options allow adjustment of key repeat rates and custom macros. It connects via a single USB cable and is compatible with DOS, Linux, and Windows systems. Operating temperatures range from 0 to 50°C, with storage resilience from -40 to 60°C, making it suitable for a variety of deployment conditions. The black housing and compact form factor optimise counter space without sacrificing input reliability or functionality.
MCI-30 Features
- 30 Free-Programmable Key Positions
- 4 Status LEDs
- Menu-Driven Programmer Software
- Dos, Linux and Windows Compatibility
- Numeric Layout (6 X 5)
- Single, Double and Multiple Keys
- Coloured Keys (Option)
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Country Of Manufacture
Germany
Case Material
ABS Polycarbonate
Certifications
CE Approval EN55022, FCC Subpart 15, Class A Electrostatic discharge immunity according to EN 6100-4-2, resistance limit 12 kV (air discharge).Radiated, radio-frequency electromagnetic field immunity, severity of test 10 V/m.
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface,Custom Macro,Custom Keycaps
Dimensions
With MSR = 119 mm x 184 mm (W x D)
Housing Colour
Black
Auto Repeat Frequency / Delay
All keys, repeat frequency and delay time are programmable
Bounce Time
5 ms max
Cable
Single-Cable USB Appx. 1.6m-2m
Compatibility
DOS, Linux and Windows Compatibility
EMI
EN55022, FCCPart 15 Subpart B Class A
Guide Frame
Polystrol
Impact Stability
10 N, 1 min
Key Material
Plastic
Key Spacing
19 mm
Key Switch
Elastomer
LED Indicators
Caps lock; Scroll lock; Num lock; Accept LED for MSR and/or user controlled
Lifespan
>30 Million Actuations
No. Of Keys
30
Operating Force
0.6 N
Pointing Device
Touchpad
Power
+5V DC +/-5% appr. 60mA (base model)
Programmable
Programmable
Spring Elements
Elastomer
Switch / Key Travel
3.5 mm
Switching membrane
Polyester
Temperature Range
STORAGE: -40C to +60C OPERATING: 0C to +50Cï¾ - AIR Presure 700 hPa to 1060 hPa, Climatic class DIN-IEC 68, part 1, appendix A
Tone Indicator
Keyclick and sound via command or UPOS
The PrehKeyTec MCI-30 Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The MCI-30 supports a wide range of industries and operational applications.
Common deployment industries include: Logistics And Supply Chain, Public Sector, Retail, Travel And Hospitality.
Across these sectors, the MCI-30 is typically used in applications such as Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Process Control And Shop-Floor Monitoring, Quality Control And Inspection.
These examples demonstrate the versatility of the MCI-30 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the MCI-30 is appropriate for your specific application, please contact us.
The PrehKeyTec MCI-30 Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, PrehKeyTec MCI-30 Keyboard, must be presented to RUGGED in the United Kingdom.
For more information about the PrehKeyTec MCI-30 Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the PrehKeyTec MCI-30 Keyboard, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the PrehKeyTec MCI-30 or need a custom Rugged Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
