MW820 PrehKeyTec Keyboard

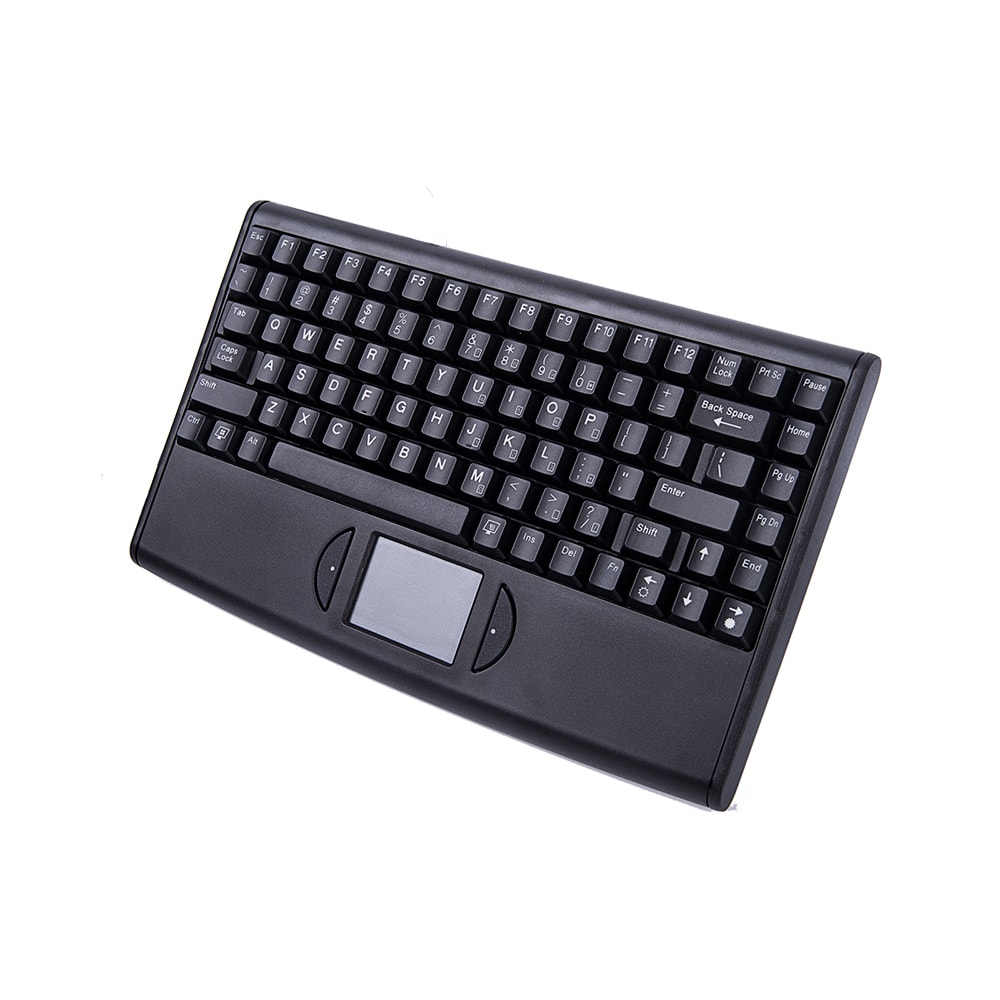

The MW820 rugged mobile vehicle keyboard has been designed to provide a turnkey high performance data entry solution for the most demanding in-vehicle applications.

MW820 Features

  • Designed To Meet MIL-STD 810E
  • Integrated Touchpad
  • Integrated Adjustable LED Backlighting
  • Available As OEM Option
  • Ideal for In Vehicle Applications

MW820 Keyboard Options



The MW820 rugged mobile vehicle keyboard has been designed to provide a turnkey high performance data entry solution for the most demanding in-vehicle applications.

The MW820 is an alphanumeric keyboard offering users the ability to easily input data within in-vehicle environments, with the additional benefit of an integrated glide pad for quick and trouble free application navigation. Having been specifically designed for use in demanding environments across a range of emergency responder organisations, the MW820 offers a truly rugged and reliable solution.

Applications for this keyboard include Military vehicles, Police vehicles, Fire and Ambulance Emergency services, Command and Control vehicles, Plant and Warehousing vehicles and any specialist mobile vehi-cle application.

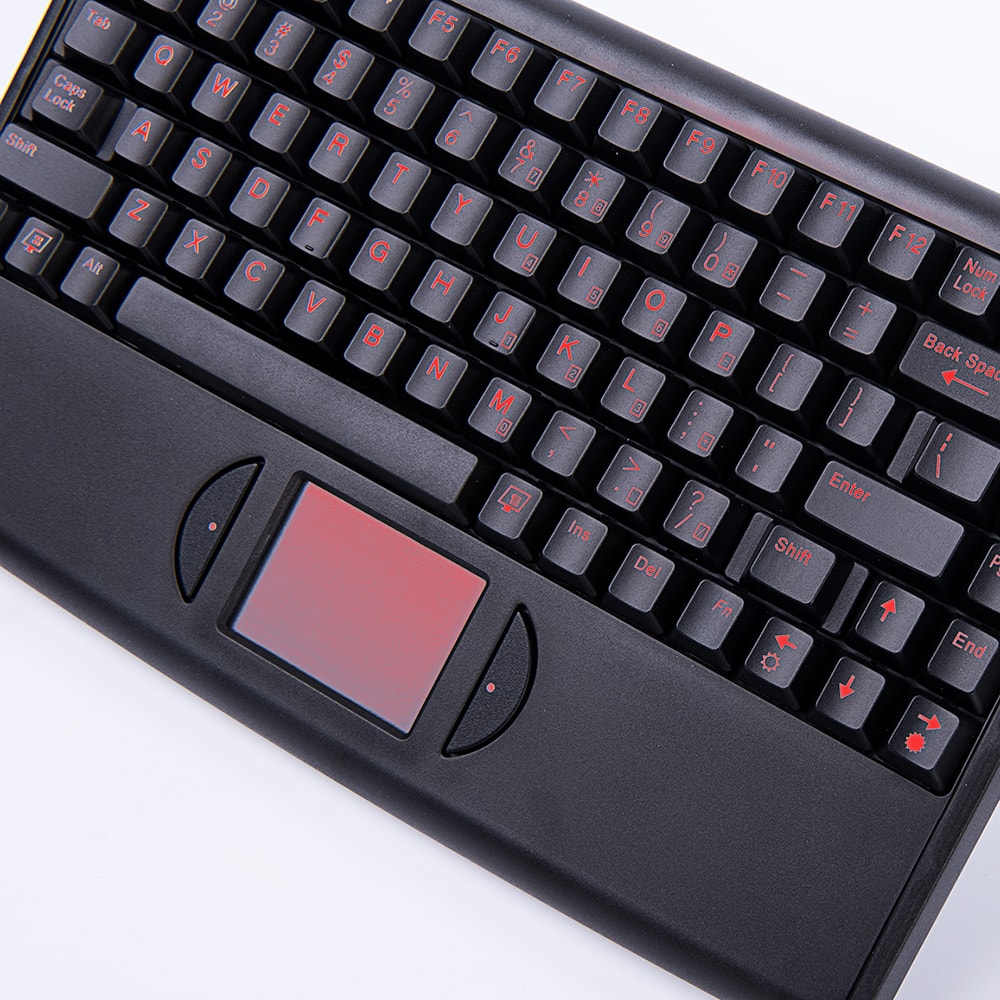

The MW820 offers users the advantage of back lighting on each key and also on the glide pad, making the unit suitable for all lighting conditions and operation in harsh and reduced lighting conditions. The integrated glide pad provides standard application navigation coupled with quick response mouse buttons for application control and selection. The keyboard also features Caps lock and Num lock activation indi-cation by changing the illuminated colour from red to green, allowing users to clearly see the current state of both keys. With the addition of PrehKeyTecs silicone membrane switch technology, the keyboard offers unparalleled reliability, with dust and fluid ingress protection.

Specification
Manufacturer or Brand PrehKeyTec
Mounting Format Car Mount, Desktop, Vehicle Mount, VESA
IP Rating IP54
Interface PS2, USB
Case Material ABS Polycarbonate
Function Keys 12 Keys
Backlight Adjustable
Certifications CE, RoHS compliant, Declaration of Conformity, EN 55022:2006 + A1:2007, FCC Part 15 Class B, UL 60950, EN 55024:1998, EN61000-4-2, DIN EN61000-4-3, MIL -STD 810E
Operating Temperature -30o C to +70o C (glide pad 0° C to +50° C)
Storage Temperature -40o C to 85o C
Shock Vibration MIL -STD 810E; Method 514.4 – Functional
Dimensions 200 x 24 x 320 (DxHxW)
Warranty 1 Year Limited Warranty
Lifetime > 10 Million Operations Per Key
Backlight Red LED by each key and glide pad surround 2 status LEDs (NUM and CAPS), illuminated green when “on”
Colour Black/Dark Grey
Compatibility Windows 7 and Above
Connectivity USB Cable
Dimensions 200 x 24 x 320 (DxHxW)
Flammability UL94-HB (optional V0, housing only)
Function Keys 12 Function Keys
Interface USB , PS2 Options available
Power <500 mA including back lighting
Product Weight 1.15Kg
Supply Current <500 mA including back lighting
Vibration MIL -STD 810E; Method 514.4 – Functional
  • Designed To Meet MIL-STD 810E
  • Integrated Touchpad
  • Integrated Adjustable LED Backlighting
  • Available As OEM Option
  • Ideal for In Vehicle Applications
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request
The PrehKeyTec MW820 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the PrehKeyTec MW820 Keyboard are listed below:-

  • Factory Floor
  • Forklift Vehicle
  • In Vehicle
  • Manufacturing Plant
  • Military Vehicles
  • Police Cars

These are just some of the applications for the PrehKeyTec MW820 Keyboard The potential applications extend further than those shown above. For further information about the PrehKeyTec MW820 Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the PrehKeyTec MW820 Keyboard to suit your requirements. These options include:

  • Custom Logo
  • Custom Macro
  • Custom Keycaps

If your application requires unusual or individual modifications not listed above for the PrehKeyTec MW820 Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The PrehKeyTec MW820 Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, PrehKeyTec MW820 Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
